Dimensions
| Builder |
Island Packet Yachts (USA) |
| Designer |
Robert Johnson |
| LOA |
35 ft |
| LWL |
28.58 ft |
| Beam |
11.5 ft |
| Displacement |
13,500 lb |
| Draft |
4.33 ft |
| Ballast |
5,950 lb |
| Ballast Material |
Lead |
| Hull Material |
Fiberglass |
| Keel |
Full cut-away |
| Rudder |
Hung rudder |
| Headroom |
6.33 ft |
Propulsion

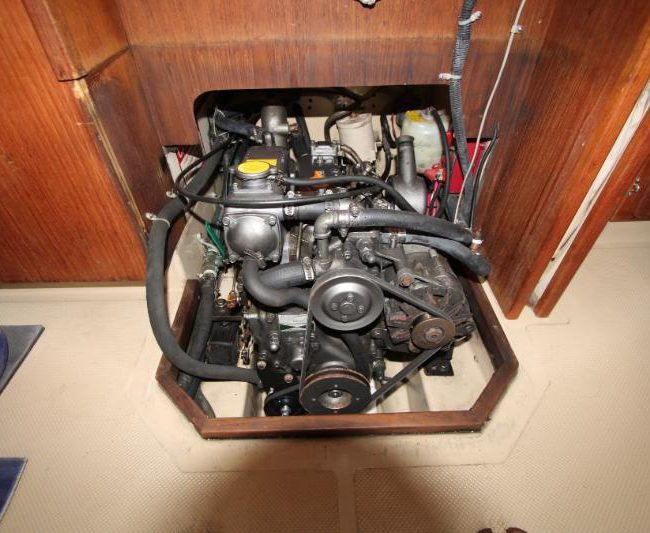

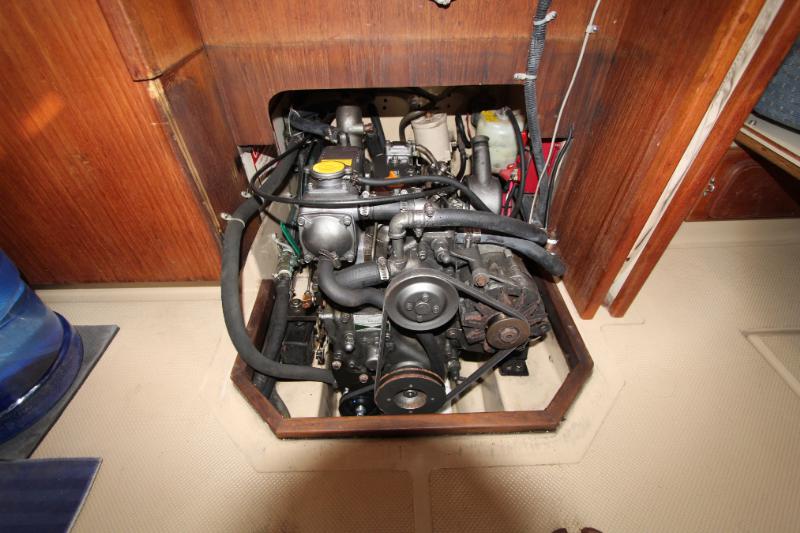

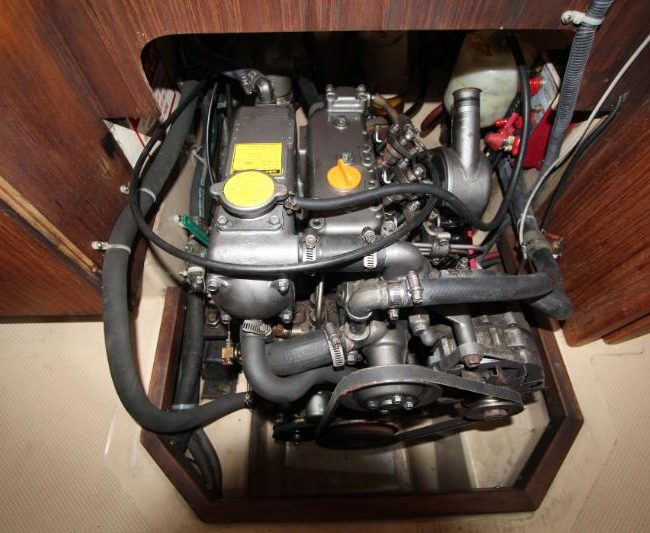

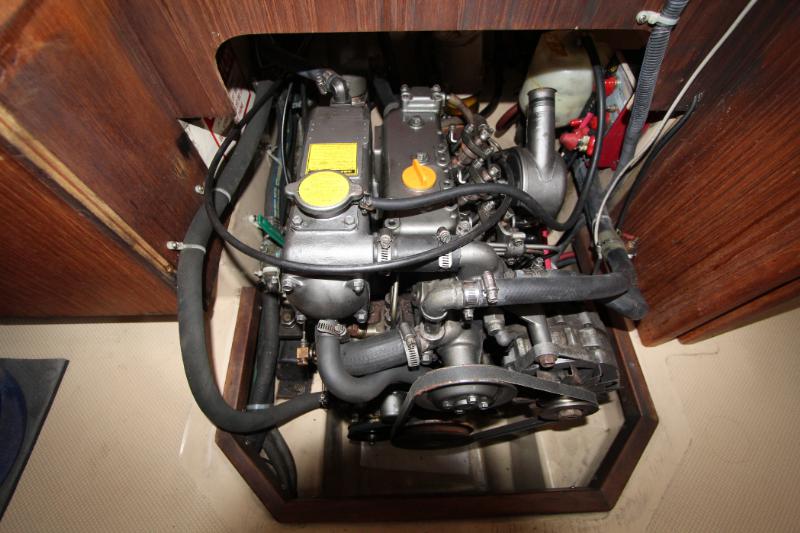

| Engine Make |
Yanmar |
| Engine Model |
3GM30F (#10585) with reduction gear and straight prop shaft |
| Engine Power |
27 hp |
| Engine Hours |
~4000 |
| Engine Type |
Inboard |
| Max Cruising Speed |
5.5 kn |
| Range |
350 nm |
| Engine Fuel |
Diesel |
| Propeller |
Autoprop H5 3-blade folding prop |
| Other |
Fuel and RPM gauges |
Tanks
| Fuel Tankage |
28 Gal. |
| Water Tankage |
85 Gal. (with gauge) |
| Holding Tankage |
15 Gal. |
Accommodations

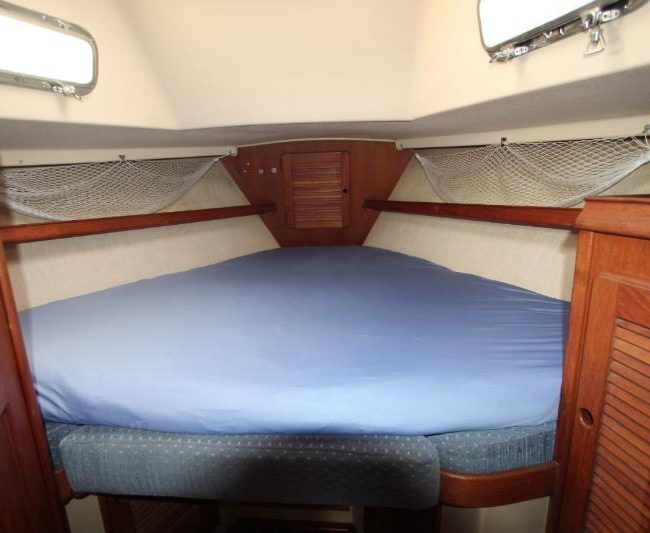

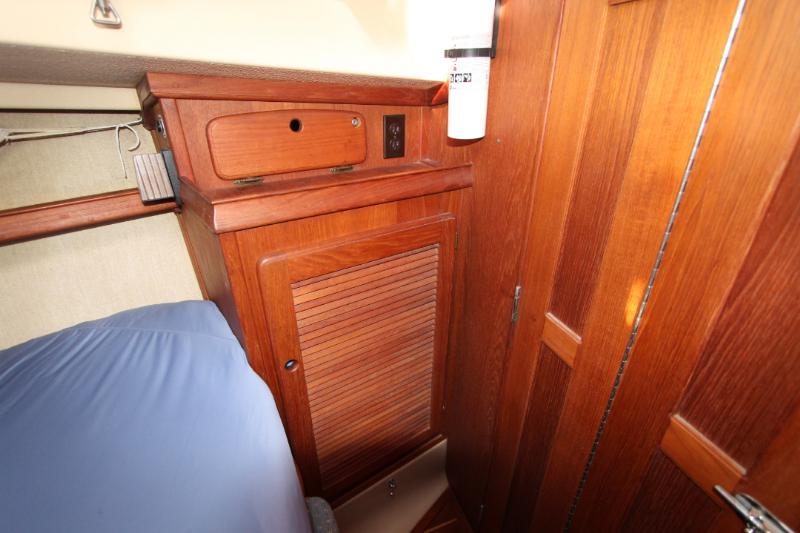

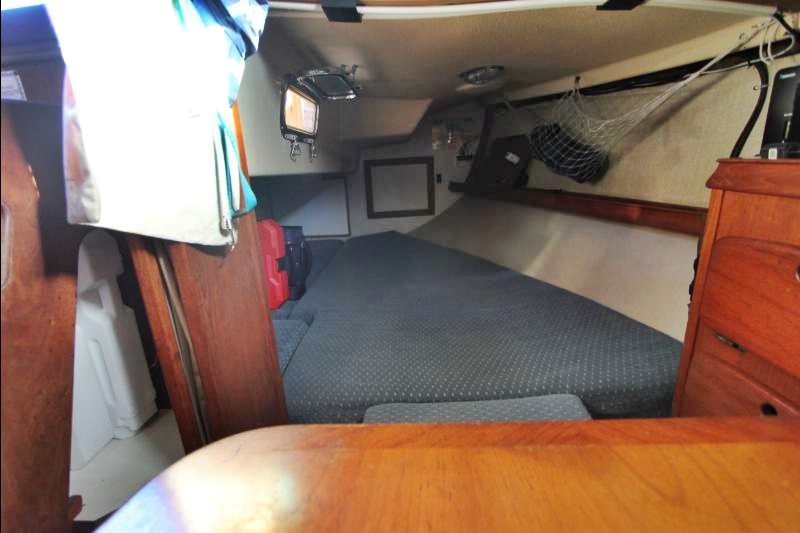

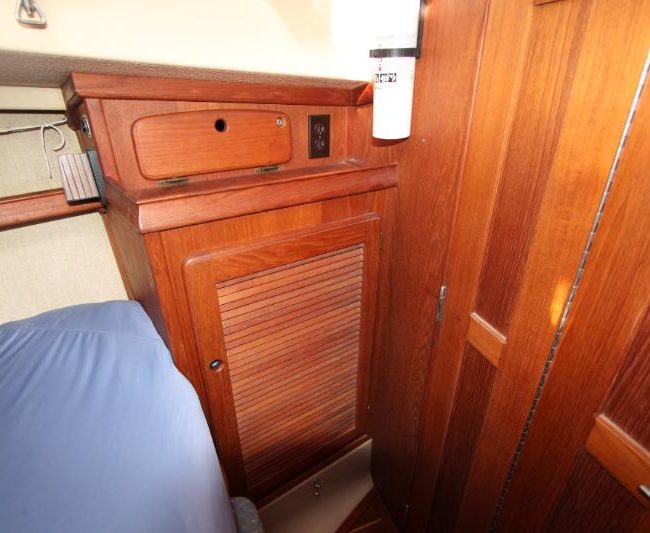

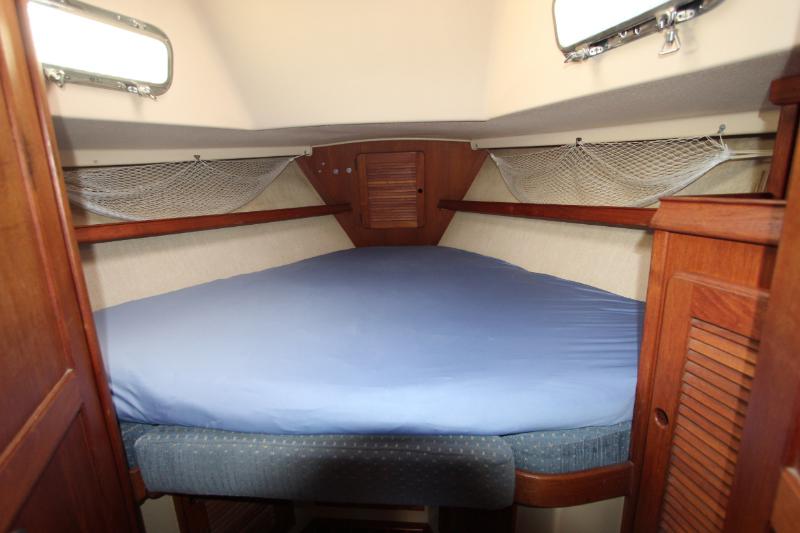

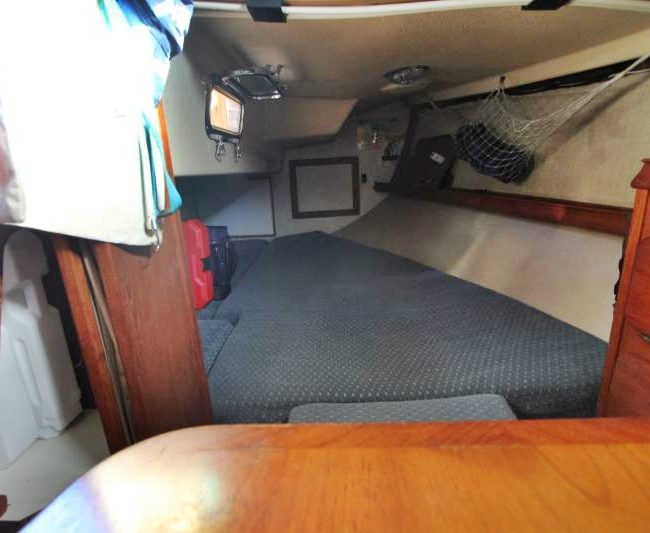

Starting in the forward stateroom, there is a comfortable V-berth for two with storage below the berth and access to the anchor locker. A large hanging locker is found to starboard. The cabin contains outboard shelving, accent lighting, two portlights, deck hatch, electrical outlets – AC and cigarette lighter type (12V) – and smoke/CO detector. Fans and an air conditioning vent also provide plenty of fresh air circulation.

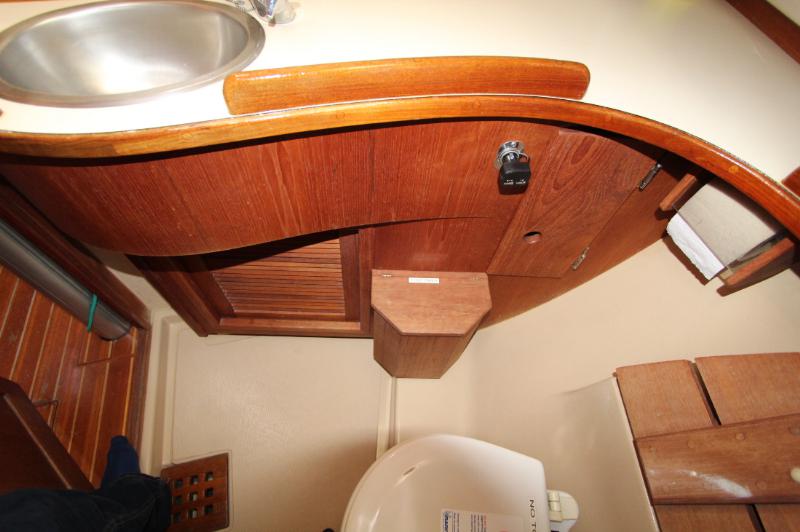

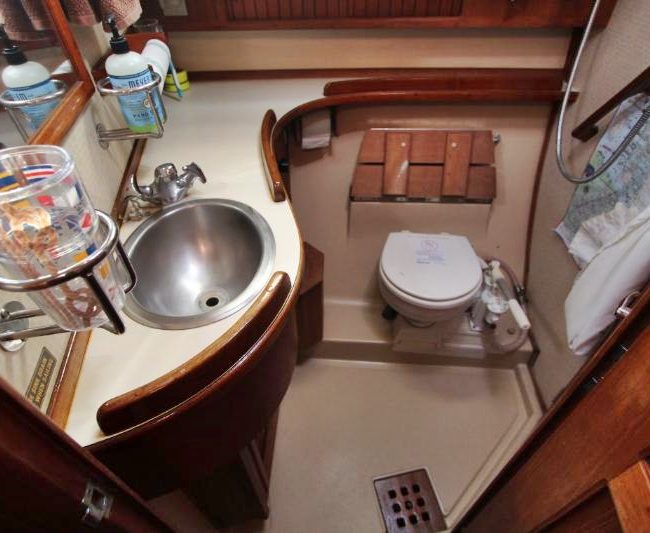

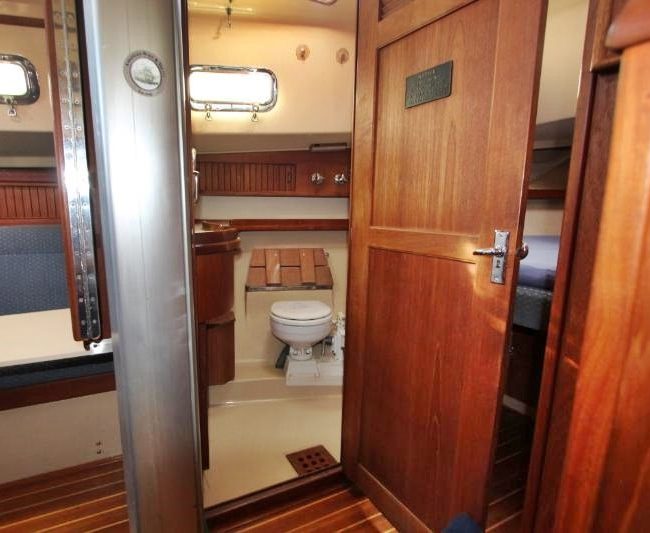

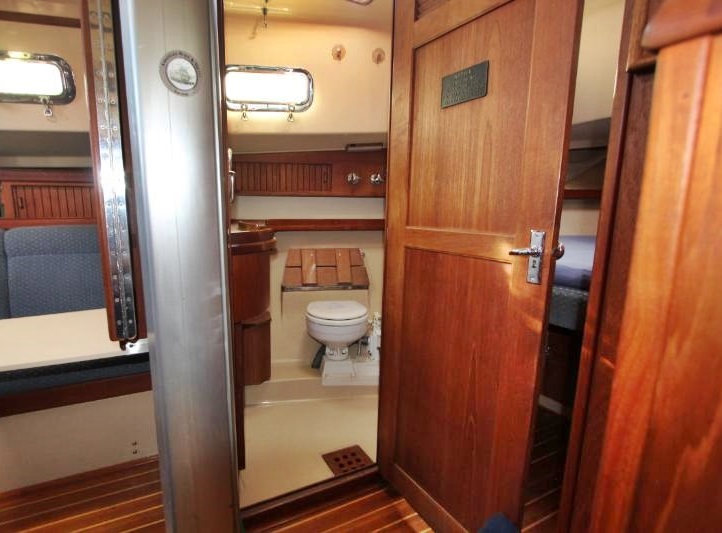

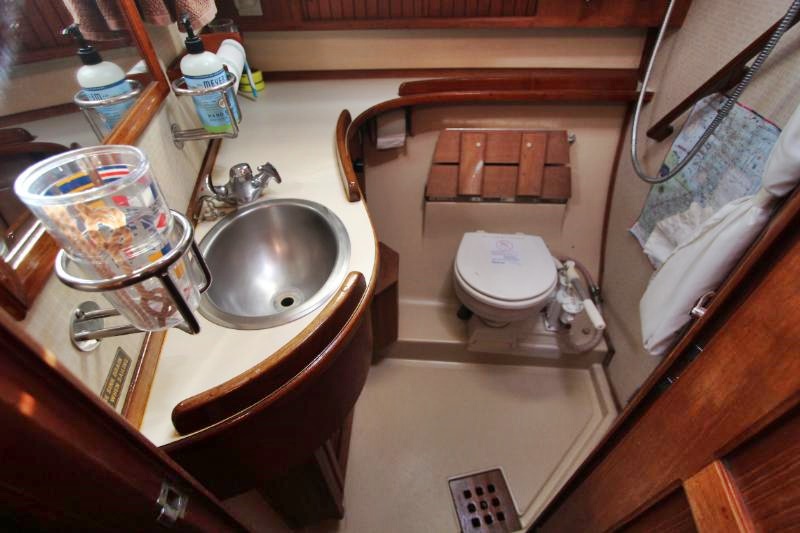

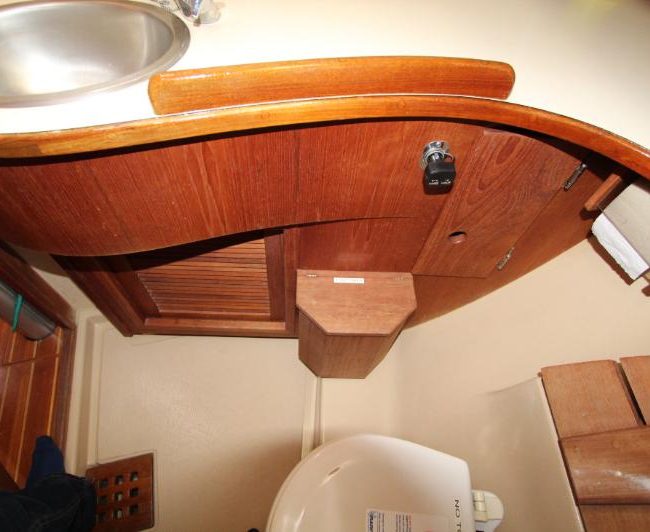

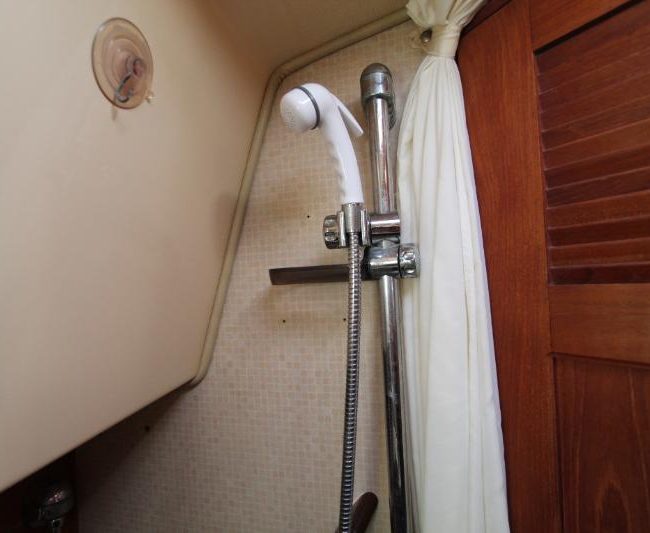

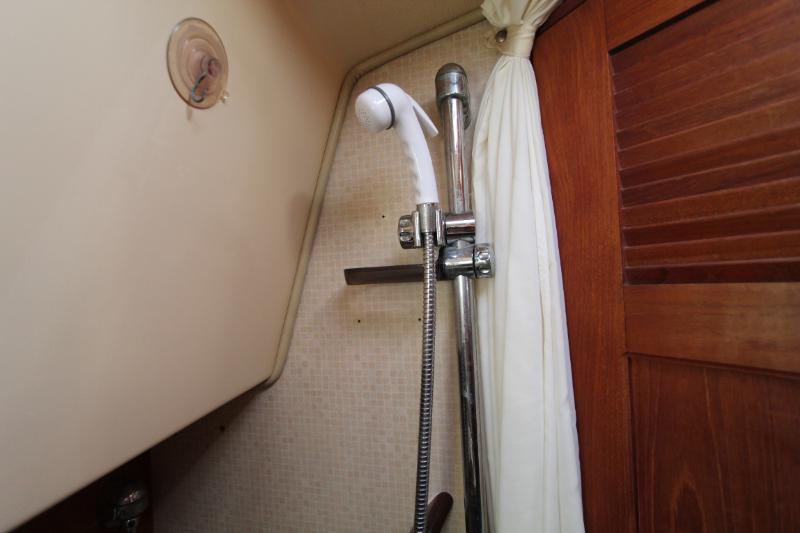

Moving aft and to port is the head, which is accessible from both the V-berth and the main salon. The shower and stainless-steel sink utilize a freshwater system with an air conditioning vent, port window and hatch. The showerhead is wall-mounted on a solid stainless-steel bar. The head includes a Raritan manual commode with integrated shower seat, ample counter space, shower curtain, mirror, sliding cabinetry, towel rack, teak handrail, and electrical outlets (AC and 12V type).

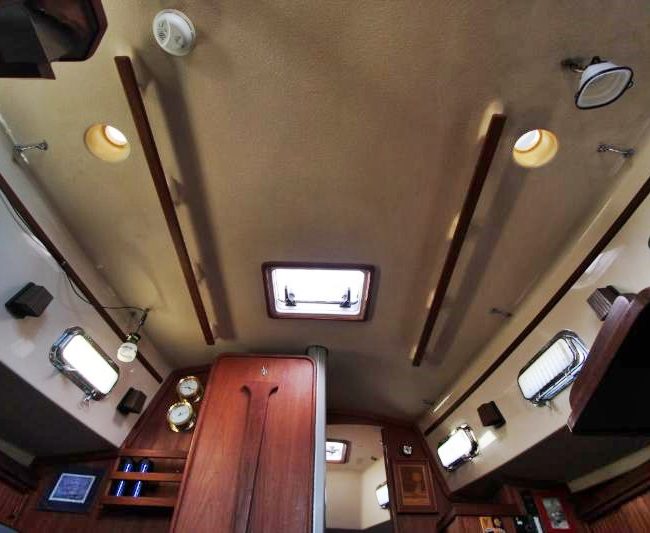

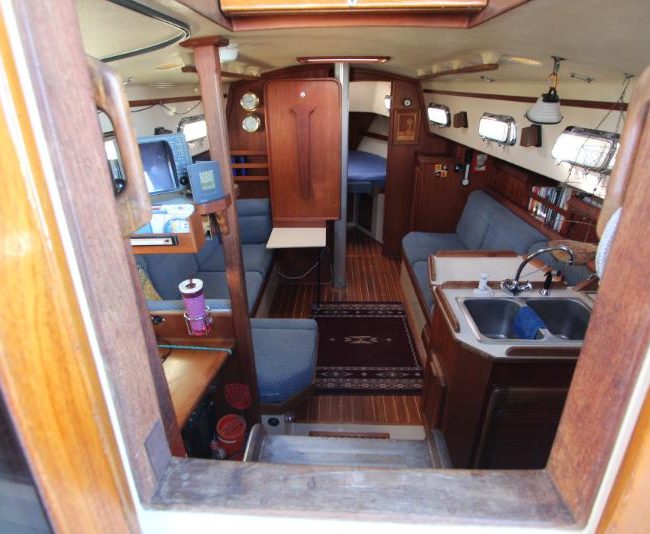

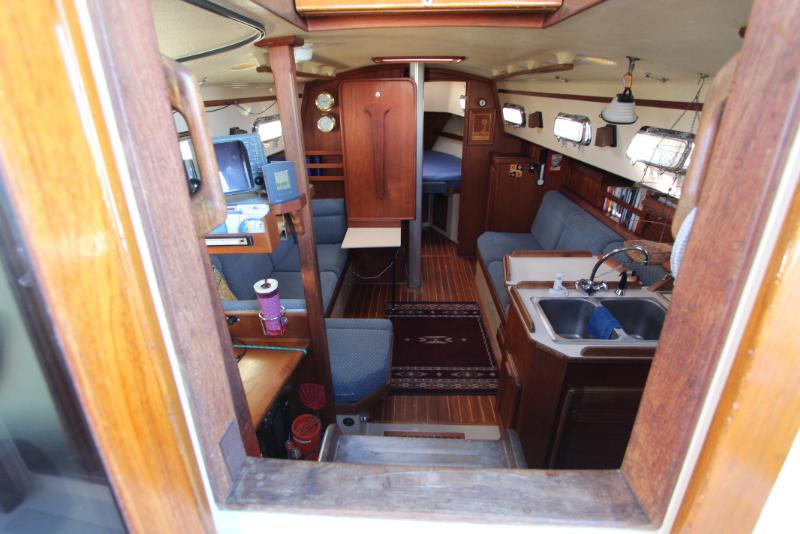

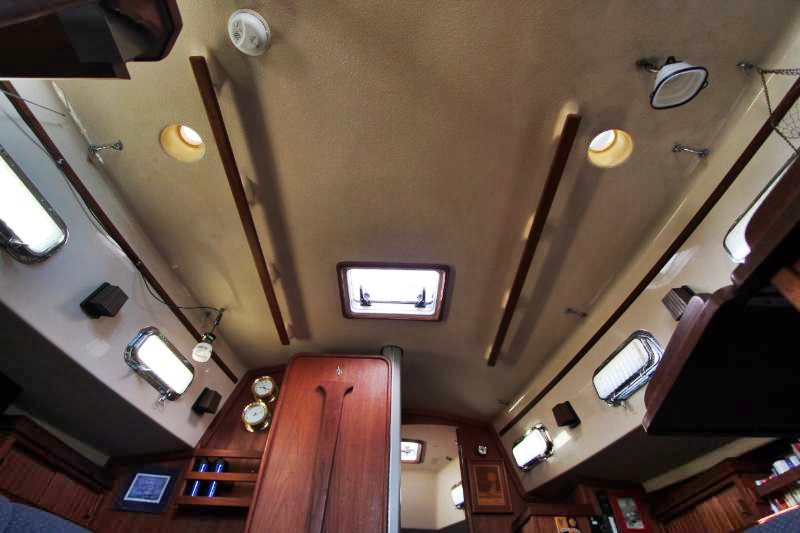

The main salon is large and comfortable with two settees: a single bench-style settee to starboard and an L-shaped settee that converts into a double-berth port side. There is a bulkhead mounted table which folds out to seat 6. There is also a fold-down table mounted behind the galley sink that provides an additional eating and working surface. Beneath and behind the settees you’ll find abundant storage, recessed bookshelves, as well as a storage locker beside the starboard settee. Two ceiling-mounted wooden handrails run the length of the salon for stability and security of movement while underway. Ample portlights, hatch, and ventilation is provided.

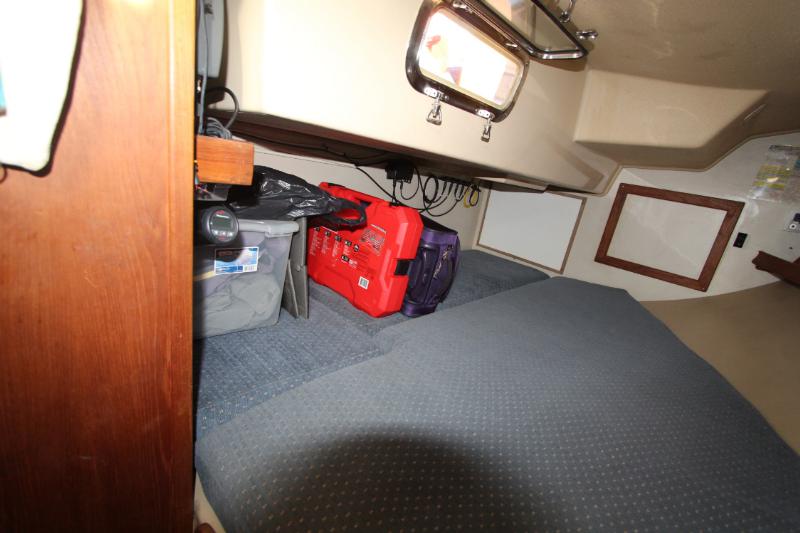

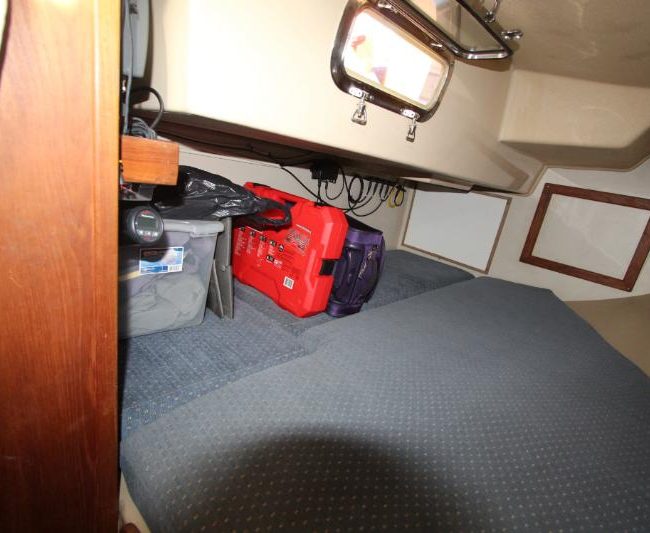

The galley is to starboard of the companionway entrance, with a 2-burner propane stove top with steel safety bar, microwave, deep double stainless-steel sink, and top loading fridge/freezer allow for easy meal preparation when on shore power. The navigation station is to port with a huge quarterberth behind. Storage abounds below the berth, as well as in the nav station.
Main Salon / Nav Station / Quarter Berth
| Seating |
L-shaped settee on port (converts to double berth)
 Single settee on starboard  |
| Tables |

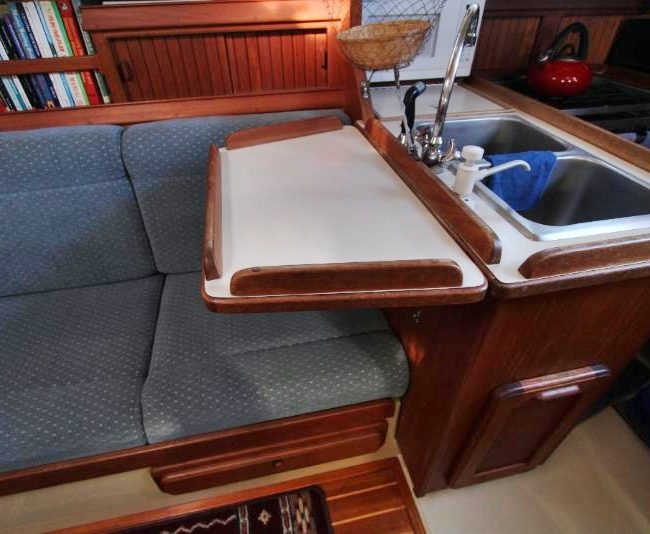

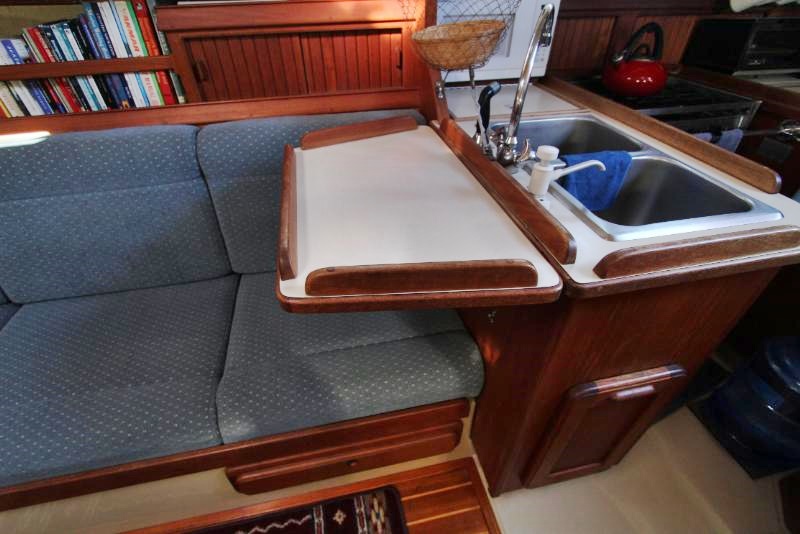

Small retractable galley table
 Fold-up salon table (with shelving behind)
Starboard custom computer/breakfast table with mounts below the main table
Nav table (with shelving)  |
| Storage |
Storage below and behind port settee

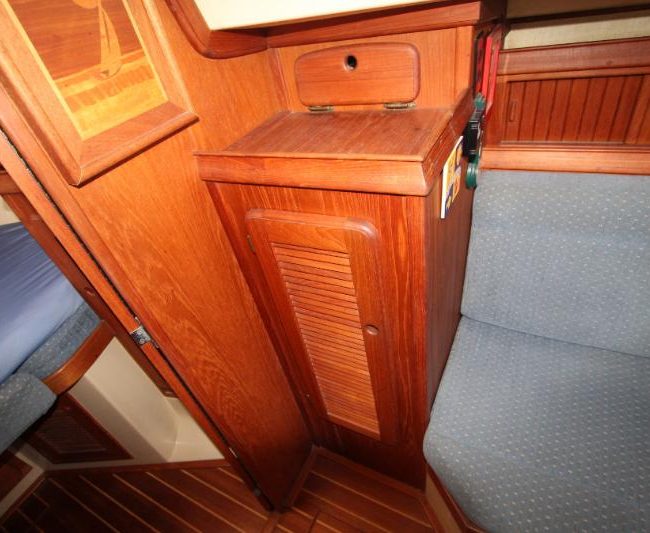

 Hanging locker with counter space above
Outboard sliding cabinetry and shelving  |
| Lights / Electrical |

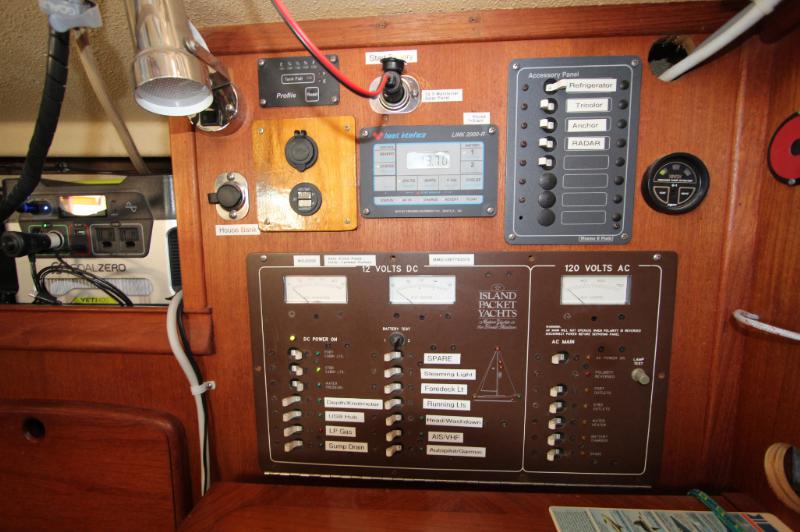

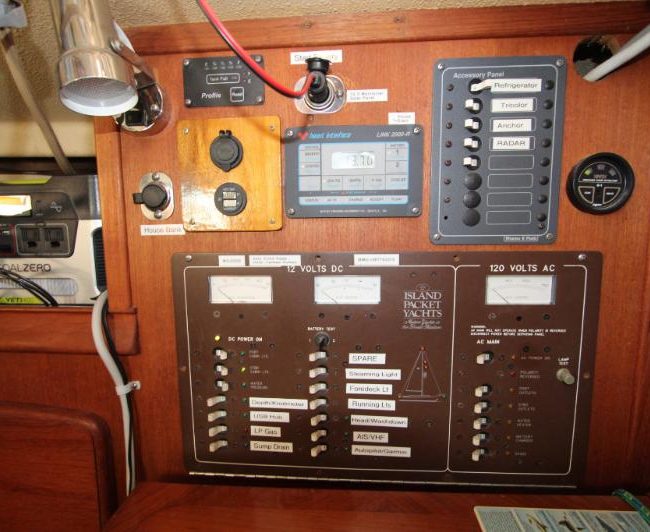

Island Packet Yachts 12V DC and 120V AC electrical panels
 AC outlets and cigarette lighter type (12V)
Lamp
LED overhead and wall-mounted lighting
Accent lights  |
| Other |
Weems & Plath clock and barometer
 Portable fans
Accordion-type folding companionway door (for aft quarter berth)  |

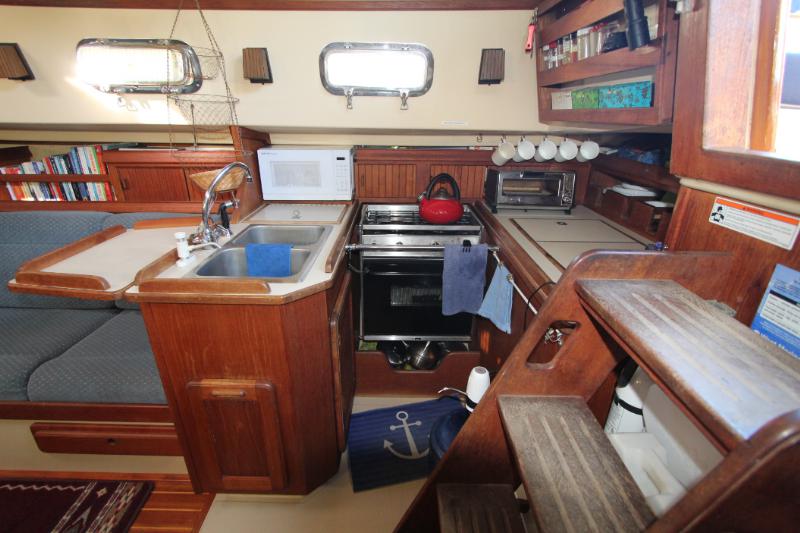

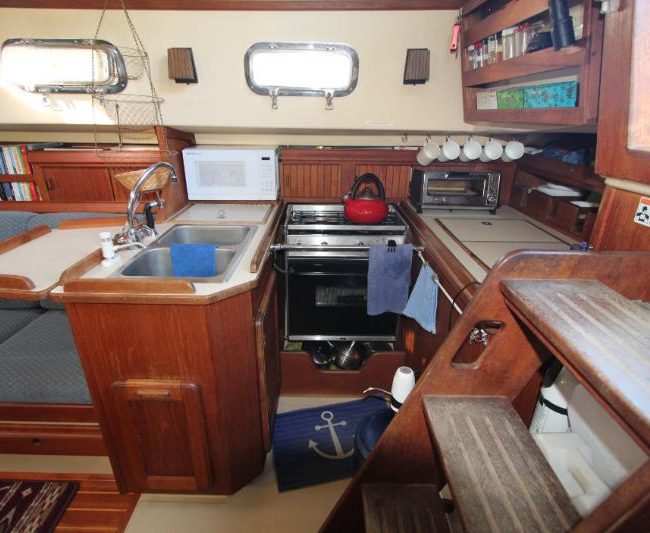

Galley
| Refrigerator / Freezer |
Adler-Barbour Cold Plate top loading refrigerator with freezer compartment |

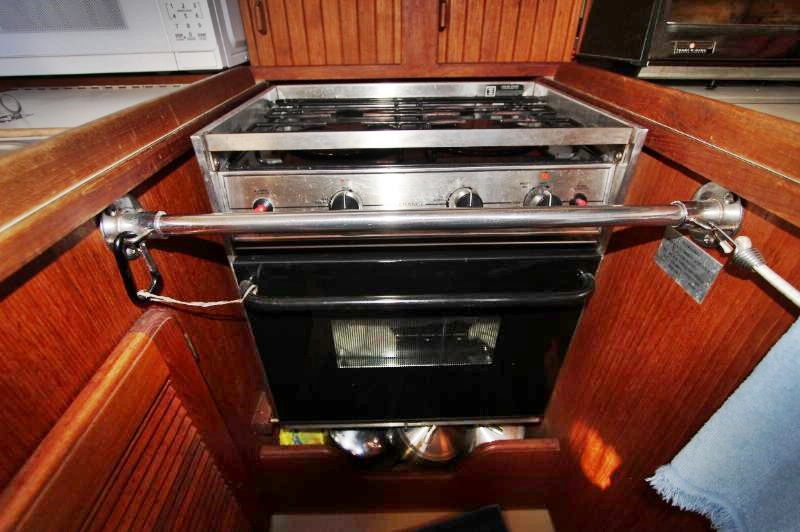

| Stove |

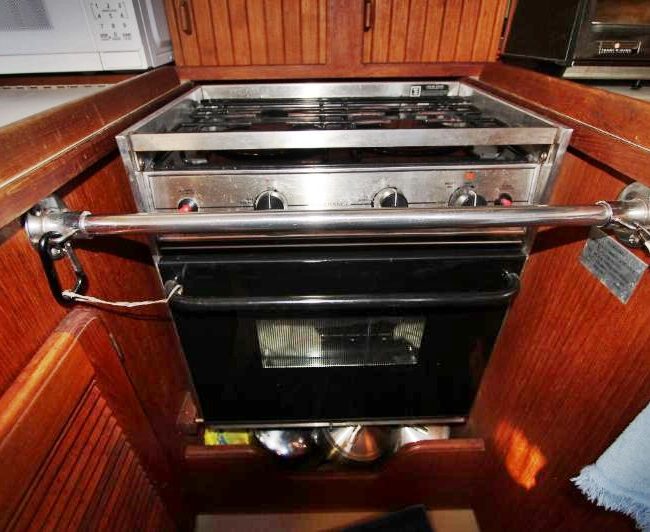

2-burner Hillerange propane stove top with oven and safety bar |

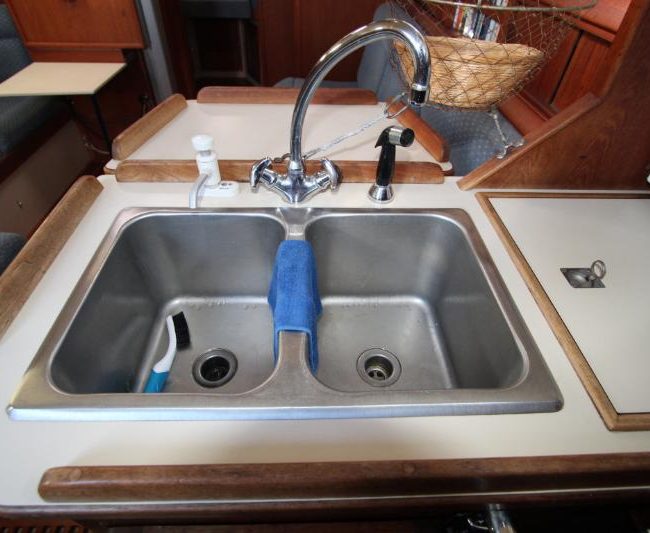

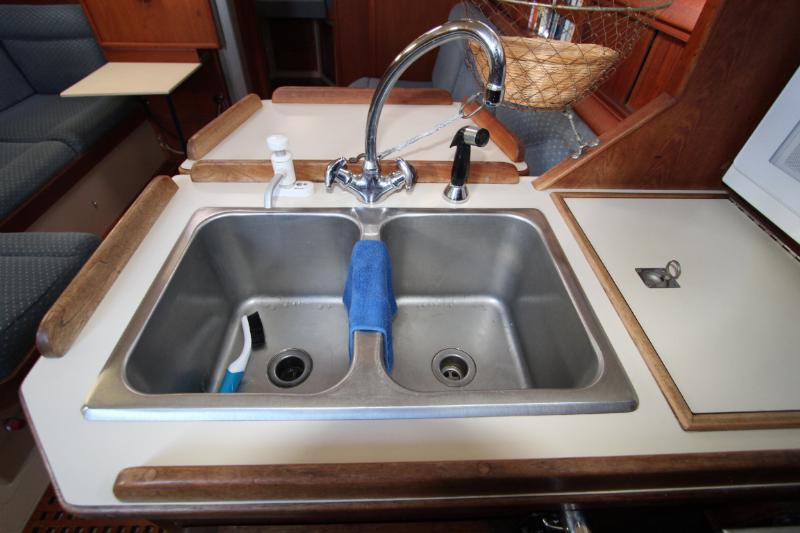

| Sink |
Deep, double, stainless steel |
| Microwave |
Yes |
| Water System |
Water spigot with gusher hand pump |
| Other |
Top-loading dry storage
 Outbound shelving, cabinetry, and storage
AC electrical outlets
Toaster Oven  |
Electronics

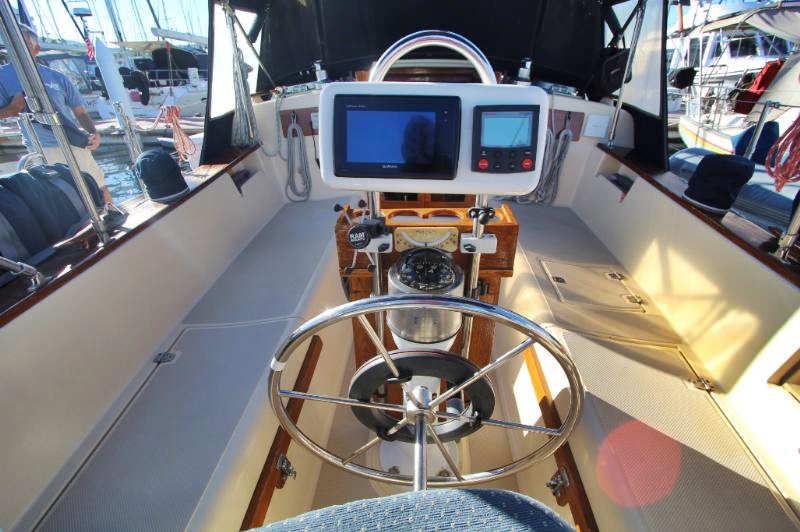

| Chartplotter |

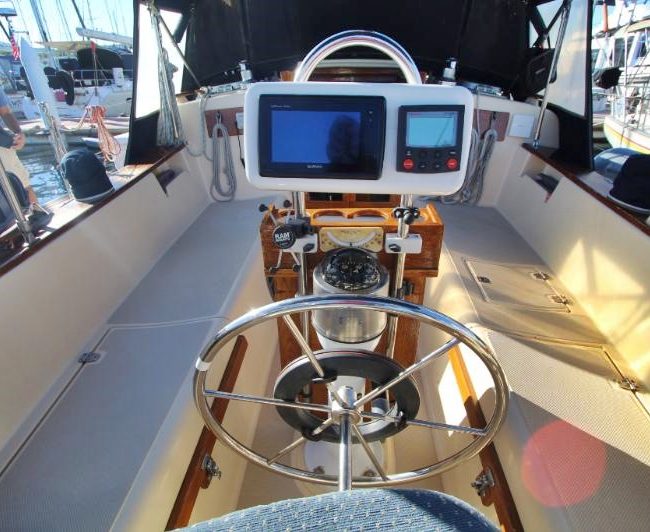

Garmin 741S Chartplotter on NMEA 2000 network (controls mounted at helm via NavPod) |
| Radar |
No |
| AIS |
Garmin AIS 600, integrate with chartplotter via NMEA 2000 |

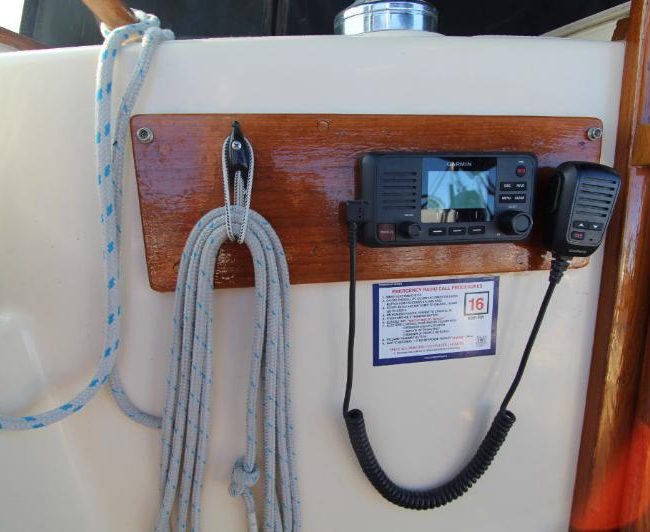

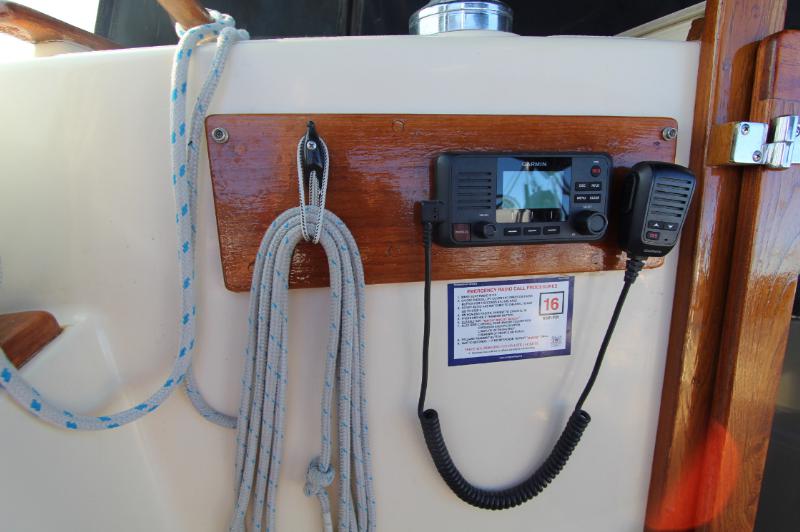

| VHF |
Garmin 110 VHF radio, integrated with chartplotter via NMEA 2000 |
| Autopilot |
CPT, installed 2024 (controls mounted on port side support tube)
 Raymarine ST4000 wheel autopilot (spare/backup; control wiring left in place at helm NavPod)  |
| Compass |
Mounted on binnacle |
| Depth Sounder |
Airmar through-hull depth sounder, integrated with chartplotter via NMEA 2000 |
| Wind Speed & Direction |
Garmin G-wind wind indicator on mast, integrated with chartplotter via NMEA 2000 |
| Knot Meter & Log |
Raymarine knot-meter and depth sounder (stand alone, mounted on coach top) |
Electrical
| Batteries |
House: x4 Lifeline Group 27, 100Ah AGM [new in 2019]
 Start: Lifeline Group 27 AGM [new in 2018]  |
| Battery Switches |
PSR Switch for house bank (via alternator)
 Battery panel switch  |
| Battery Monitor |
Heart Interface Link 2000-R |
| Electrical System |
12V DC, 120V AC |
| Interior Lighting |
12V |
| Battery Charger |
Original battery charger on start battery |
| Smart Regulator |
Yes |
| Solar Panels |

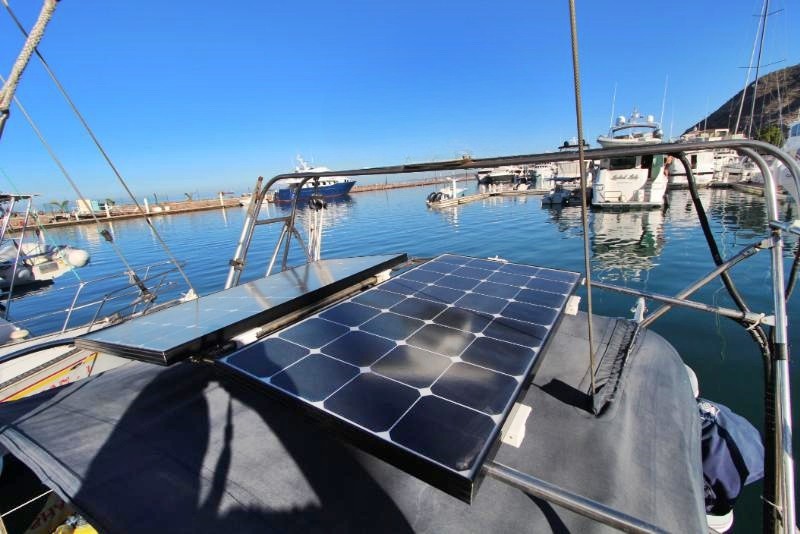

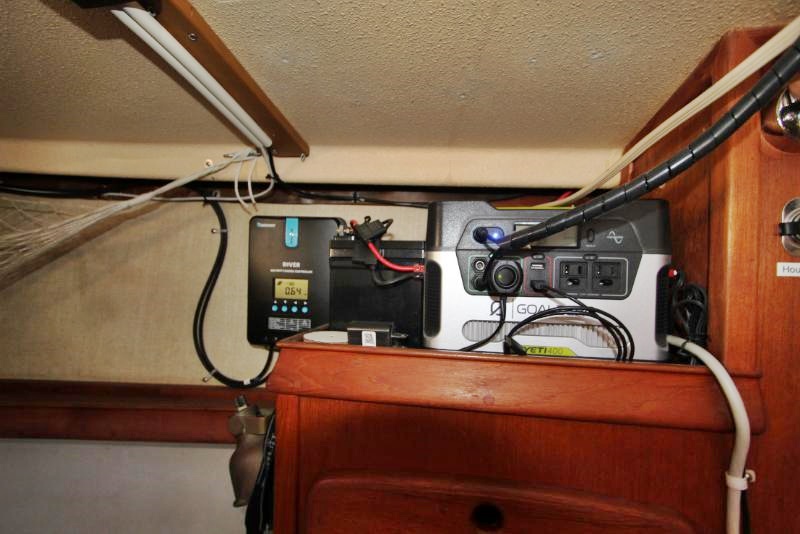

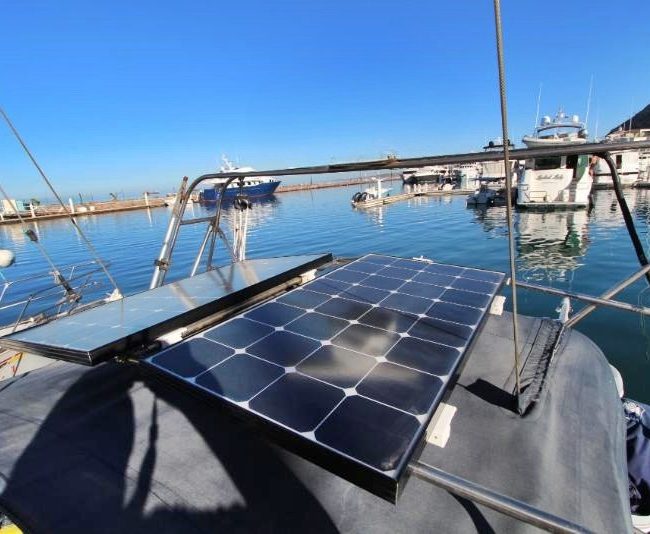

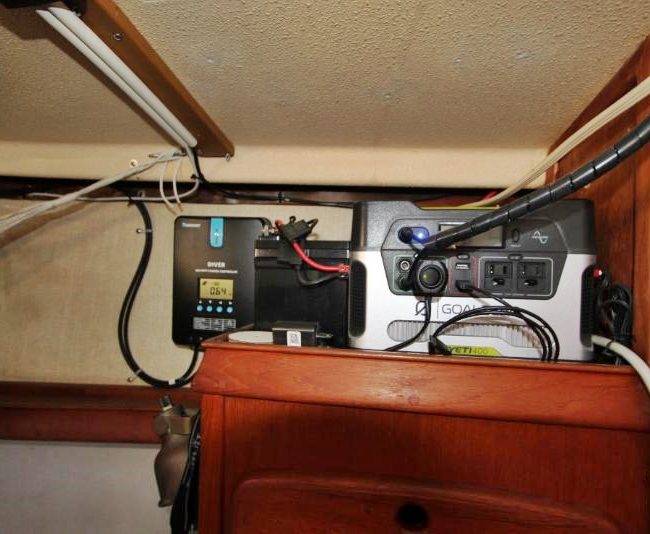

Renogy panels (2 x 175 W) and Renogy 40A charge controller (expandable)
 Solar generator with panel
Small solar panel to trickle charge the starter battery  |
| Dockside Cables |
30A Shore Power outlet and Dockside electrical cable |
| Alternator |
Balmar ARS-5 regulator on 120A alternator |
| Generator |
Custom tow-behind generator |
Sails
| Main |
North Sails NPC Cross-cut NorDac partial-batten Dacron with three reefing points [new in 2019]
 Mainsail cover
Jiffy single-line reefing system  |
| Jibs |
Furling 130 Genoa, North Sails NPC Cross-cut NorDac [new in 2019]
 Furling Staysail, North Sails NPC Cross-cut NorDac [new in 2019]  |
| Sail Type |
Dacron, Cruise-equipped |
| Spinnaker |

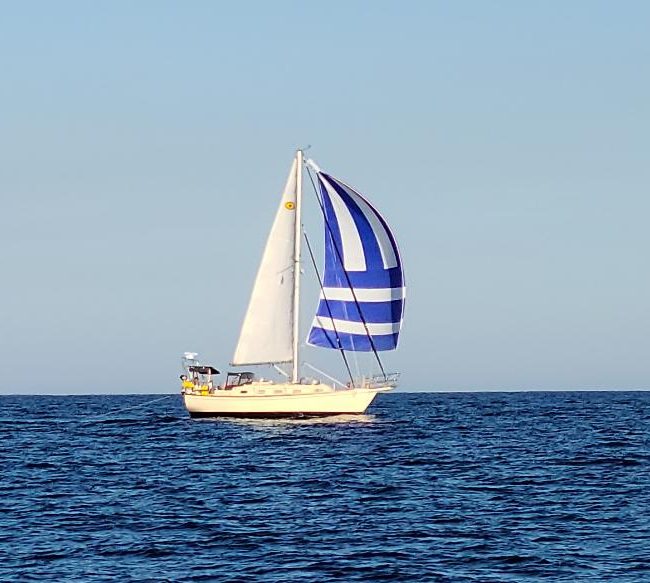

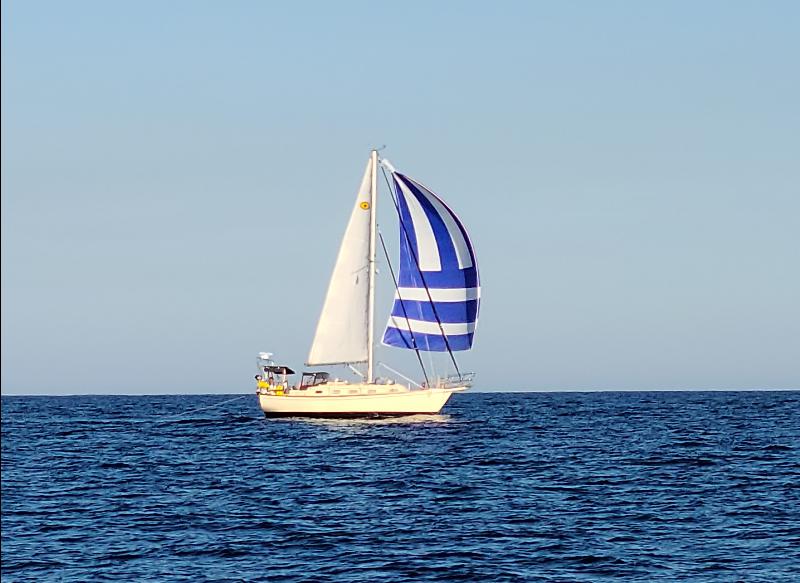

Asymmetric with stuffing sock
 Folding pad-eyes for spinnaker sheet turning blocks  |
| Mainsheet Traveller |
Yes |
| Lazy Jacks |
Yes, Dyneema |
| Roller Furling |
Harken, for Genoa and Staysail |

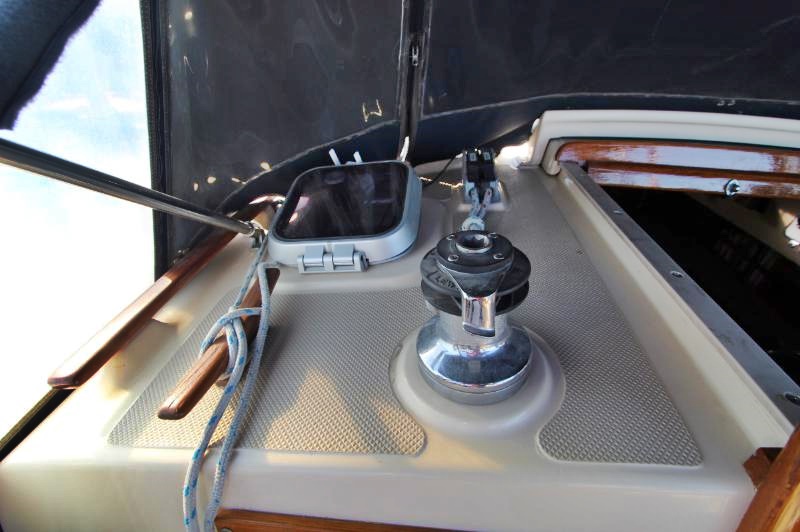

| Winches |

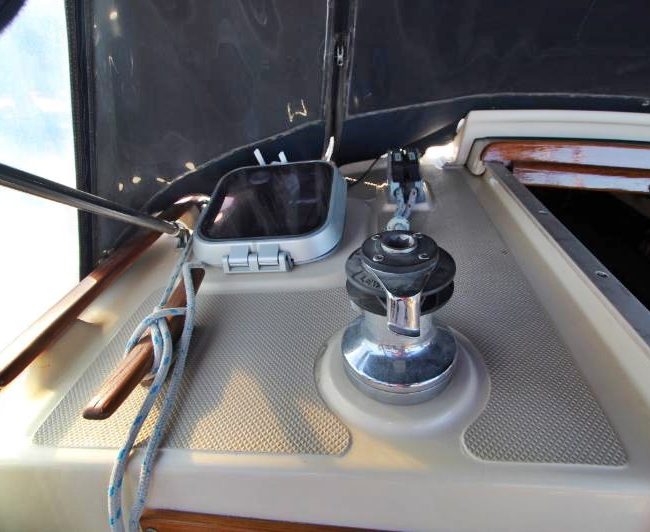

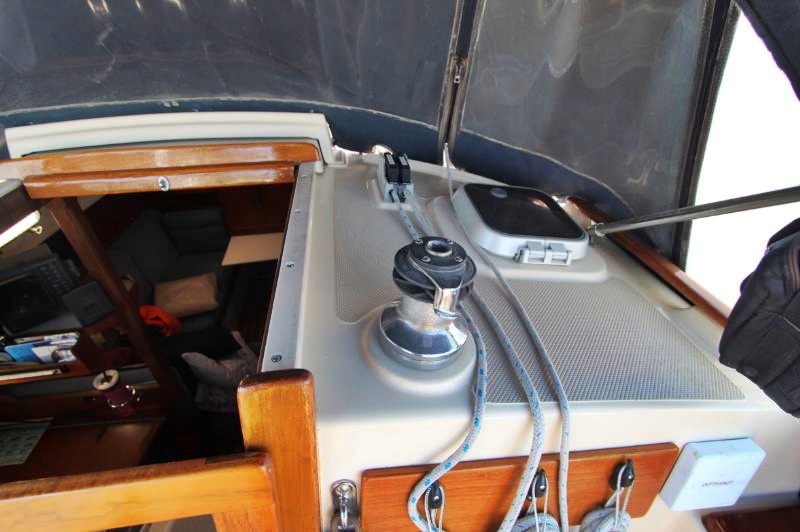

Two cabin top Lewmar #16 self-tailing winches (serviced in 2022)
 Two Lewmar #40 self-tailing jib winches (serviced in 2022)  |

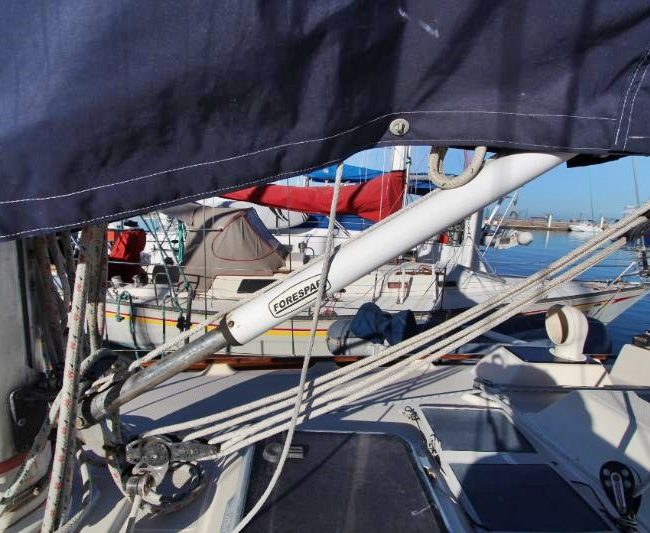

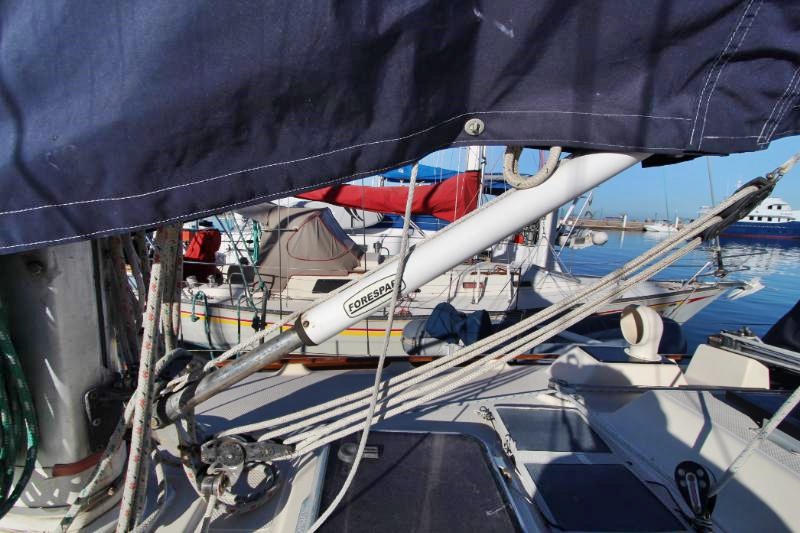

| Boom Vang |
Forespar Rigid |

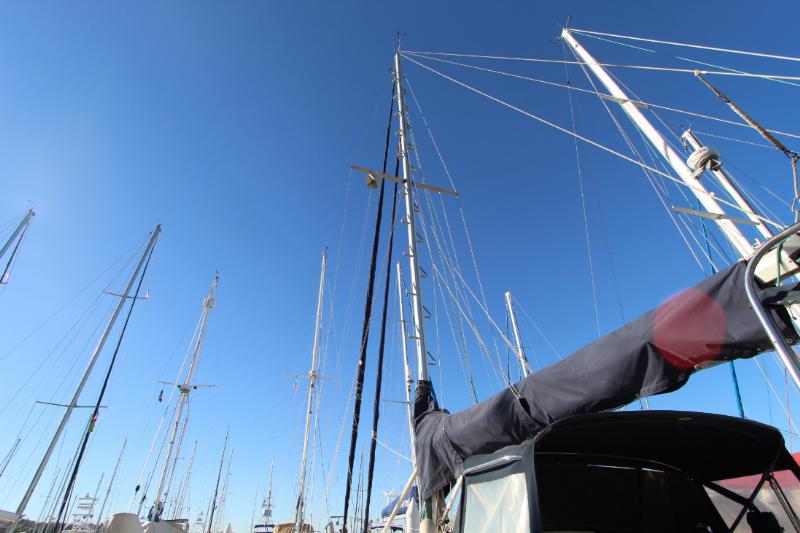

| Mast |

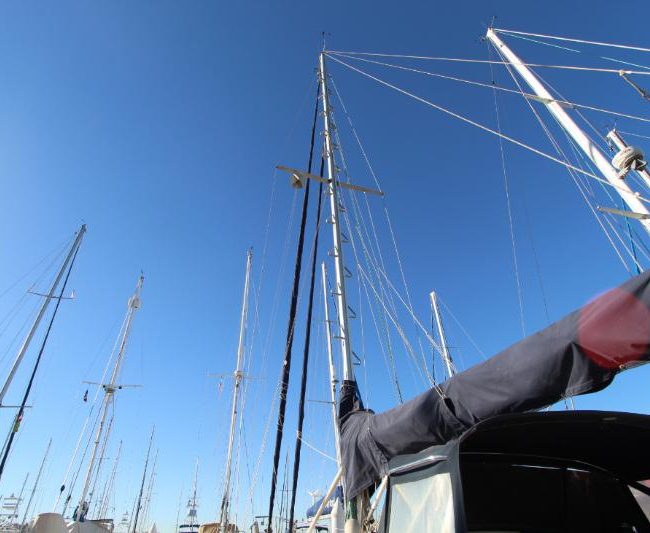

Aluminum, keel-stepped with mast steps |
| Standing Rigging |
Wire |
| Lines Led Aft |
Yes |
| Backstay |
Yes, with adjuster |

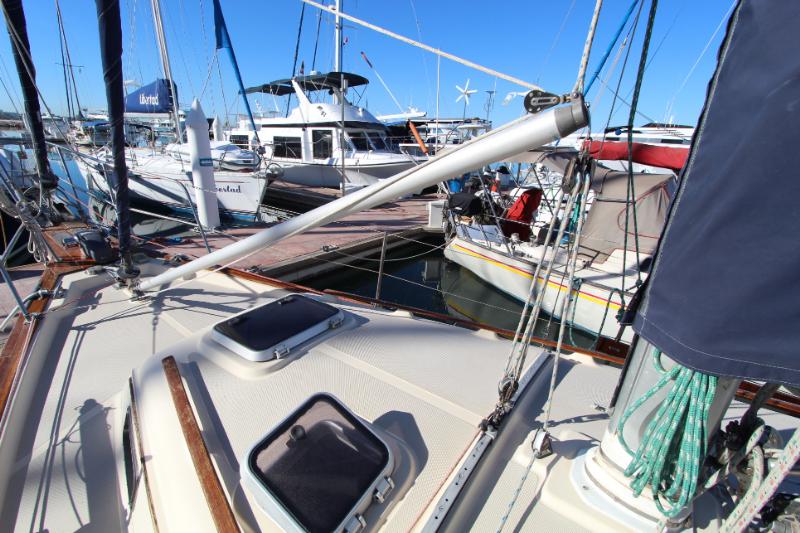

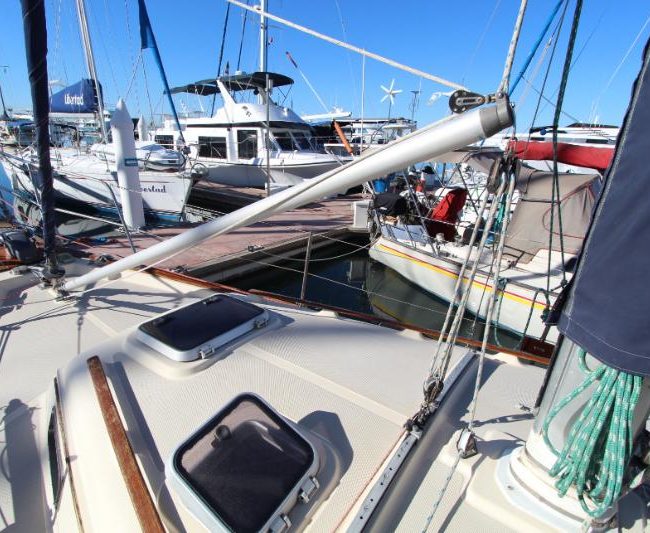

| Whisker Pole |
Yes, mast-mounted |
| Other |
Line organizers on coach top |

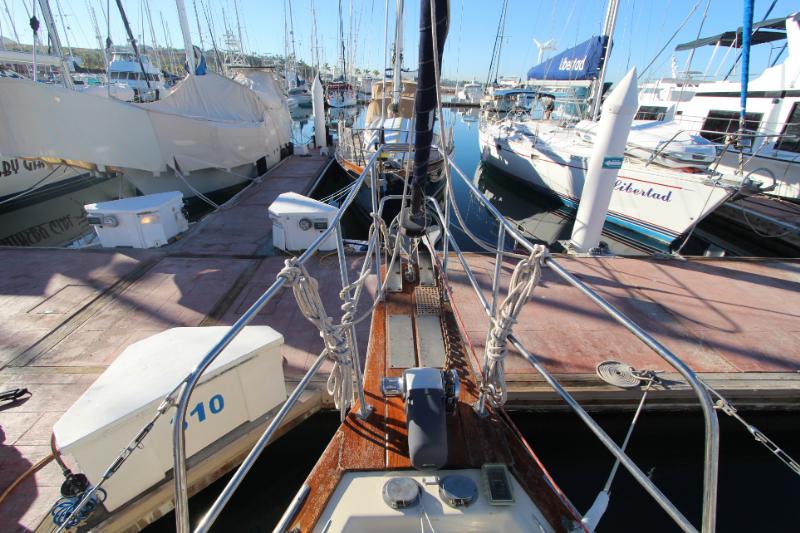

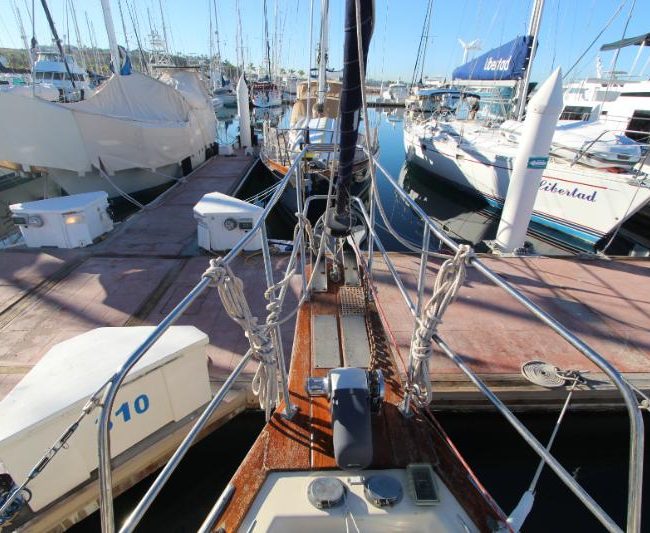

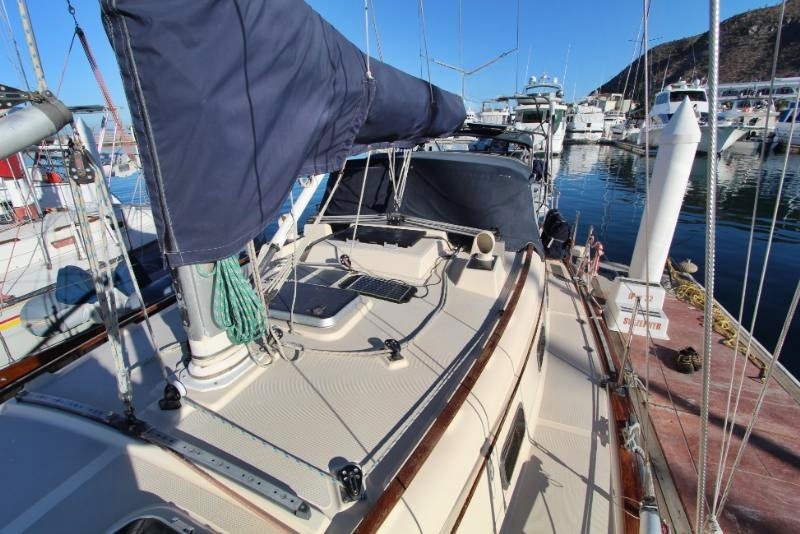

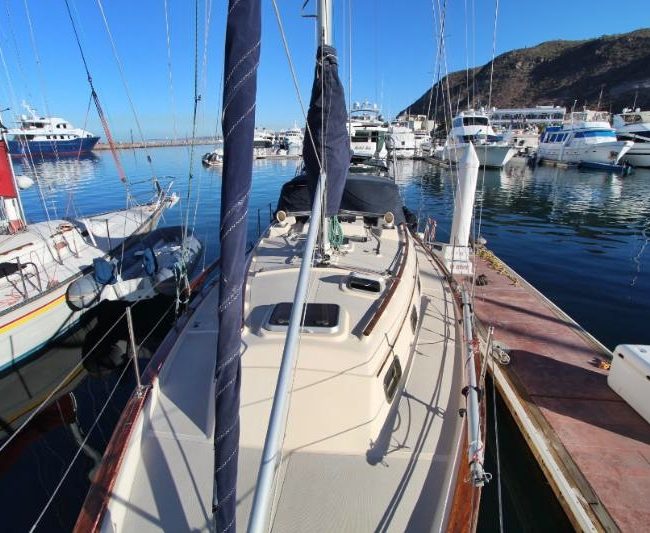

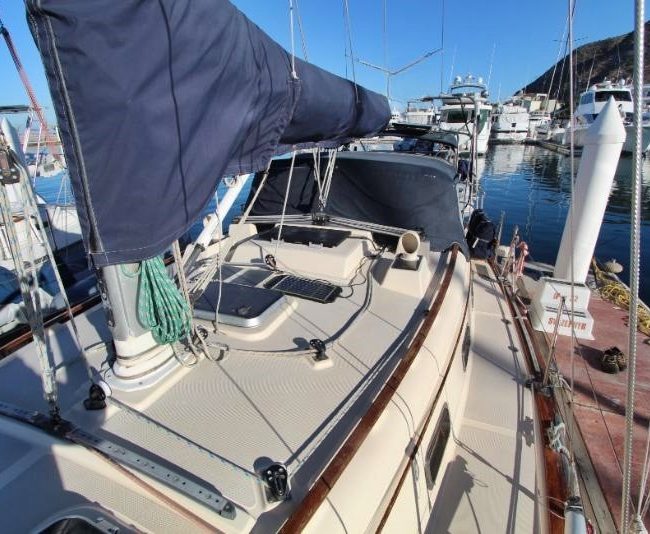

Deck
| Anchors |

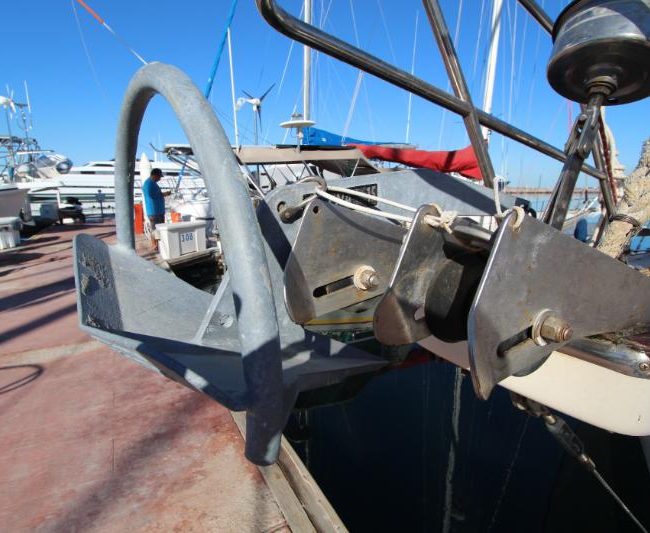

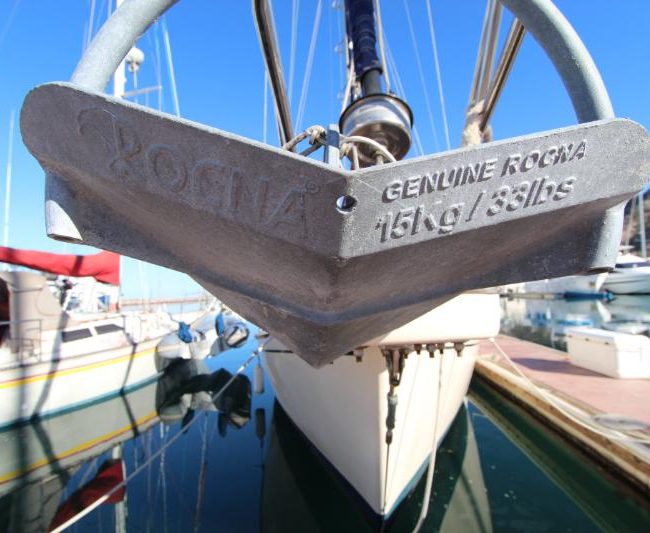

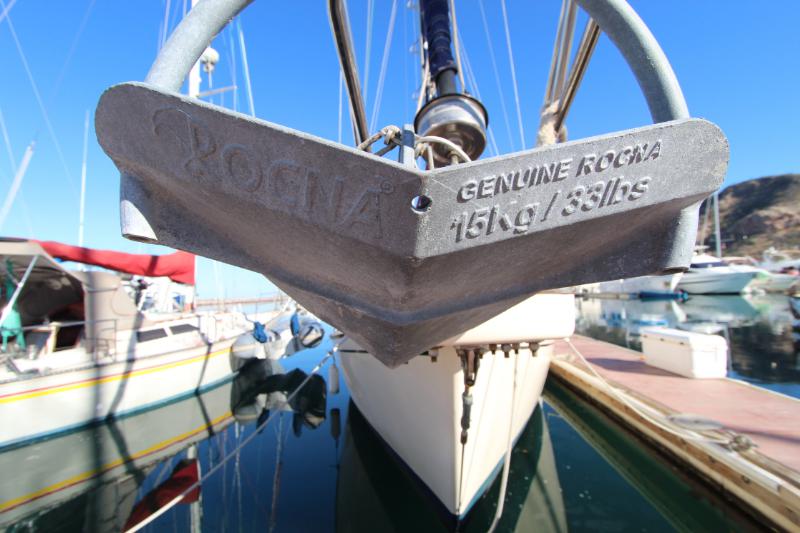

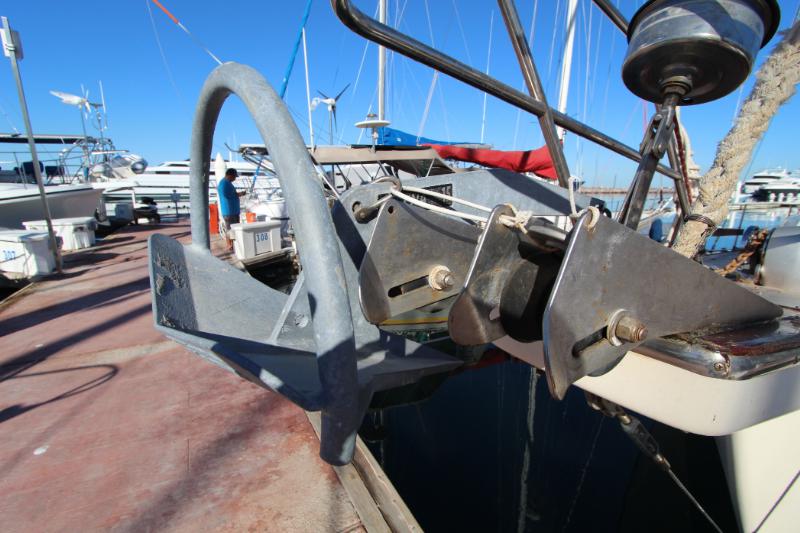

ROCNA 15 on 200 feet of 5/8 G4 chain
 35 lb CQR anchor
Small Danforth kedging anchor on stern with 150 ft rope rode
6 ft diameter Para-Anchor on 300 ft of 1” rope rode  |

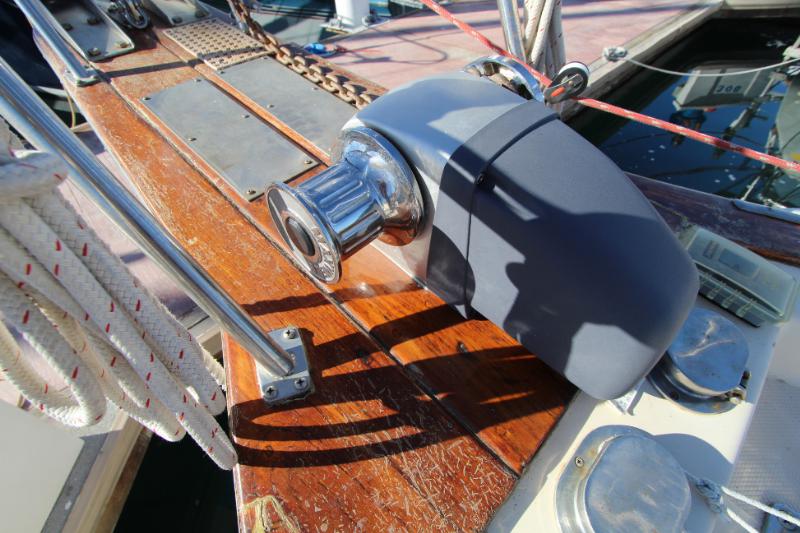

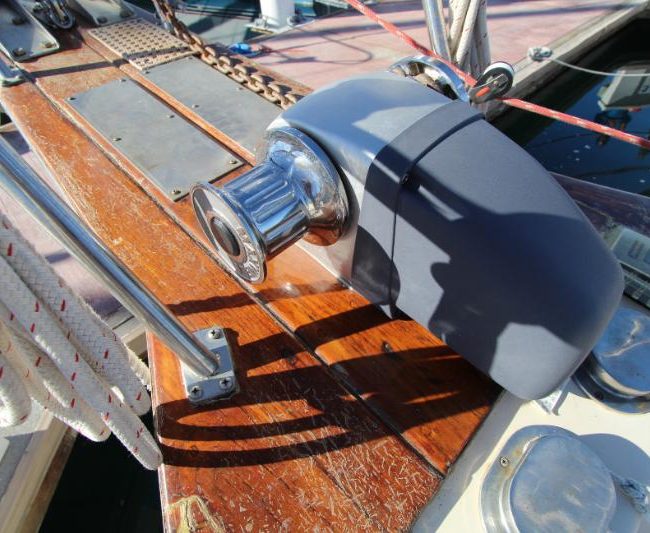

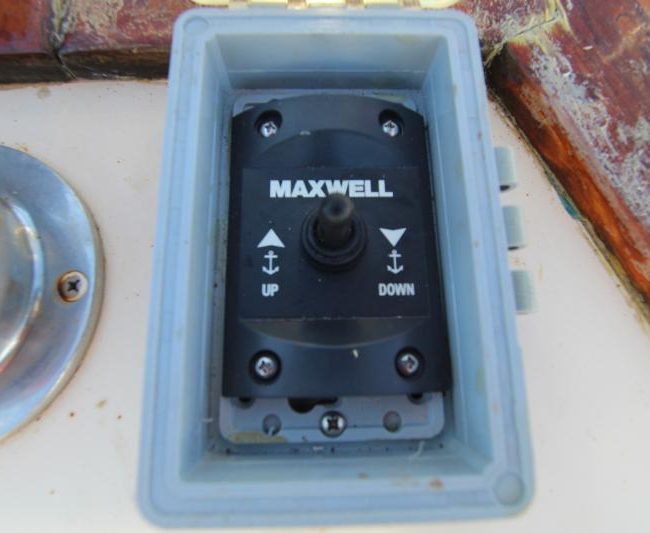

| Windlass |

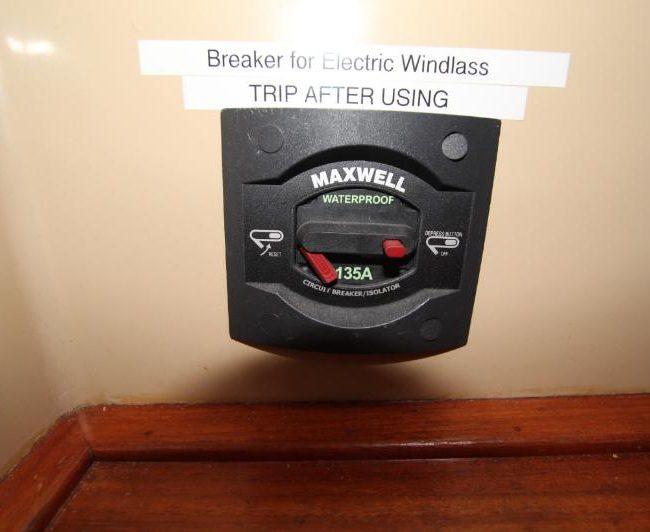

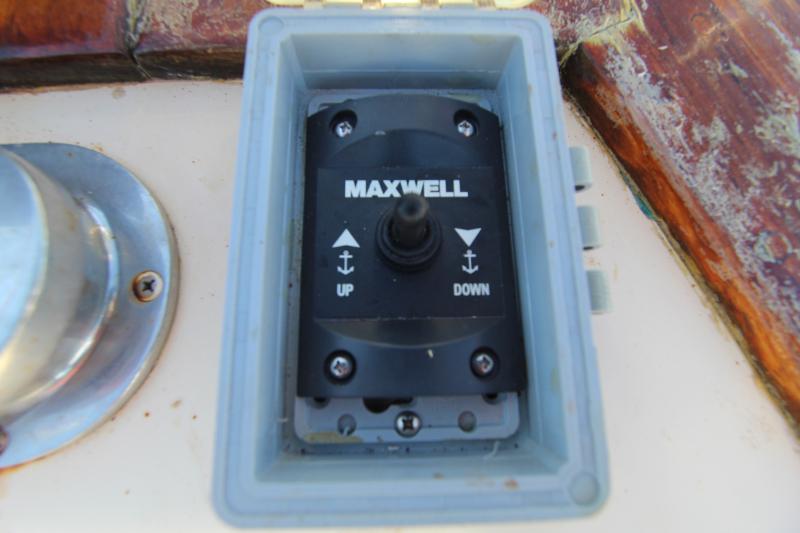

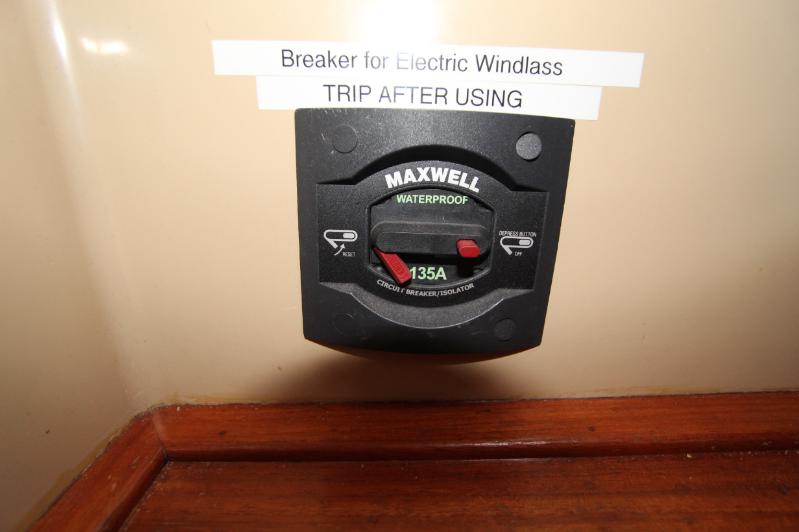

Maxwell H10-10 electric |
| Bow Rollers |
Yes |
| Windex |
Yes |
| Nav Lights |
Bow and stern running lights (LED)

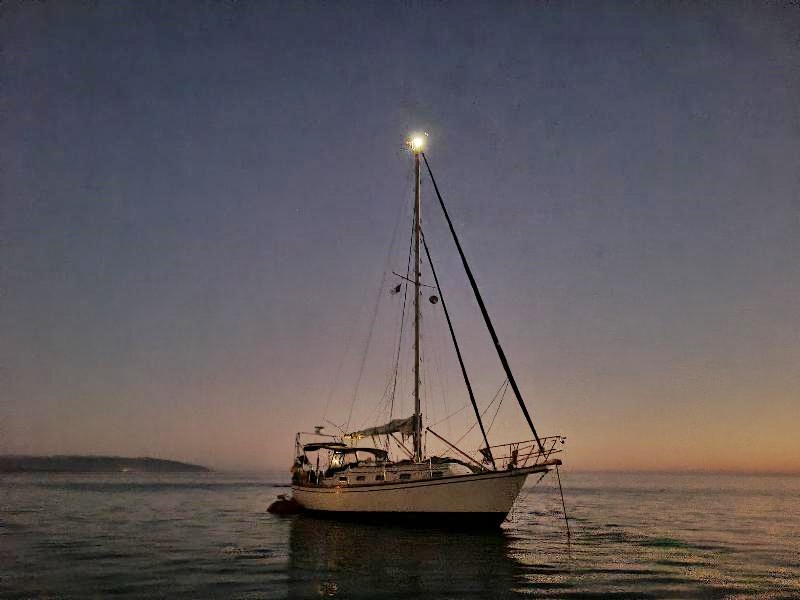

 Mast-top anchor light (LED)
Mast-top tricolor (LED)  |
| Lifelines |
Yes |
| Rails |
Cabin top hand rails and deck hatches |
| Gates |
Yes |
| Ladders |
Transom-mounted stainless-steel ladder |
| Pulpits |
Bow and stern |
| Dinghy |

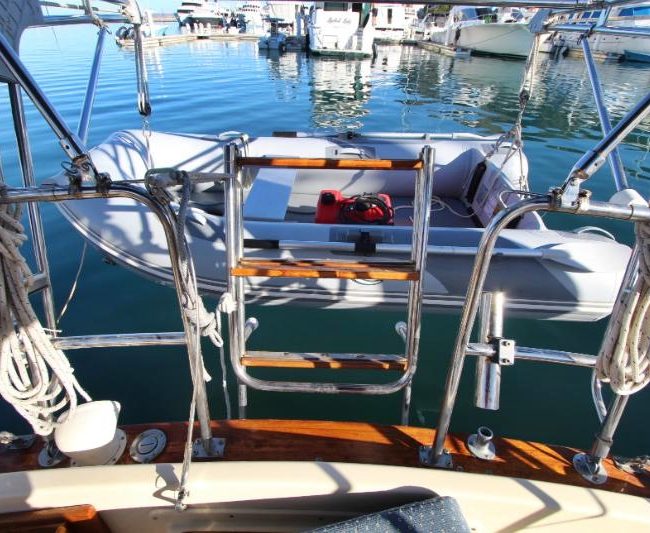

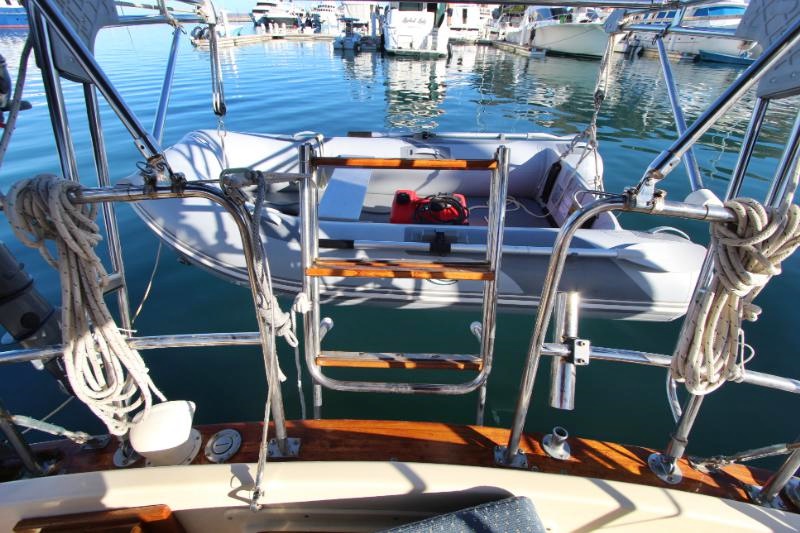

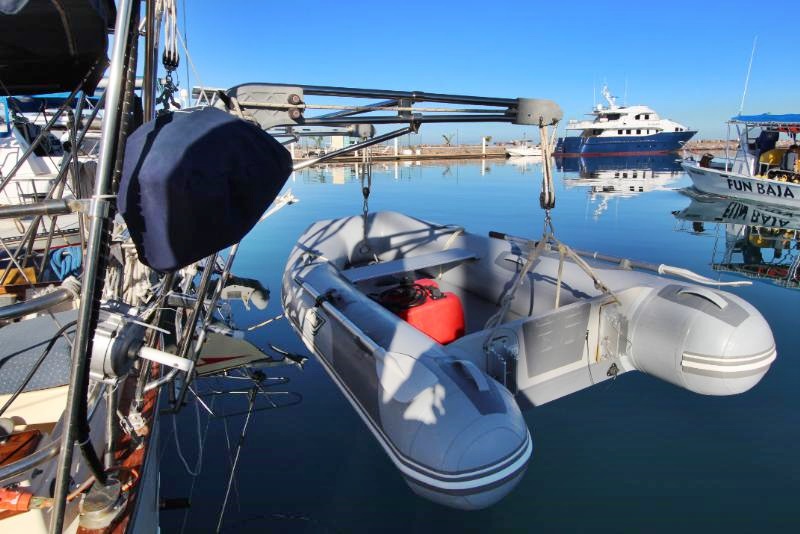

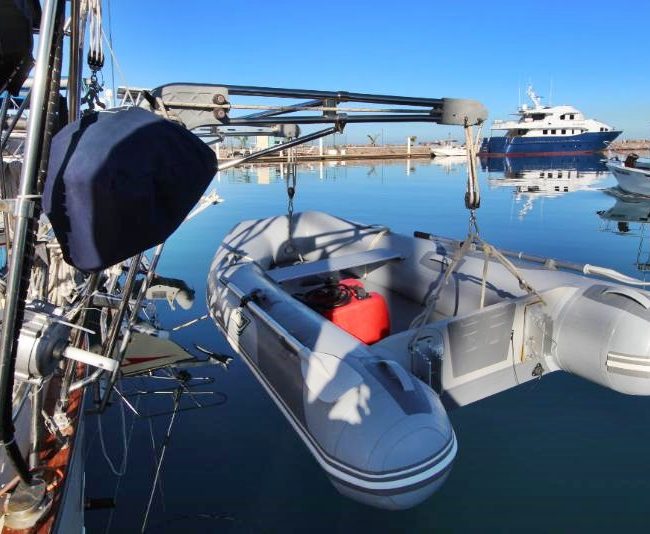

8.5 ft Achilles LSI-260E Hypalon inflatable floor dinghy [new in 10/2021]
 Dinghy claw anchor
Wheels and mounts
Lifting straps
Tow strap  |

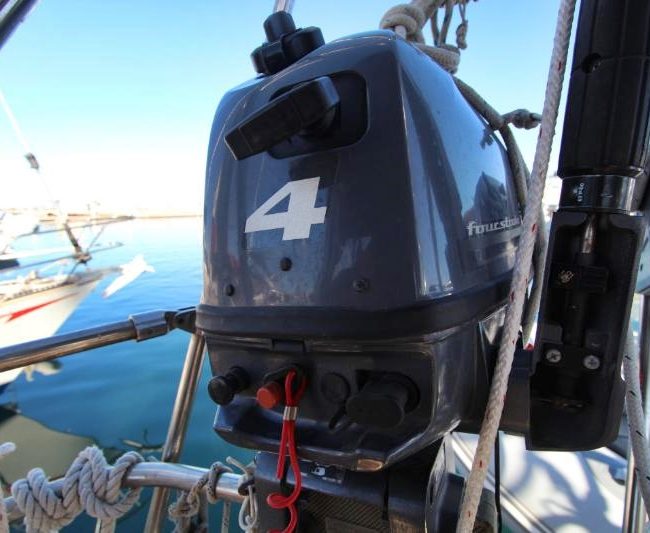

| Dingy Outboard |

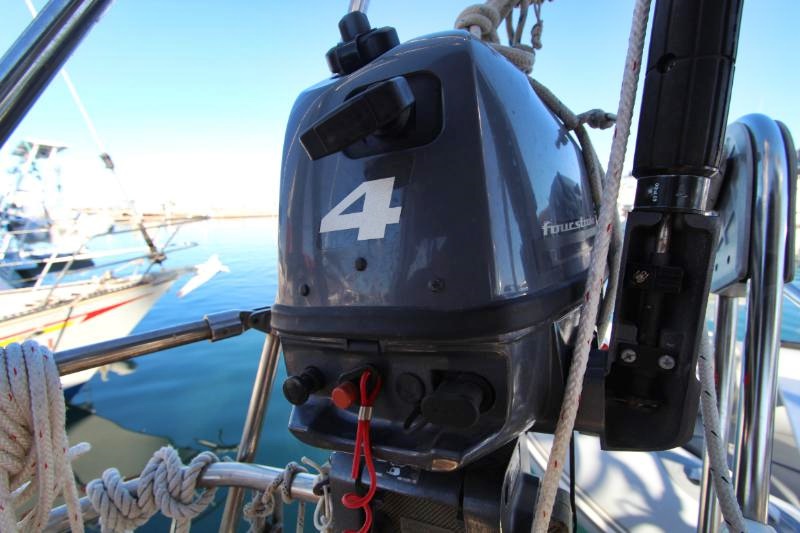

Yamaha 4-Stroke outboard [new in 1/2021] |

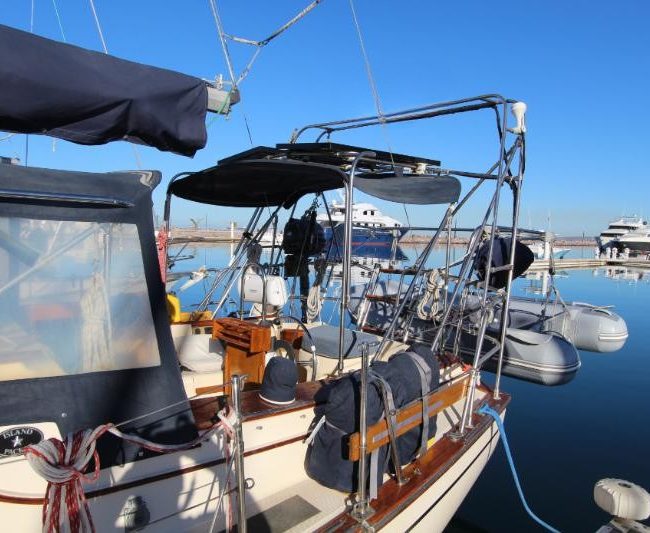

| Dinghy Lift |

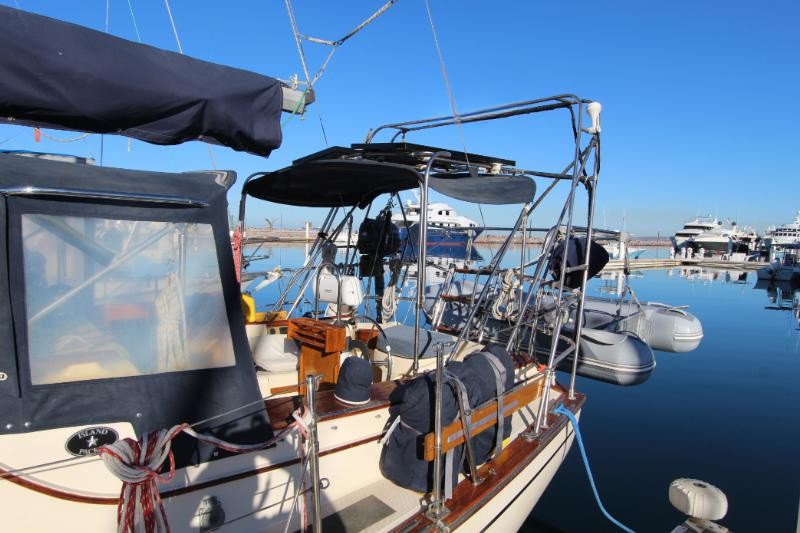

Forespar folding NovaDavits with block-and-tackle for outboard lift |
| Washdown |
Anchor washdown deck fitting
 Washdown station  |
| Ventilation |
Dorade vents
 Deck hatches
Stainless steel portlights  |
| Covers & Curtains |
Screens for all portlights

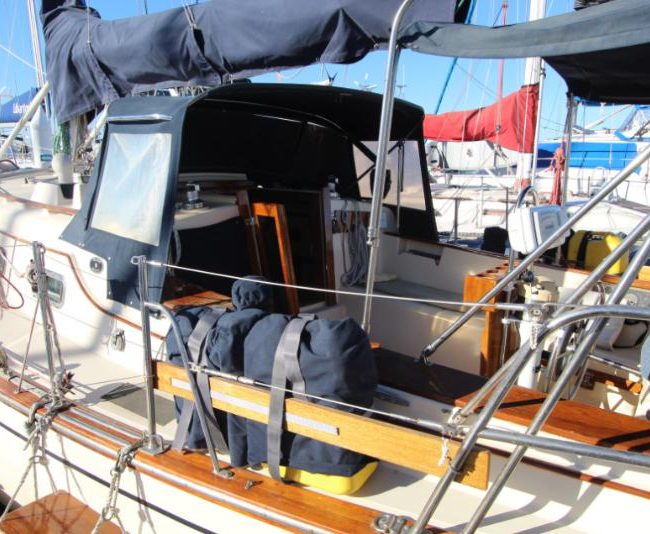

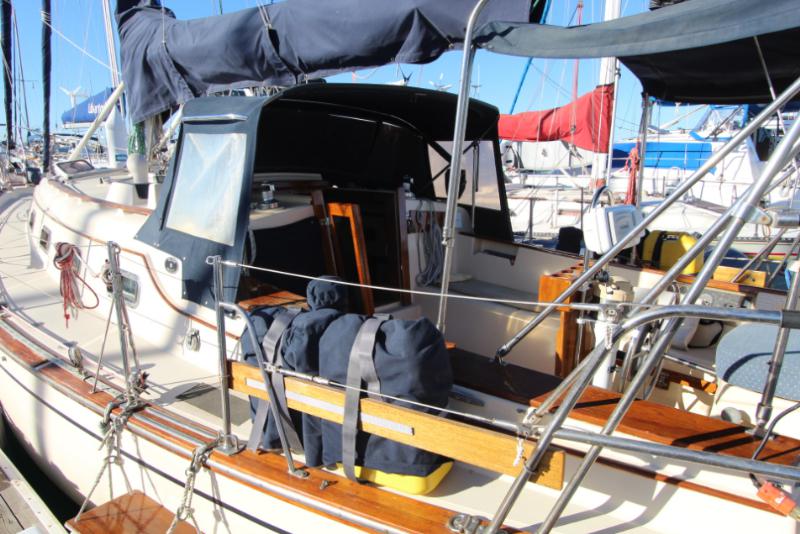

 Sunbrella dodger and bimini with connector, full enclosure (new/installed 2024)
New Sunbrella deck sail bag for spinnaker
Cushions for port settee double berth upholstered in Sunbrella for cockpit use  |
| Deck Materials |
Fiberglass deck |

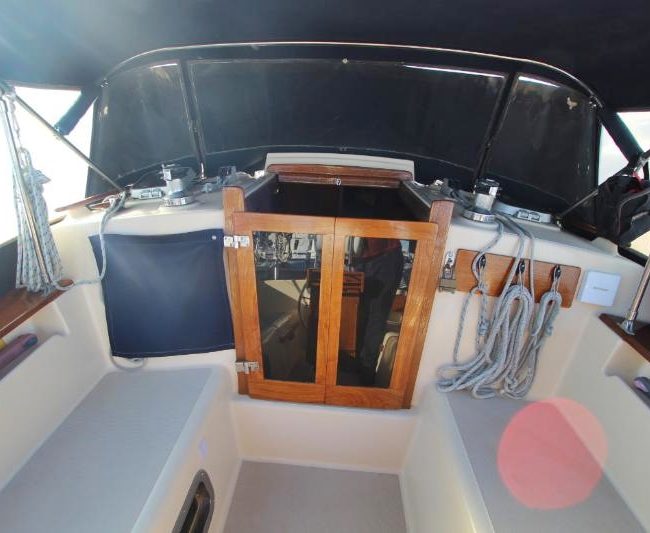

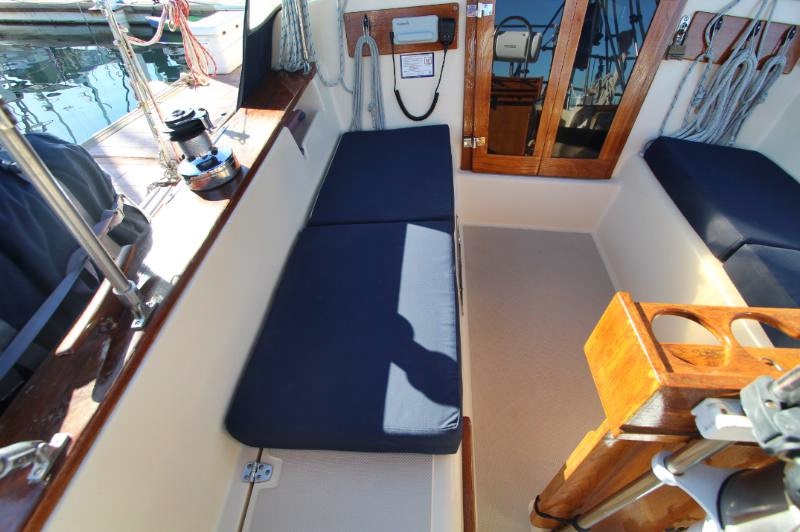

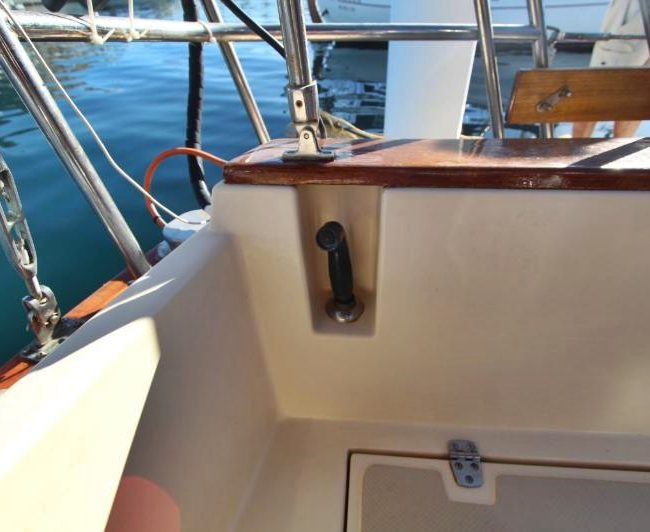

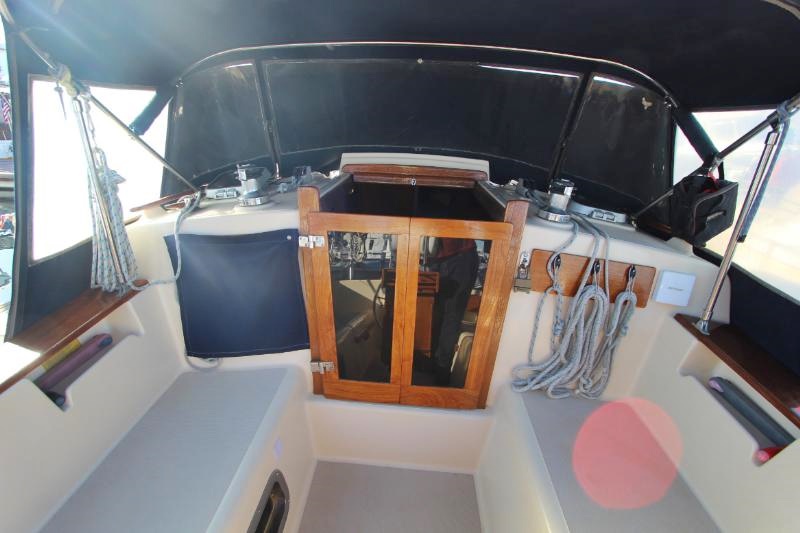

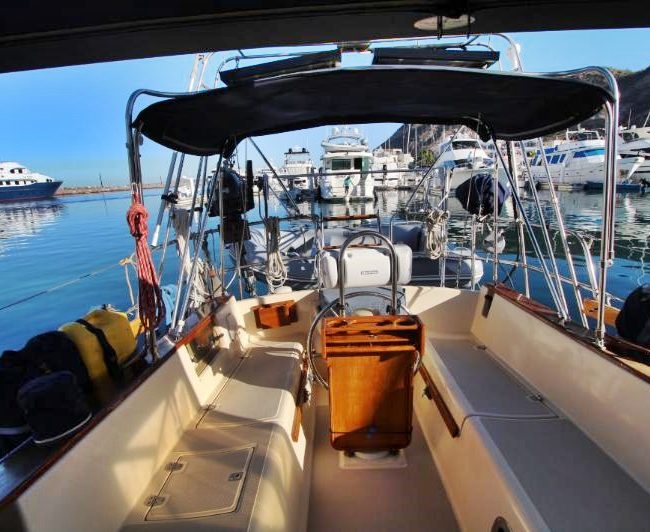

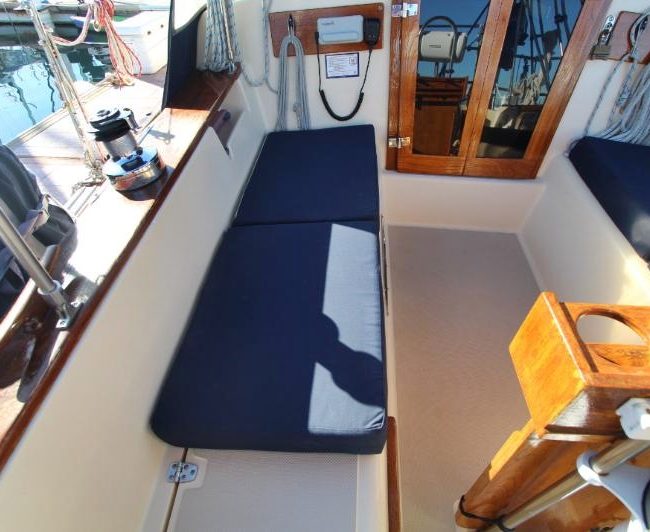

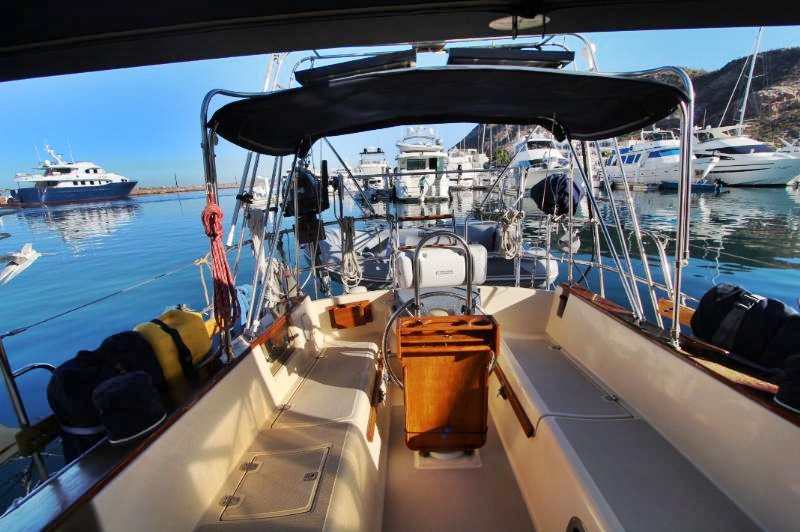

| Cockpit |

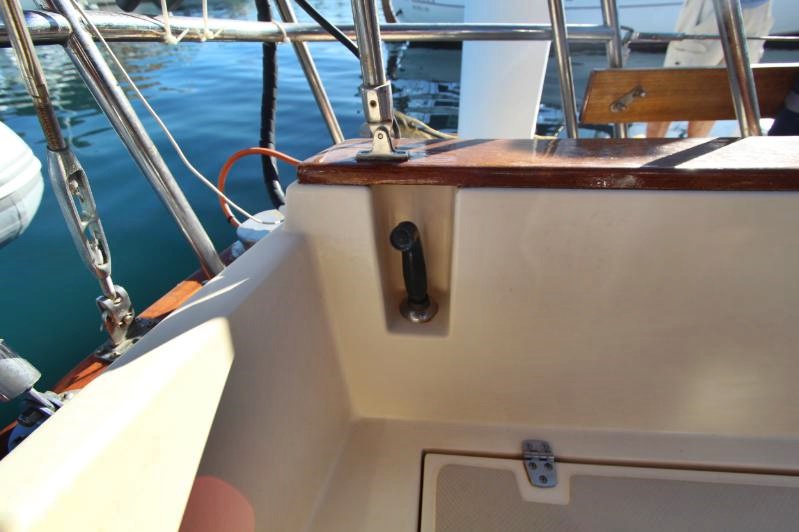

Tray-style and deep cockpit lockers (lazarettes)

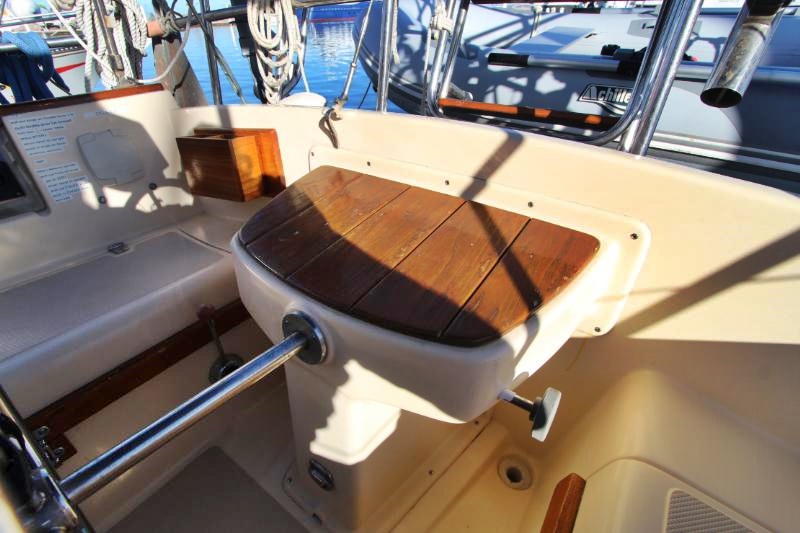

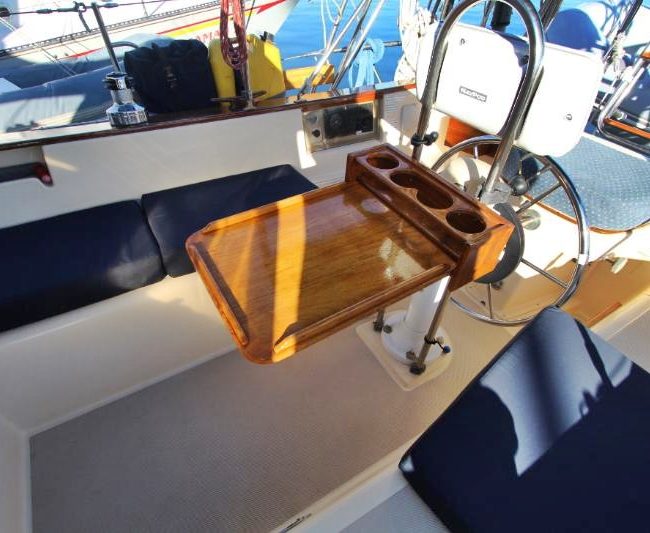

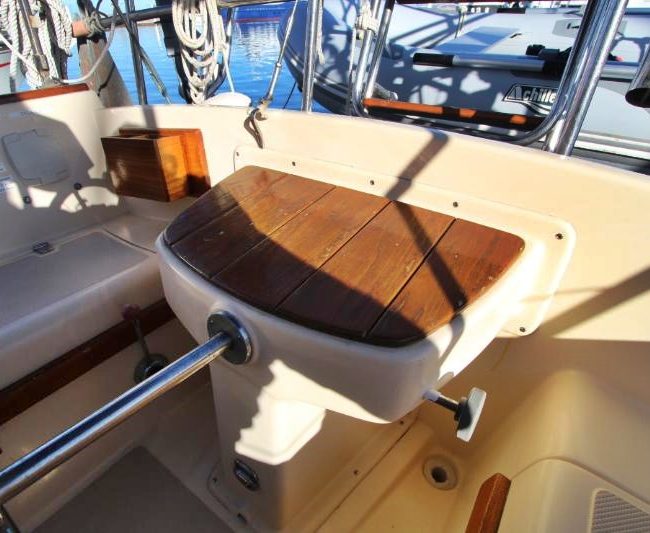

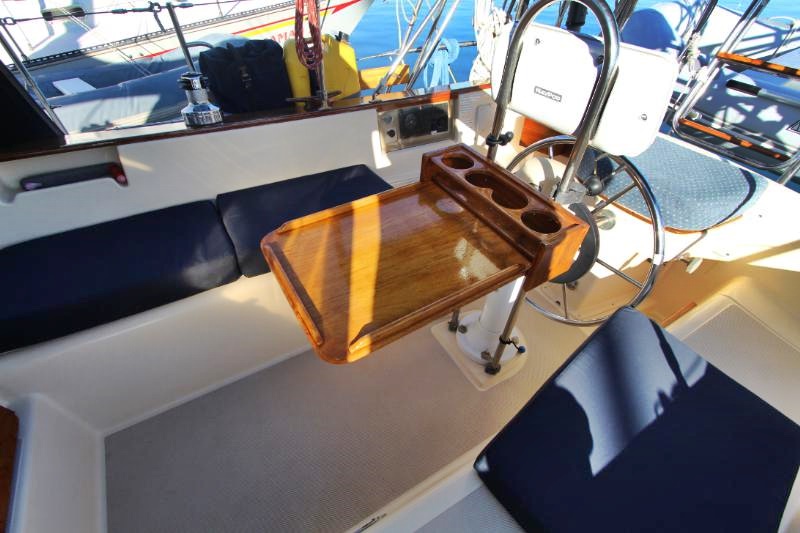

 Teak fold-down cockpit table
Propane locker with 2 new propane cylinders and solenoid shut-off valve
12V cigarette lighter-type outlet  |
| Other |
Custom IPE docking step
 Stanchion-mounted fuel can supports (Iroko)
Flag pole mounted on stern
MAGMA kettle-type propane BBQ  |
Mechanical
| Bilge Pump |
Main and auxiliary bilge pumps under shaft
 Manual  |
| Engine Cooling |
Seawater-cooled via freshwater heat exchanger & exhaust |
| Fire Extinguishers |
In stateroom and main salon |
| Head Type |
Manual |

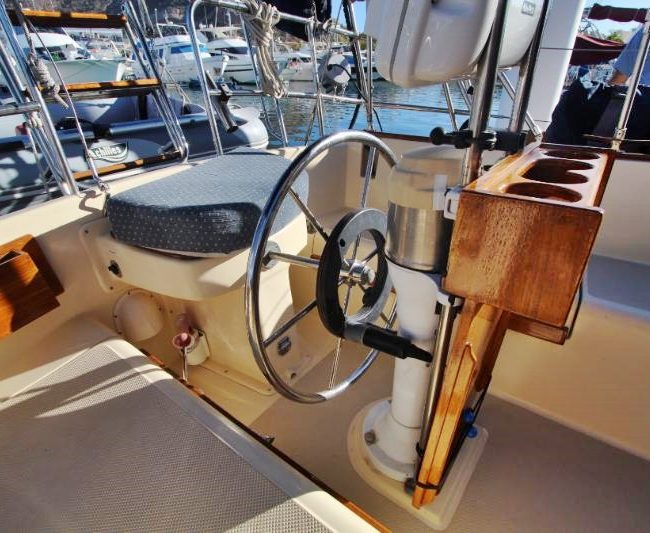

| Steering |

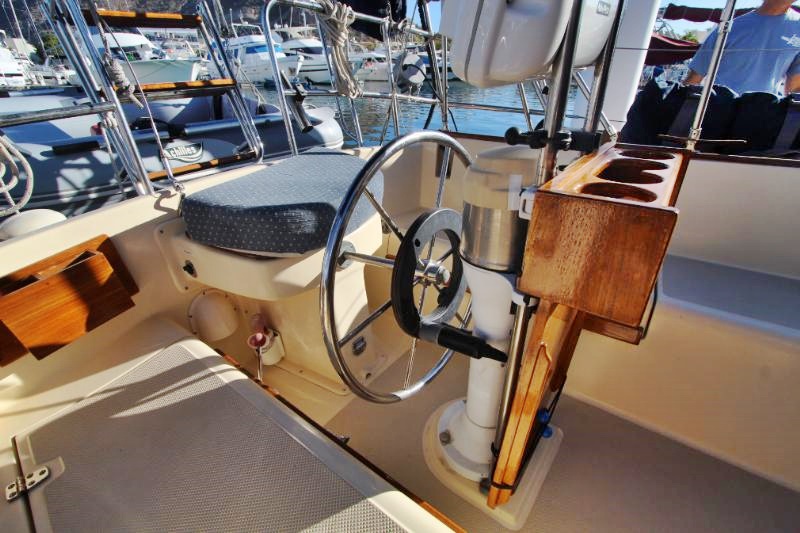

Reverse helm with rack-and-pinion steering |
| Transmission |
Kanzaki Model KM3P |
Safety Equipment
| Fire Extinguishers |
Yes |
| Lifejackets |
x4 |
| Throw Bag |
Yes |
| USCG Safety Package |
Yes |
Exclusions
- Tools

- Sextant

- Flashlights

- Personal items
