Dimensions
| Builder |
Robertson and Caine |
| Designer |
Morelli & Melvin |
| Popular Length |
38 ft (11.58m) |
| LOA |
37.5 ft (11.43m) |
| LWL |
36 ft (10.97m) |
| LOD |
38 ft (11.58m) |
| Beam |
19.75 ft (6.02m) |
| Maximum Draft |
3.42 ft (1.04m) |
| Air Draft |
62.66 ft (19.1m) |
| Displacement Weight |
20,073 lbs (9104.96 kg) |
| Displacement Type |
Dry Load |
| Keel Type |
Twin |
| Hull Material |
Fiberglass |
| Hull Shape |
Multi-hull |
| Boat Class(es) |
Catamaran |
| Headroom |
6.5 ft (1.98m) |
Propulsion
| Engine #1 |
2011 Yanmar 3YM30 |
| Engine #1 Power |
29 hp |
| Engine #1 Hours |
4550 (reported) |
| Engine #1 Type |
Inboard |
| Engine #1 Fuel |
Diesel |
| Engine #1 Drive Type |
SD20 Sail Drive (New 2018) |
| Engine #1 Propeller |
2-Blade Fixed Aluminium |
| Engine #2 |
2011 Yanmar 3YM30 |
| Engine #2 Power |
29 hp |
| Engine #2 Hours |
4550 (reported) |
| Engine #2 Type |
Inboard |
| Engine #2 Fuel |
Diesel |
| Engine #2 Drive Type |
SD20 Sail Drive (New 2018) |
| Engine #2 Propeller |
2-Blade Fixed Aluminium |
| Cruising Speed |
5.6kn @ 2500 RPM |
| Max Speed |
6.7kn @ 3000 RPM |
| Gal / Hr |
0.5 (cruising speed)
0.75 (max speed) |
Tanks
| Fuel Tankage |
x2 Aluminum – Total 92 Gal (348.3L) |
| Water Tankage |
x2 Plastic – Total 200 Gal (757.1L) |
| Holding Tankage |
x2 Plastic – Total 13 Gal (49.2L) |
Accommodations
The Leopard 38 offers an interior that strikes an ideal balance between practicality and comfort. Unlike many catamarans that favor stark fiberglass finishes and minimalist styling, the Leopard incorporates rich wood cabinetry and trim throughout, creating a warm, inviting atmosphere that feels more like a traditional yacht than a floating condominium.
Large vertical windows surround the saloon, with two vertical opening hatches directly forward, filling the living space with natural light and providing excellent visibility and ventilation while underway or at anchor. The result is an open, airy interior that feels remarkably spacious for a vessel of this size.

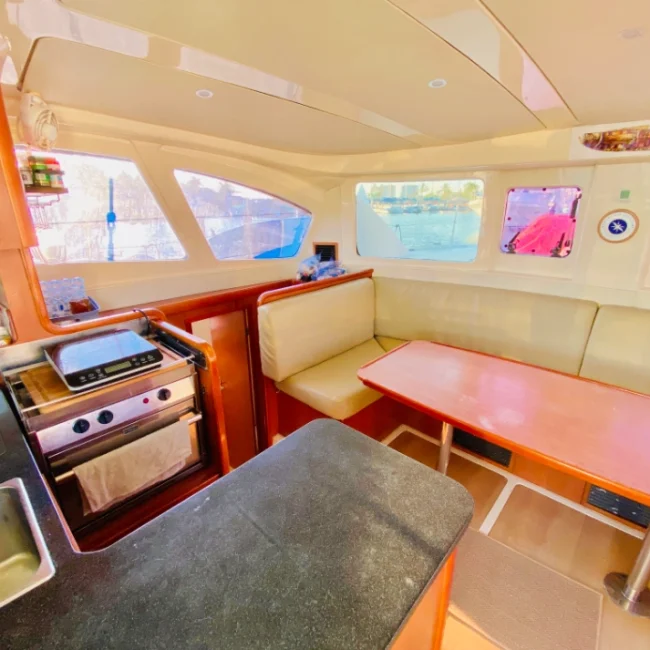

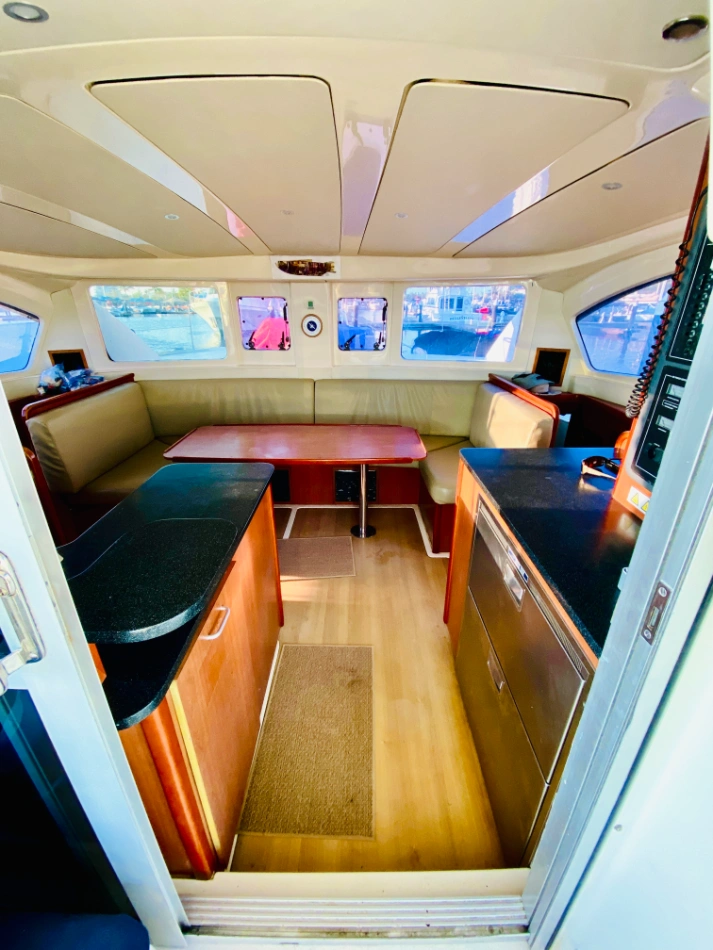

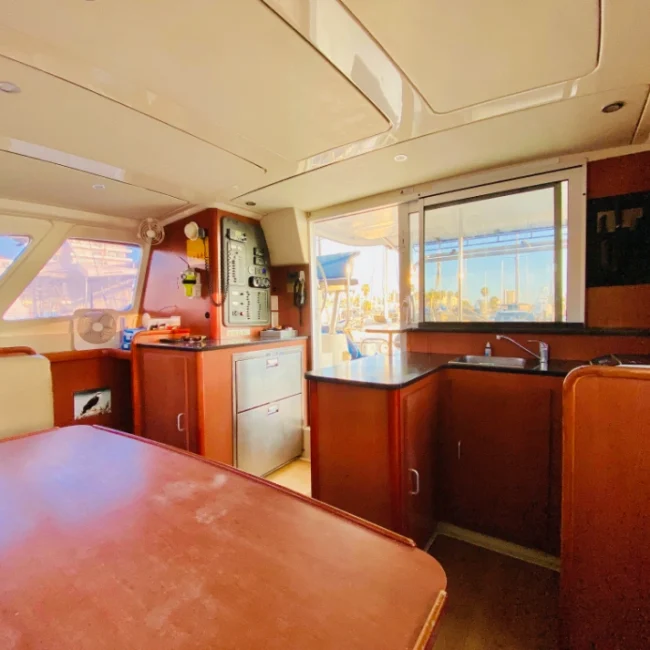

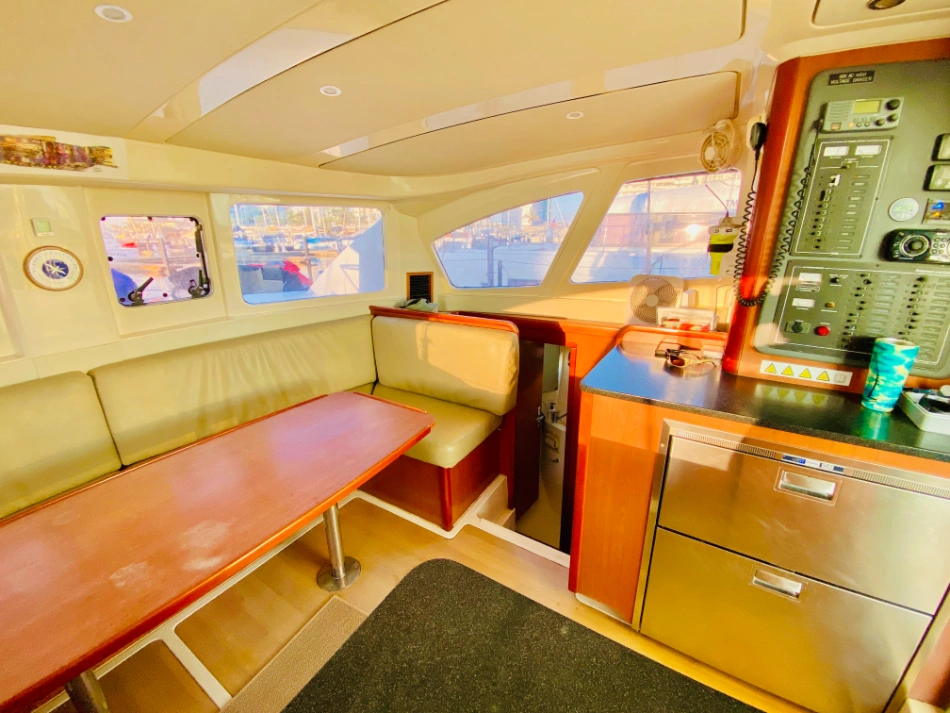

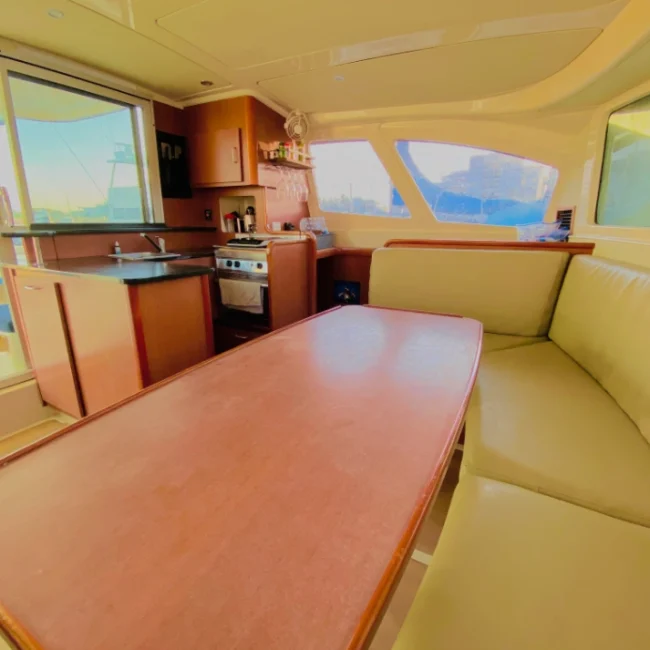

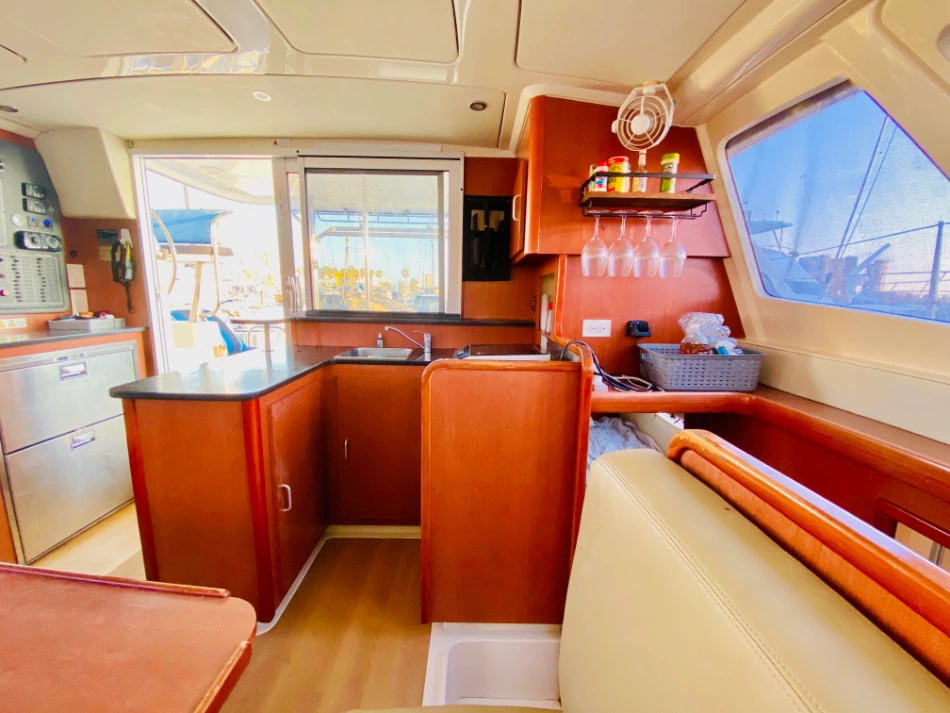

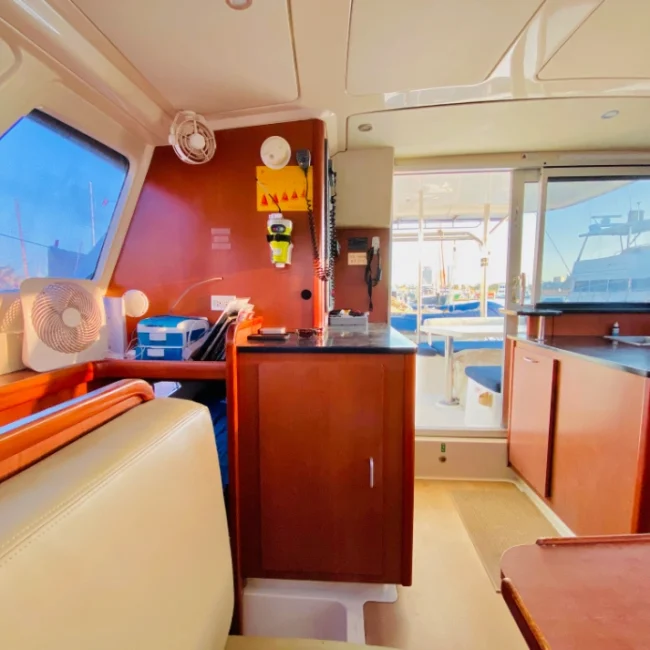

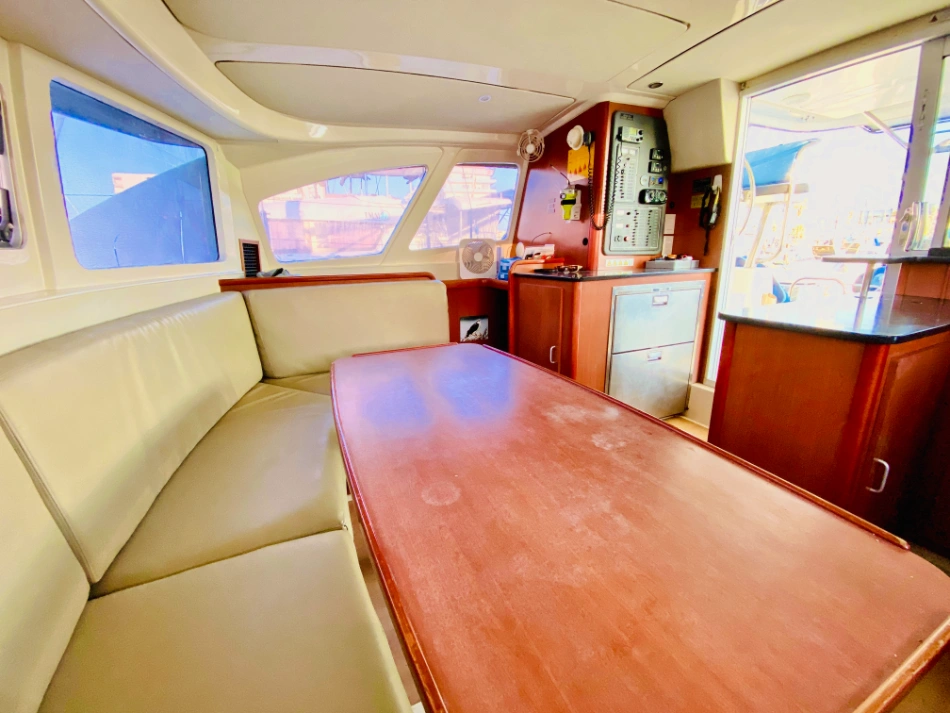

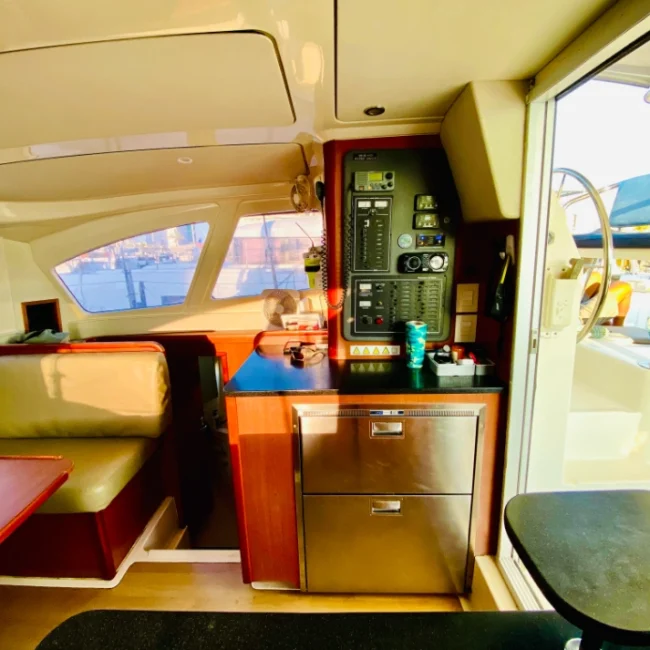

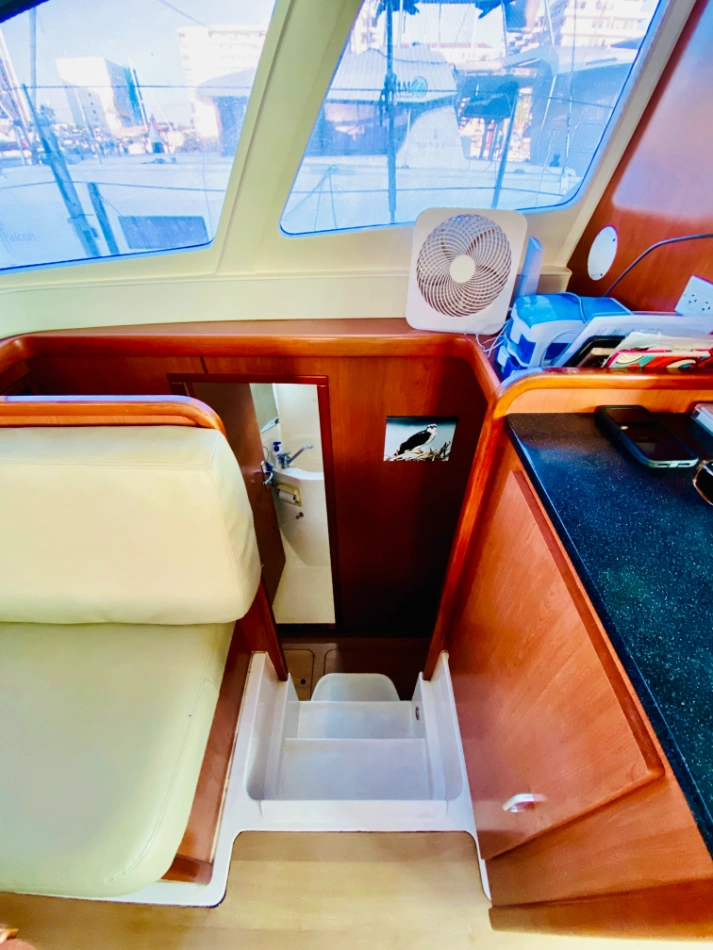

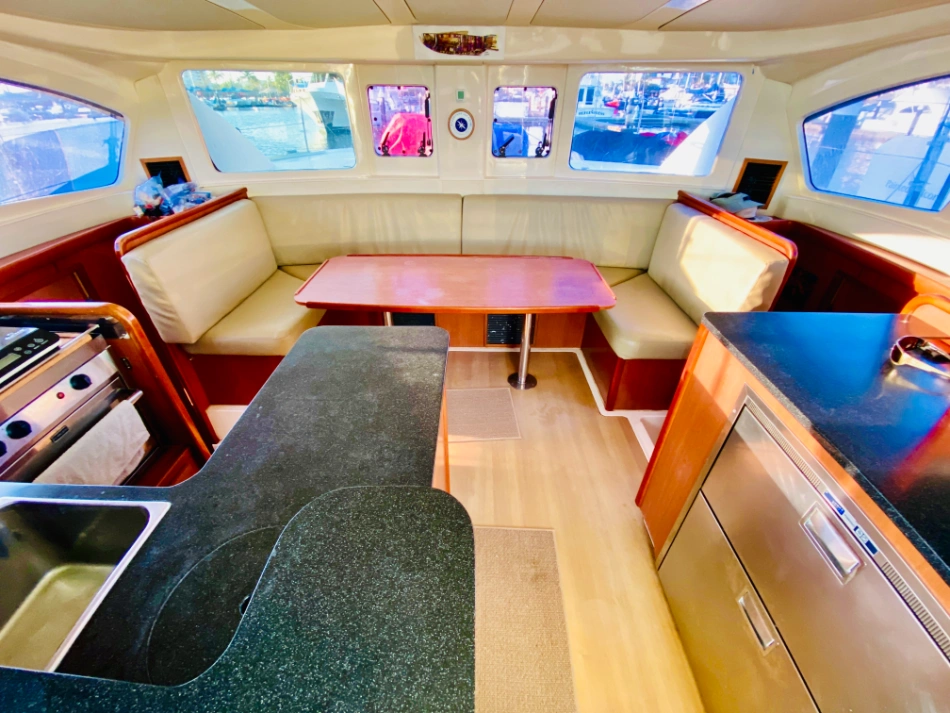

Saloon & Galley

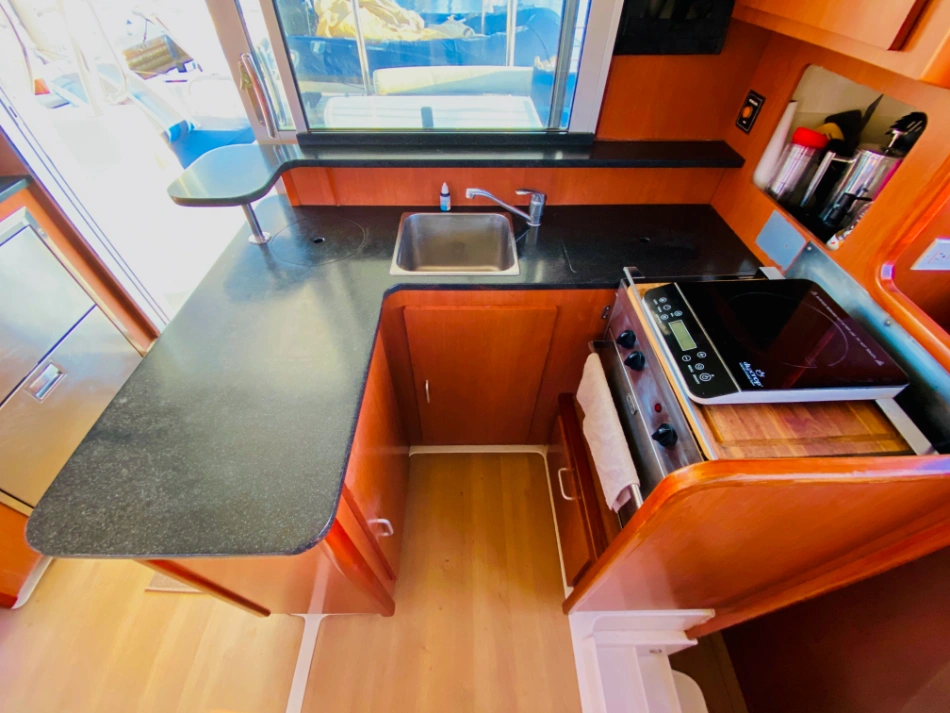

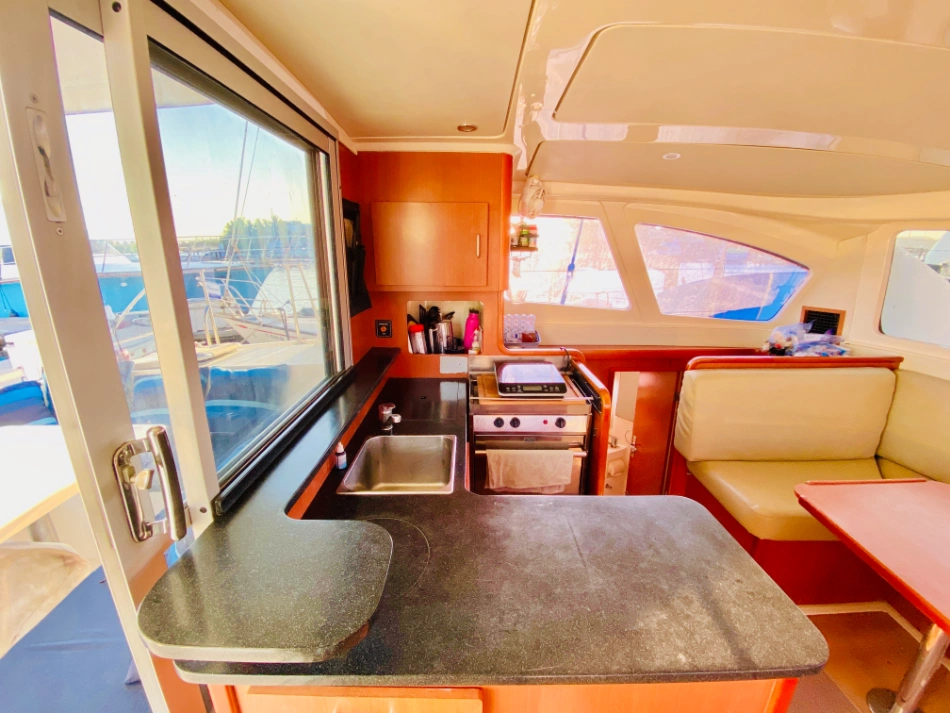

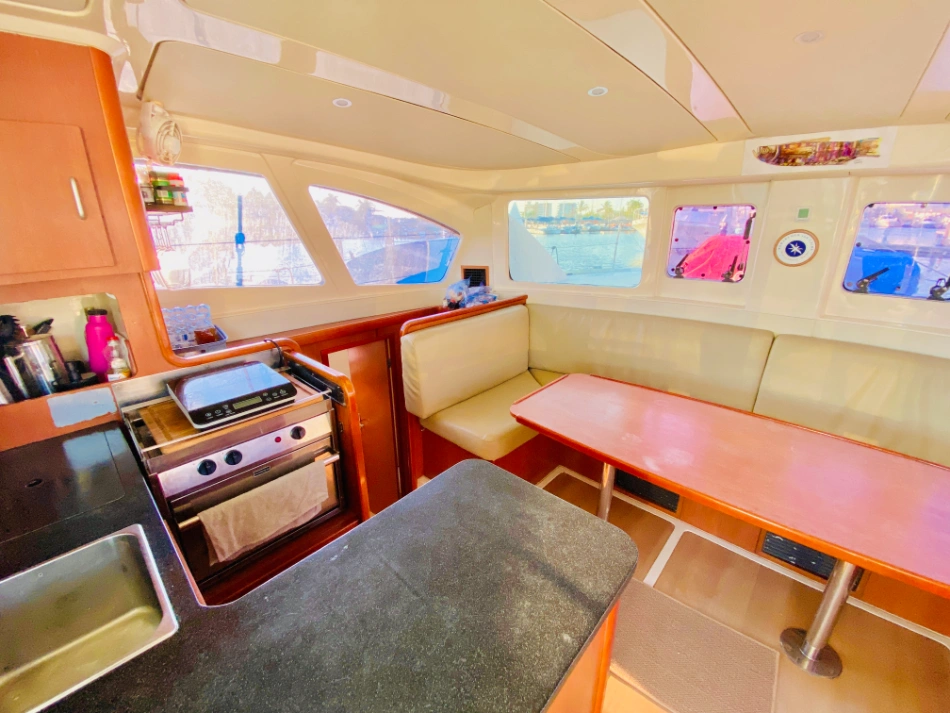

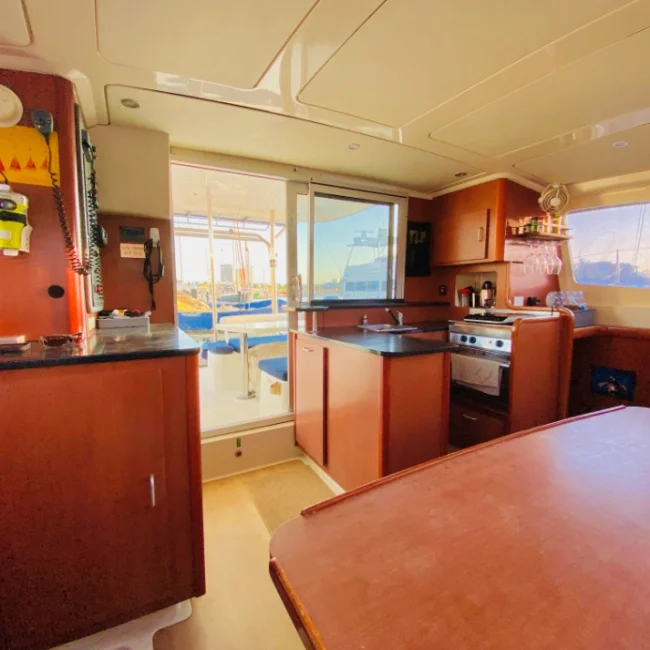

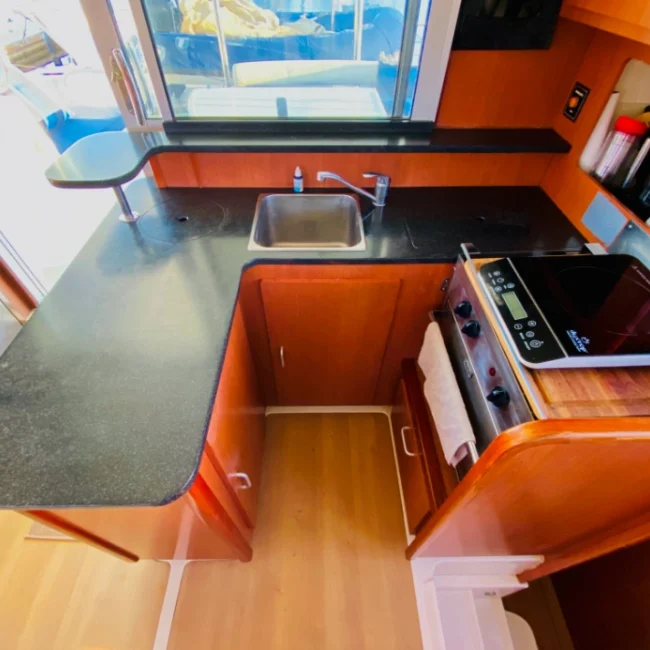

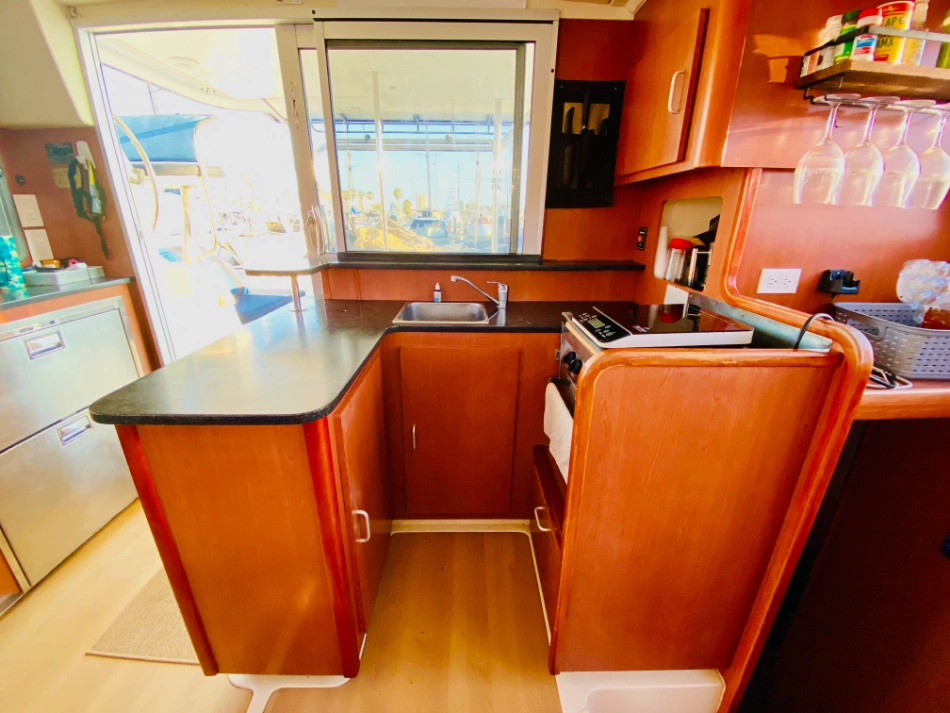

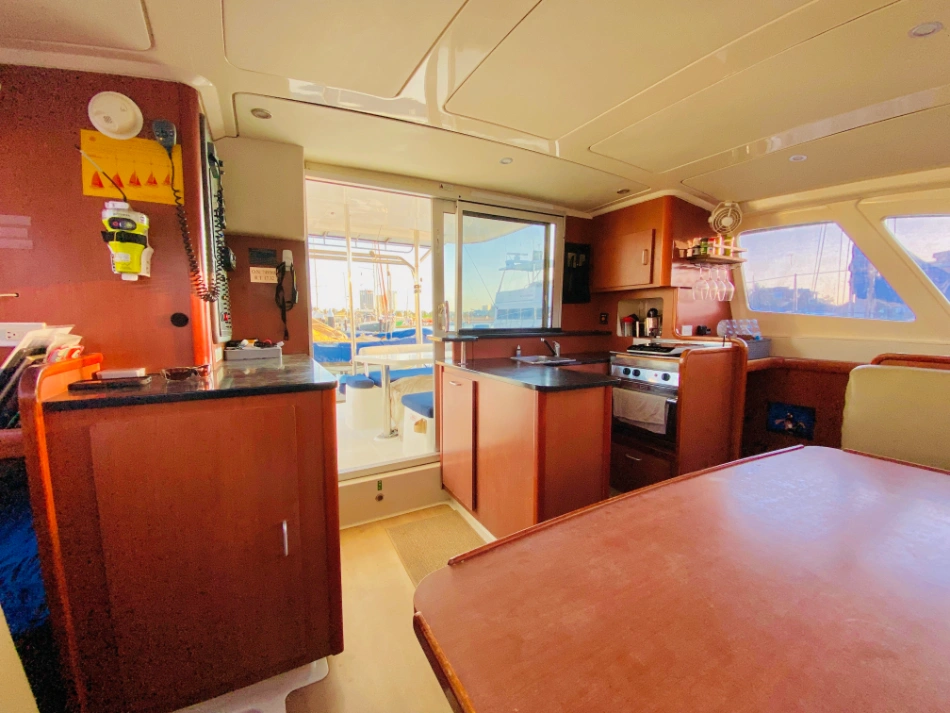

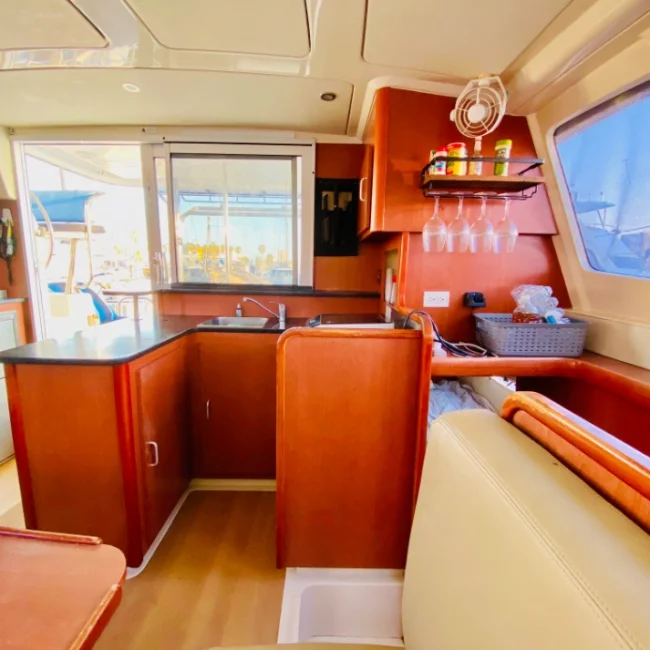

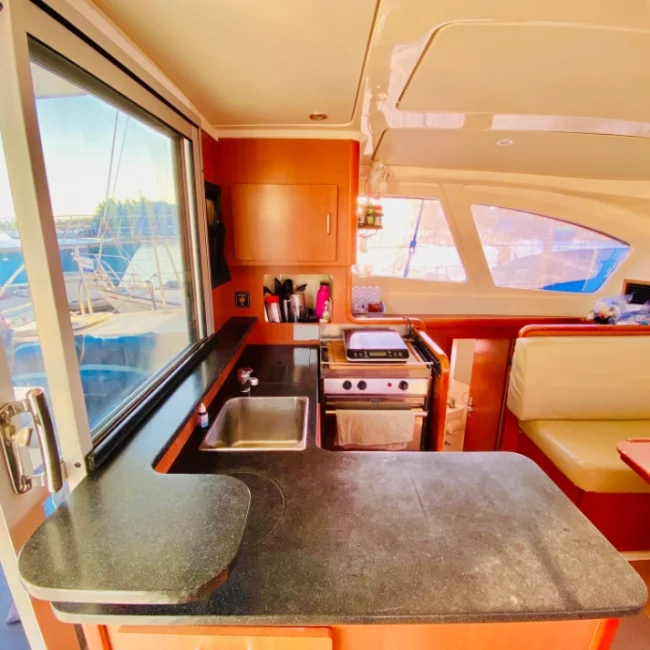

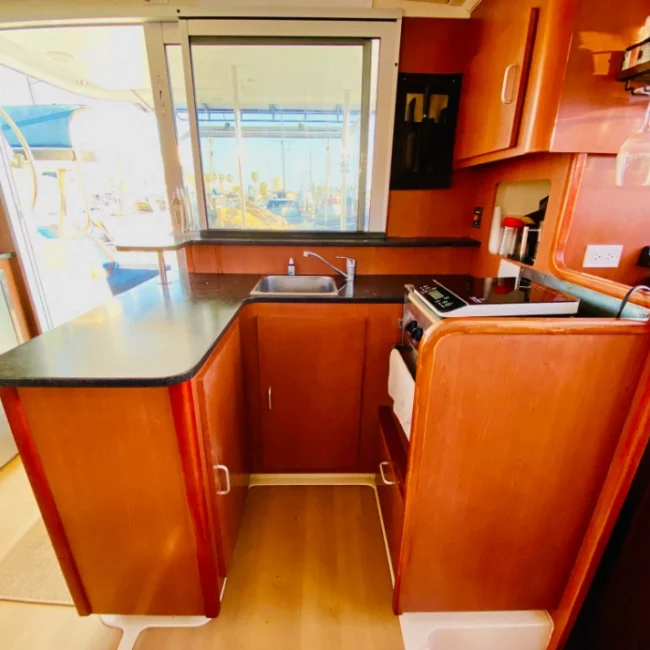

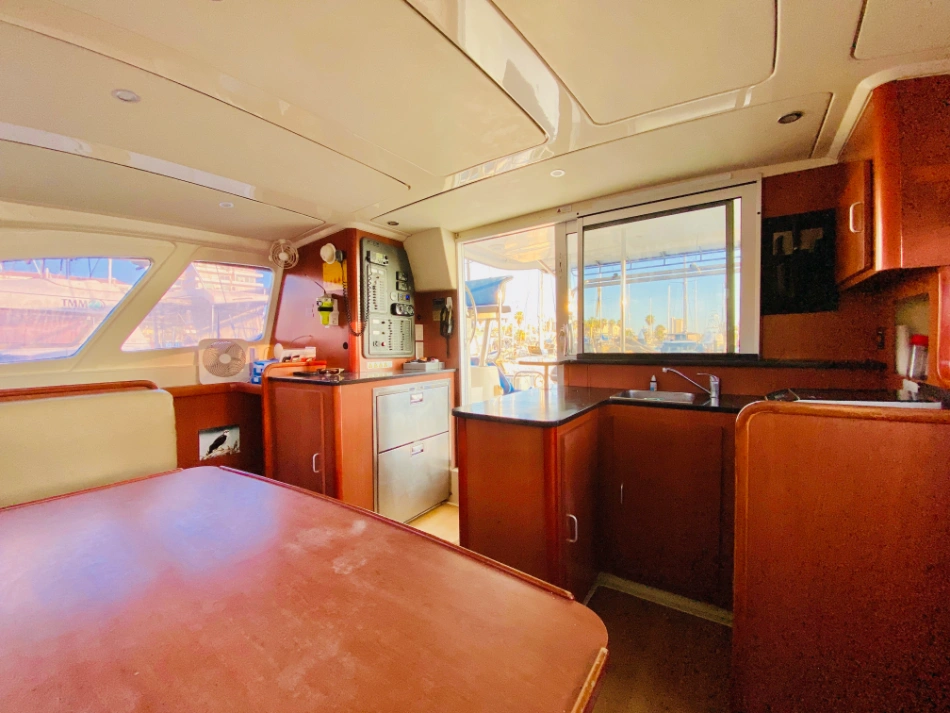

The galley-up configuration keeps the chef connected to the rest of the living space, making meal preparation a social experience rather than an isolated task. The practical U-shaped layout offers suitable counter space, abundant cabinetry, and secure footing while underway, making it equally adept for weekend cruising or extended voyages.

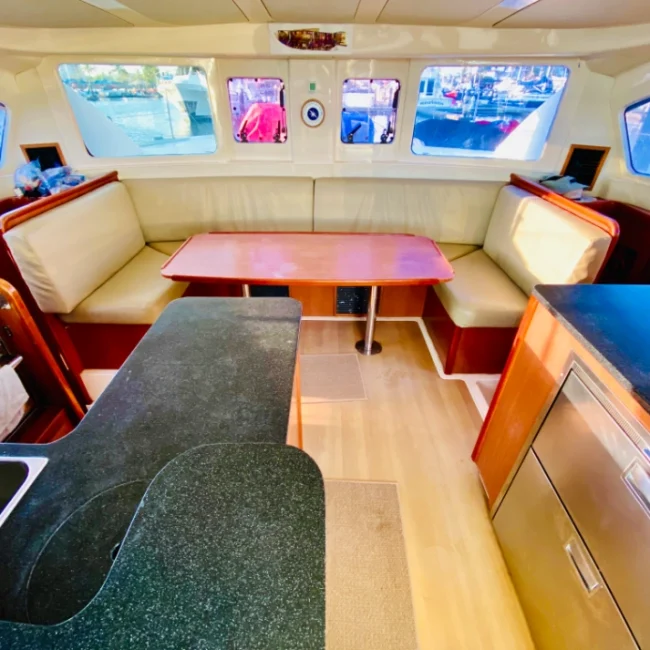

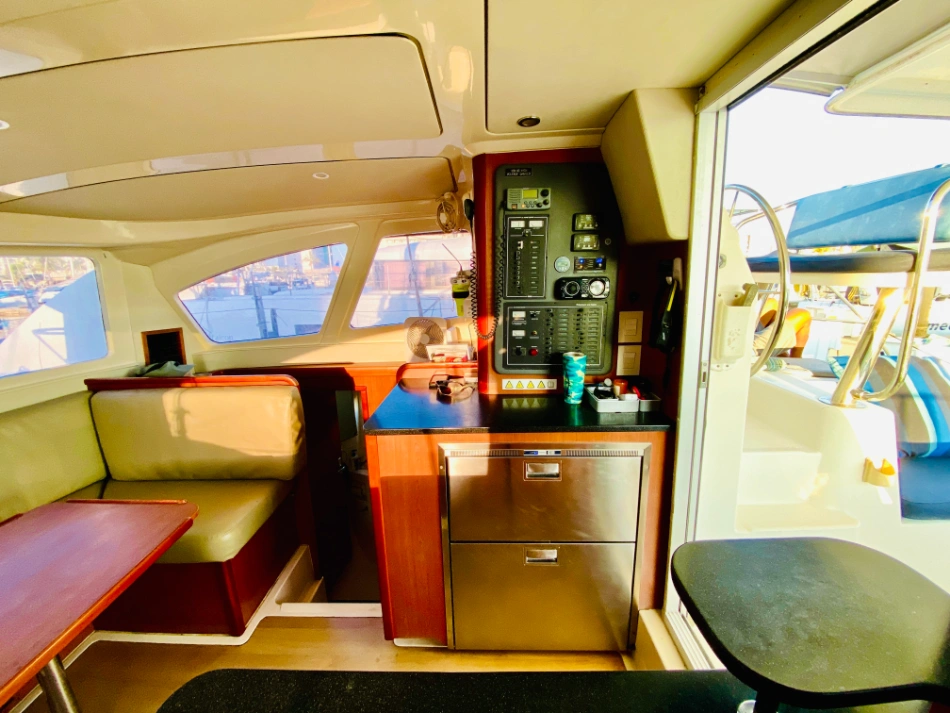

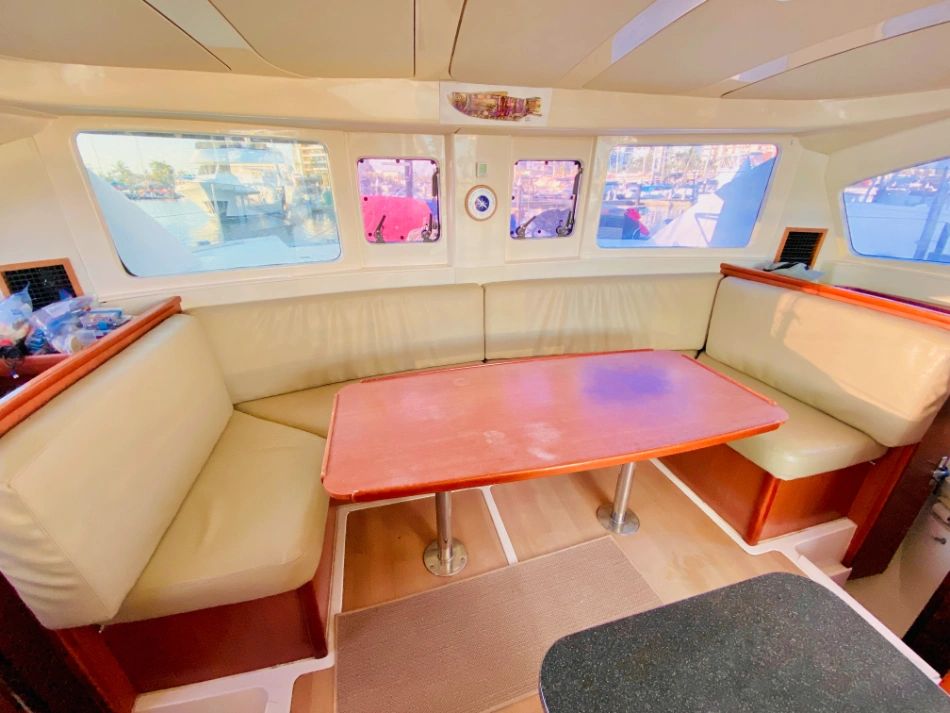

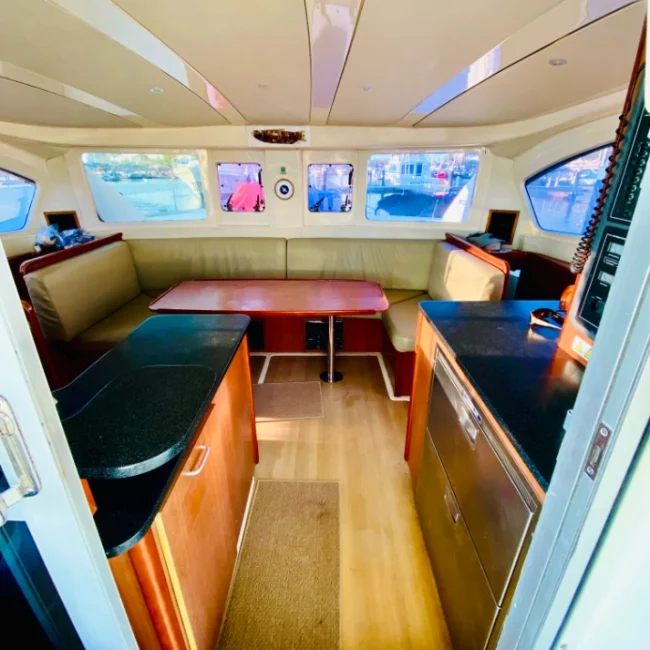

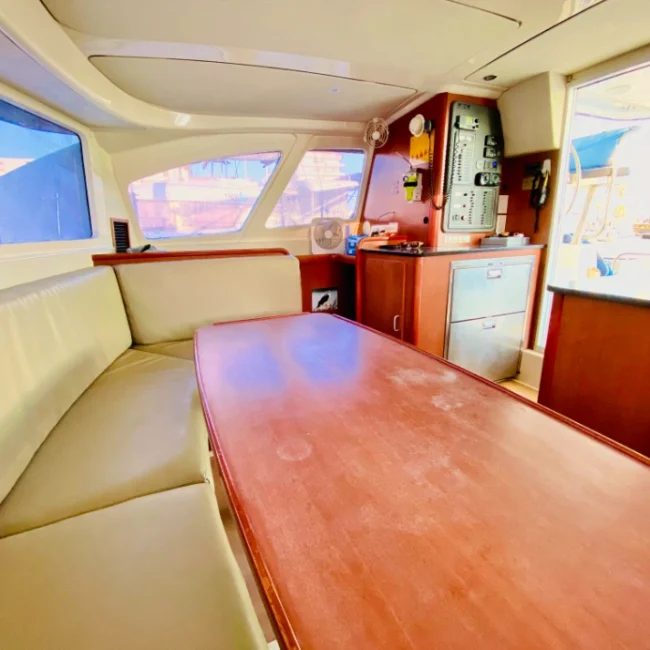

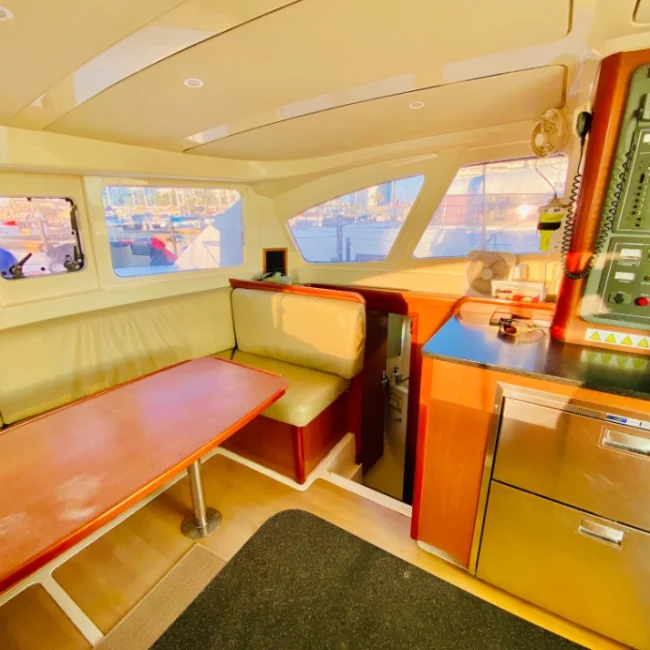

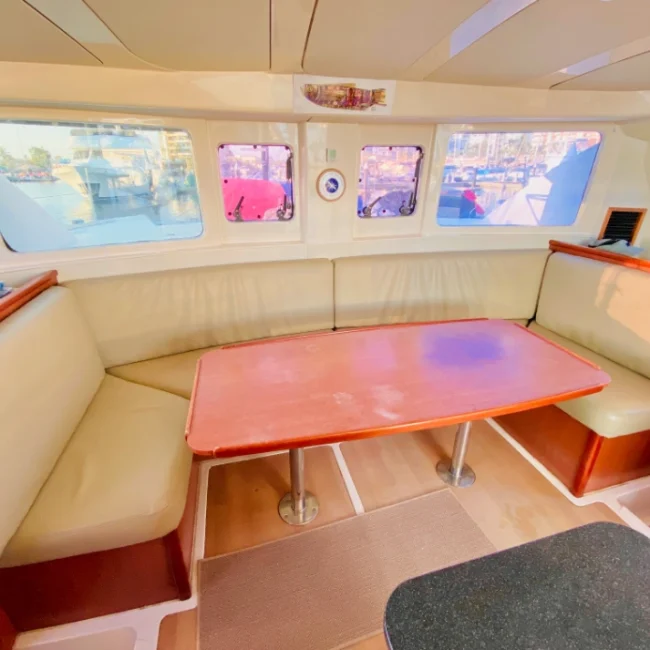

Adjacent to the galley, the comfortable dinette provides an ideal gathering place for meals, entertaining guests, or simply relaxing with panoramic views through the saloon windows. A large refrigerator/freezer unit offers substantial cold storage for extended time away from the dock, while the vessel’s electrical systems are conveniently monitored from the nearby control panel.

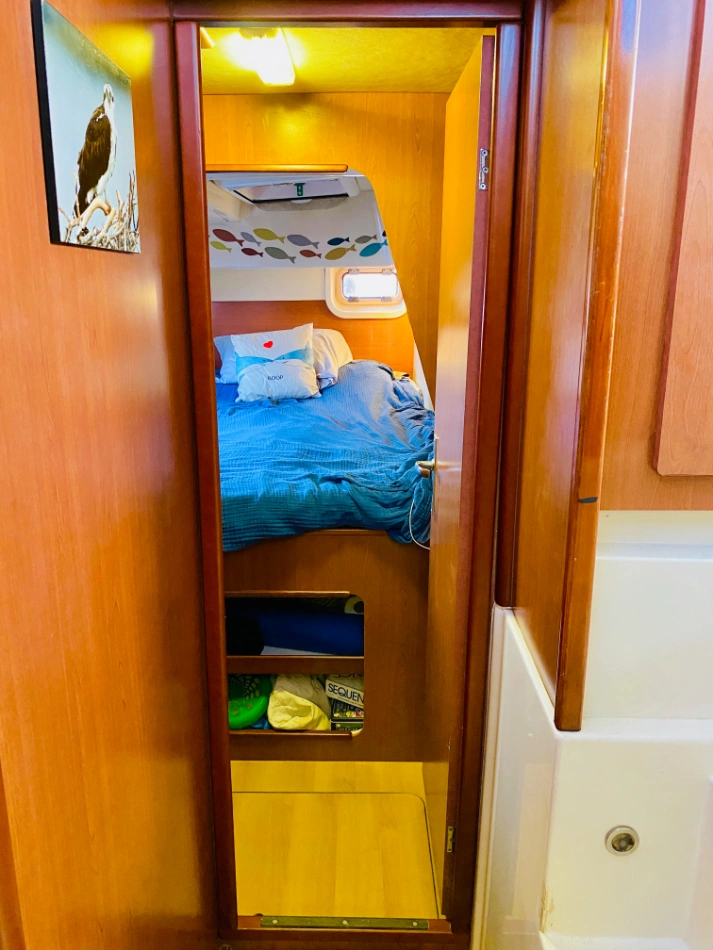

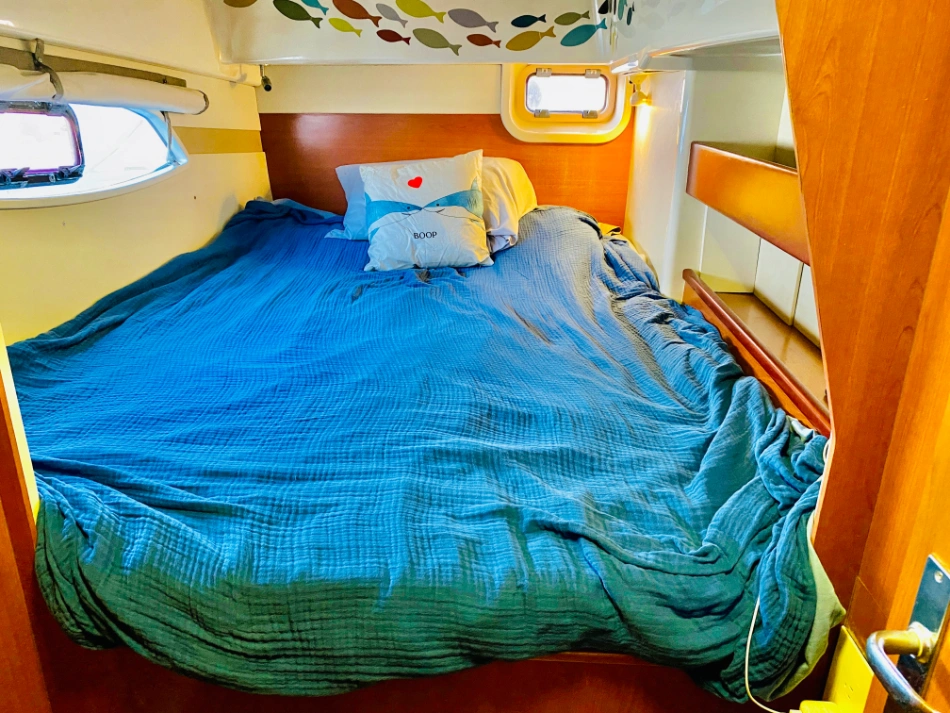

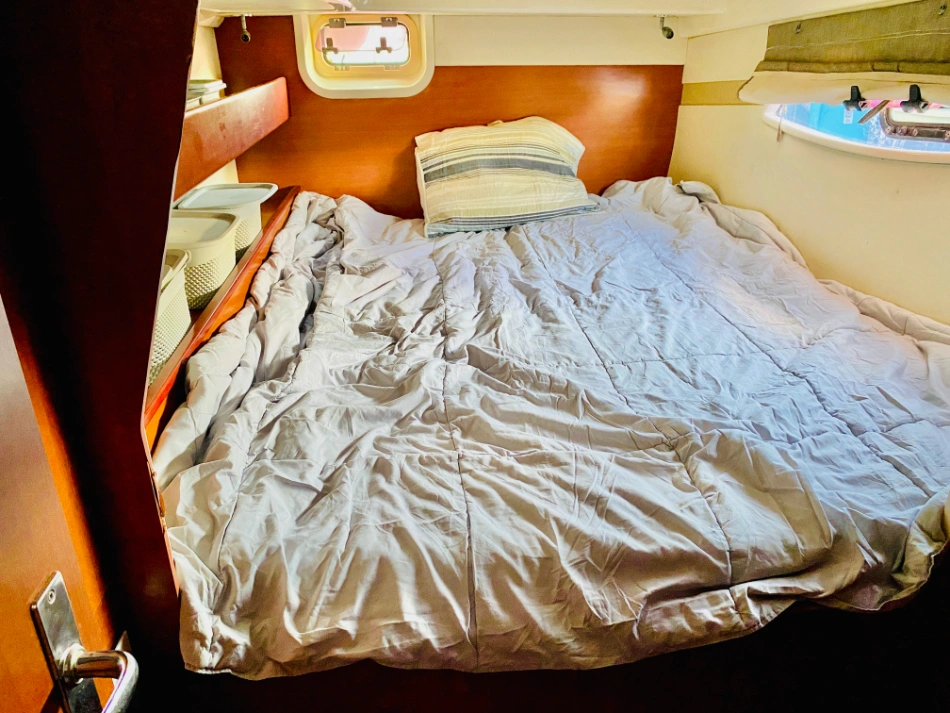

Accommodations

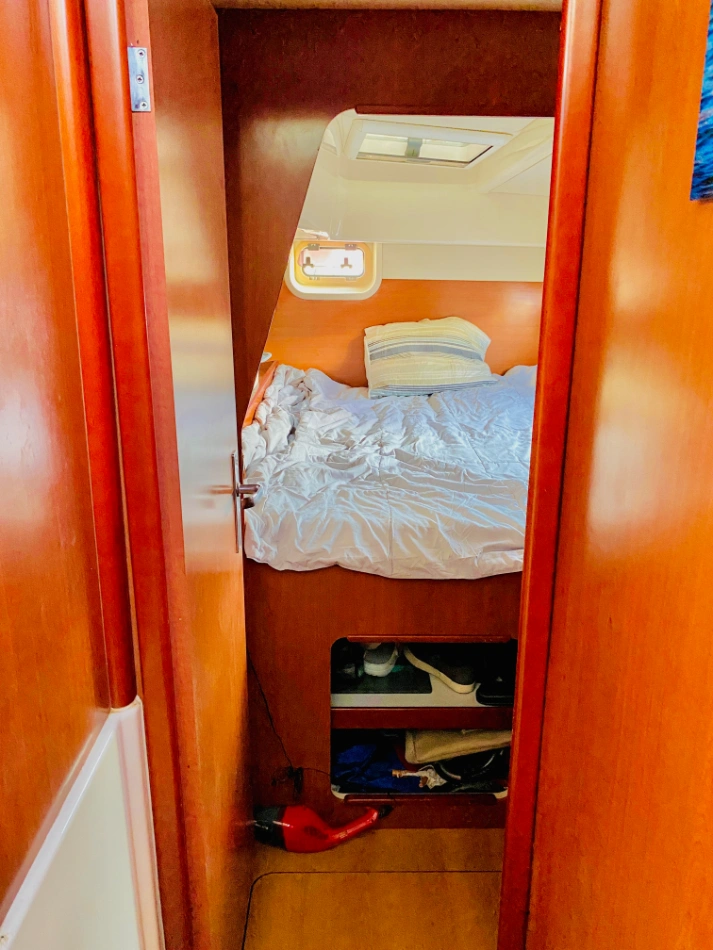

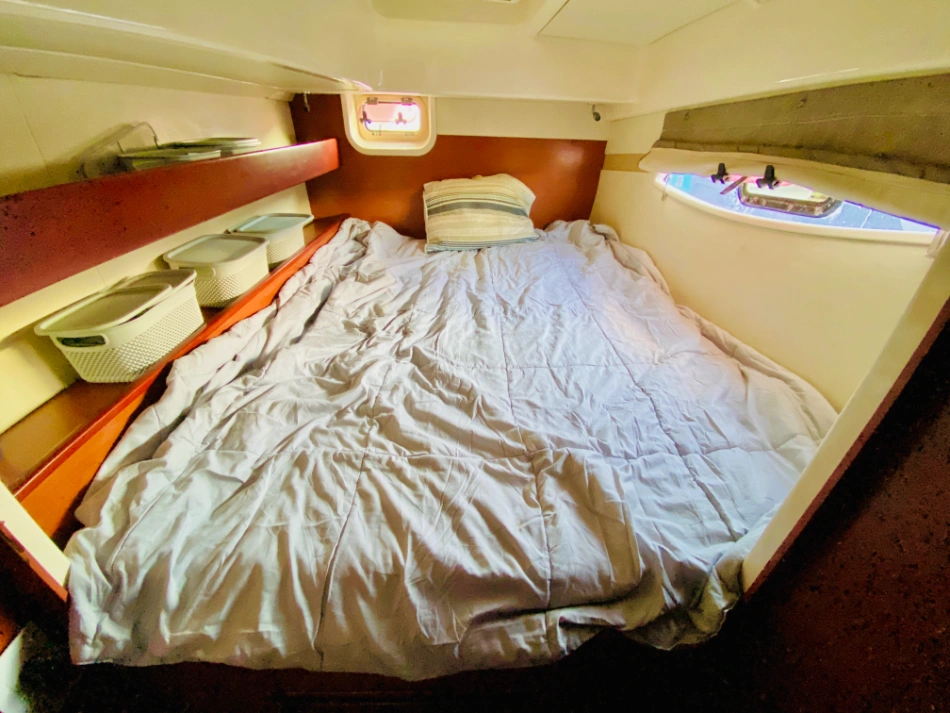

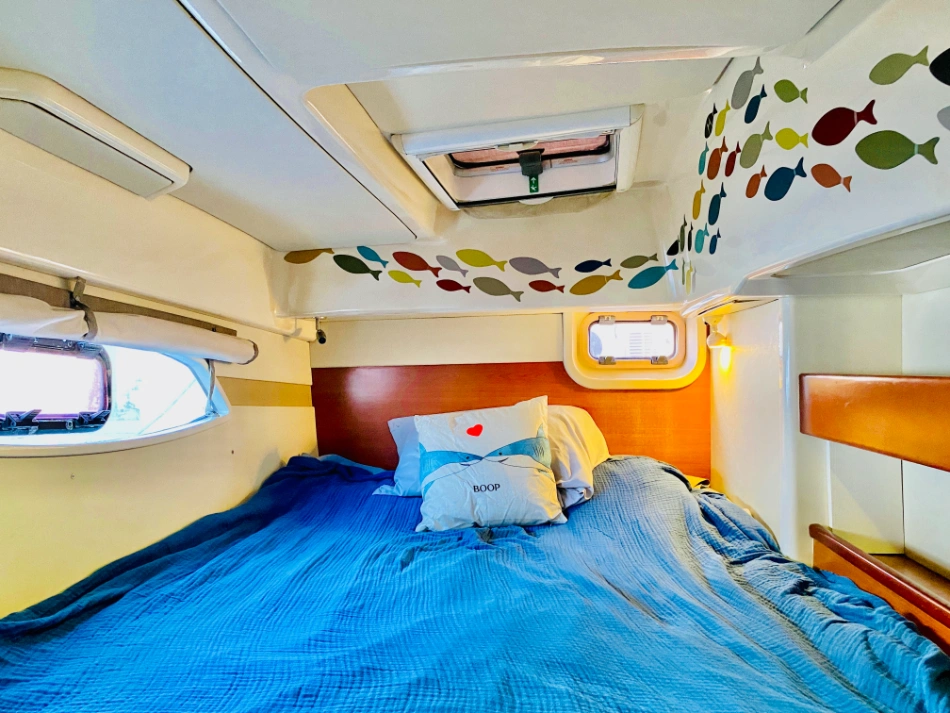

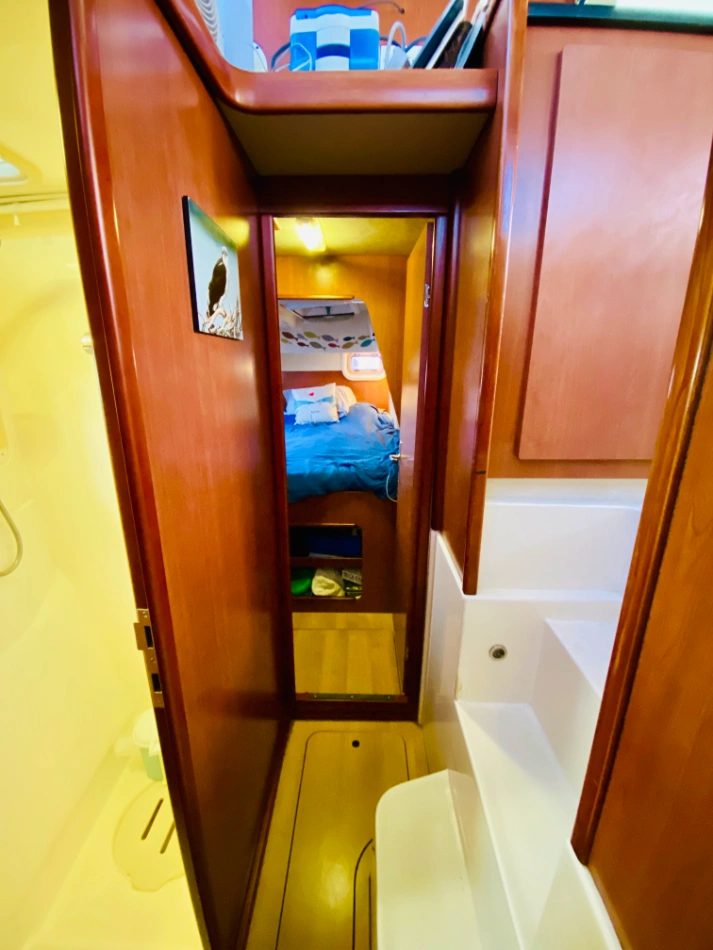

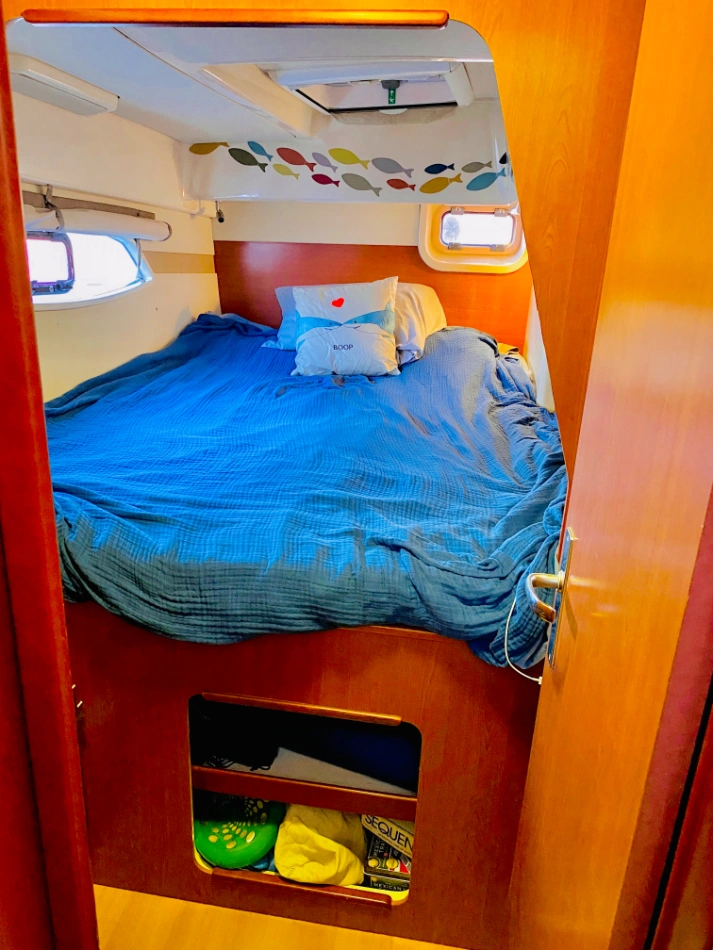

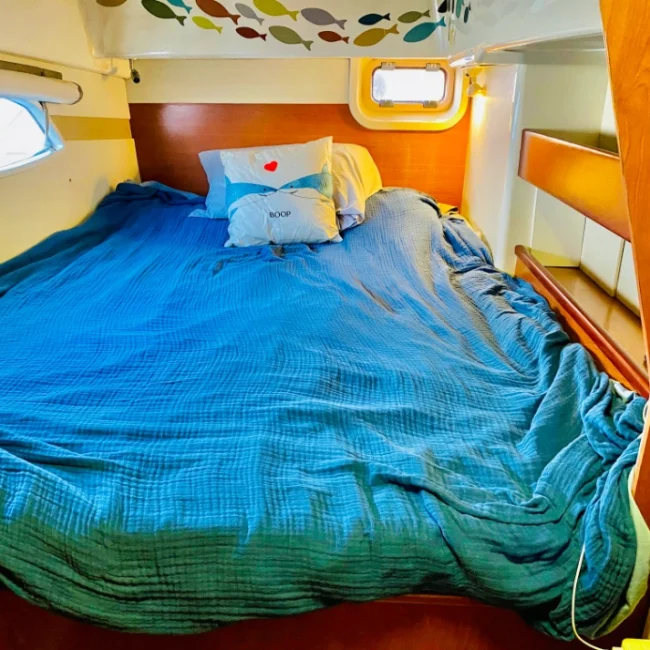

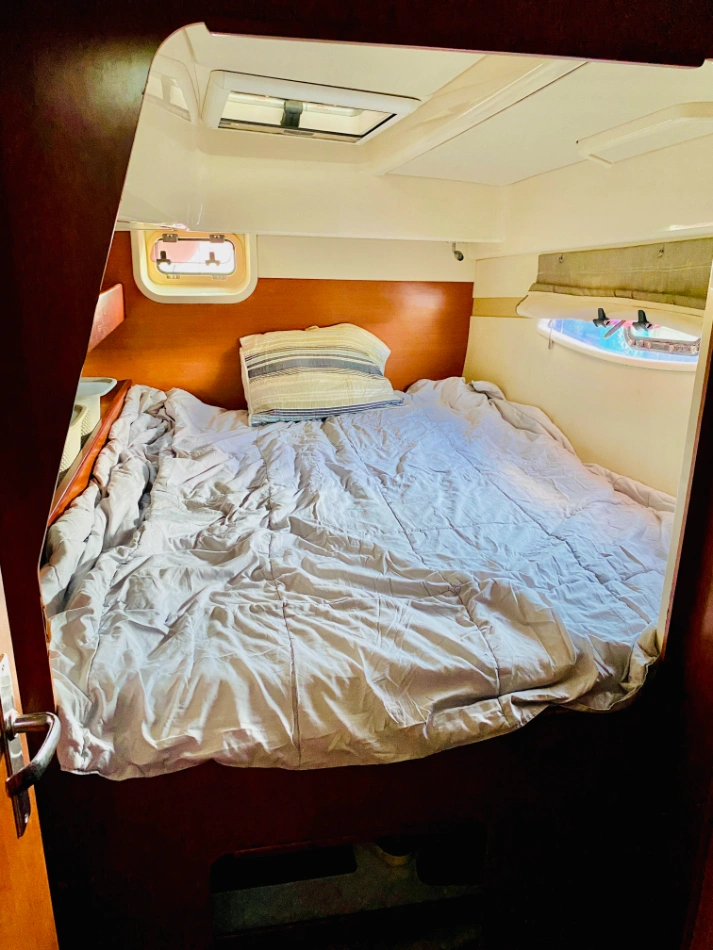

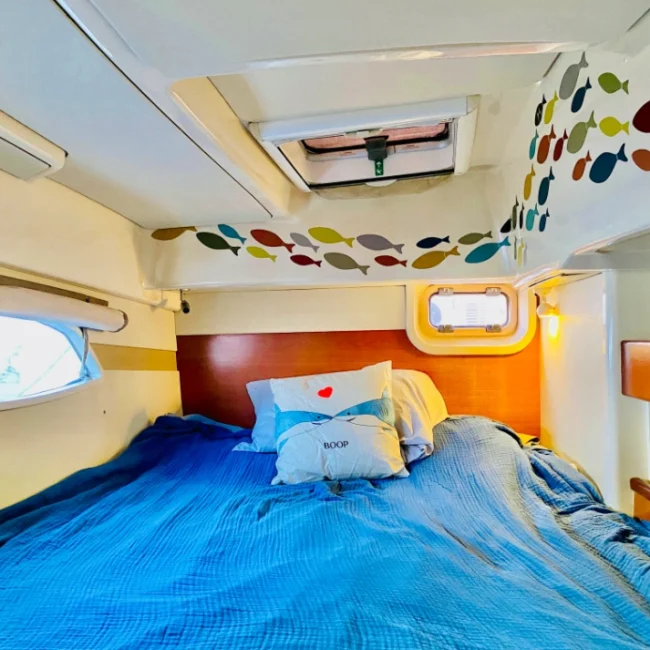

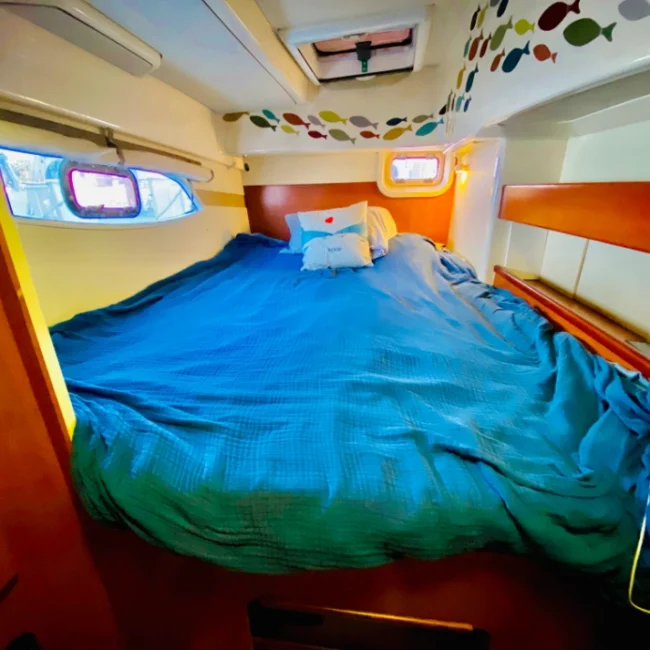

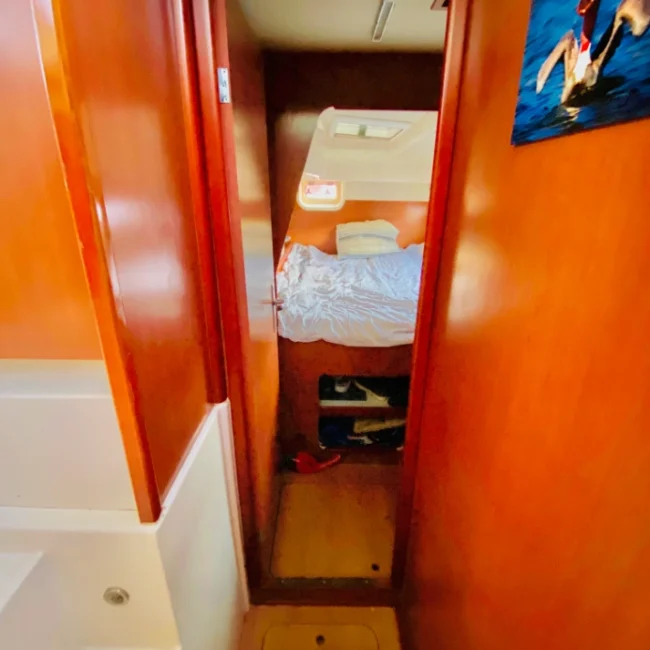

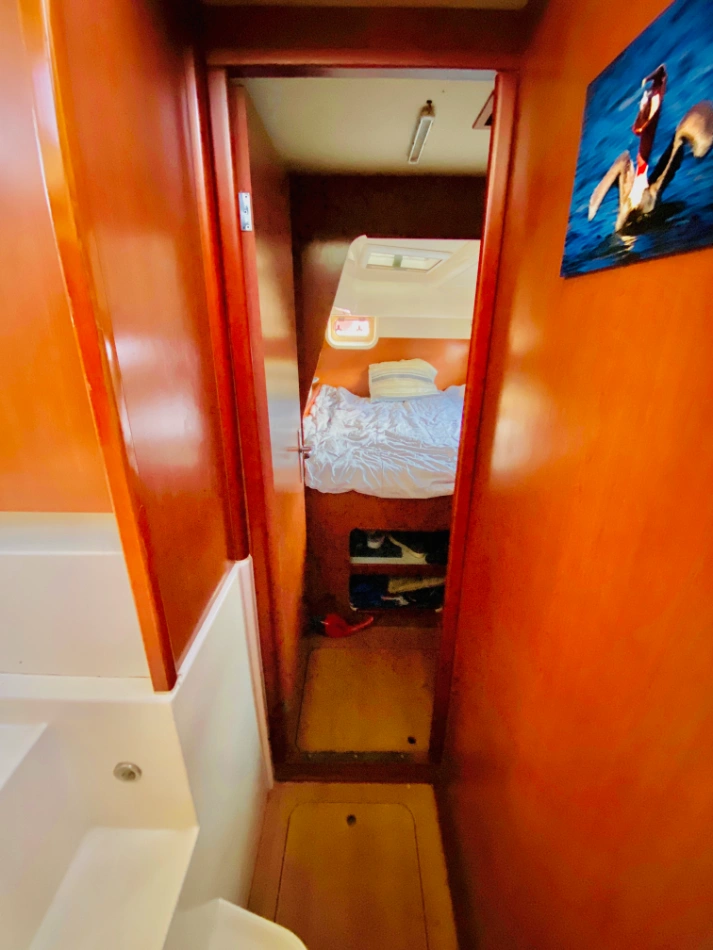

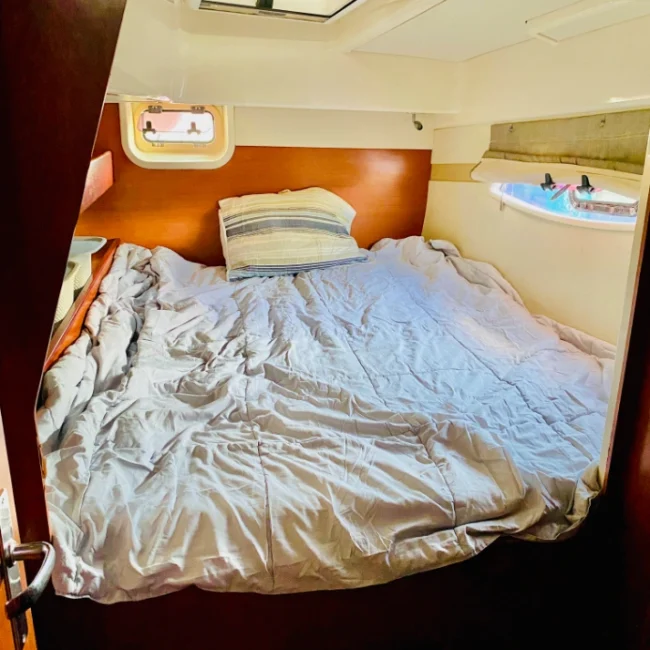

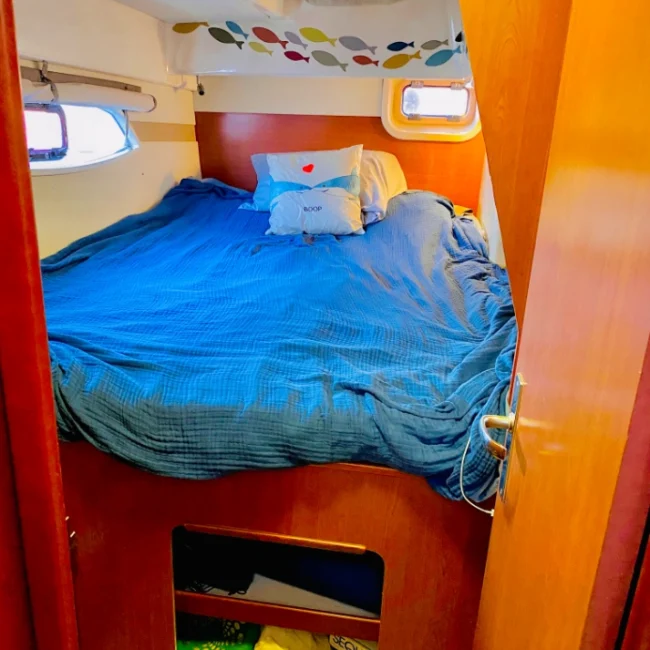

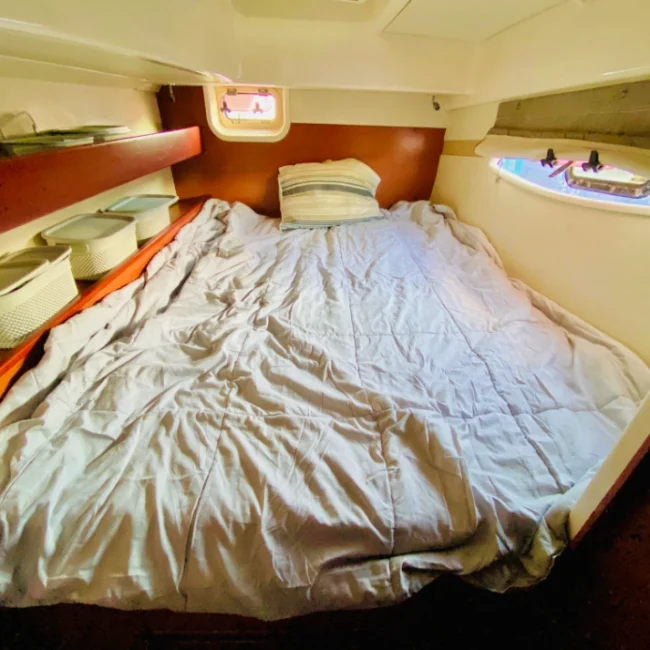

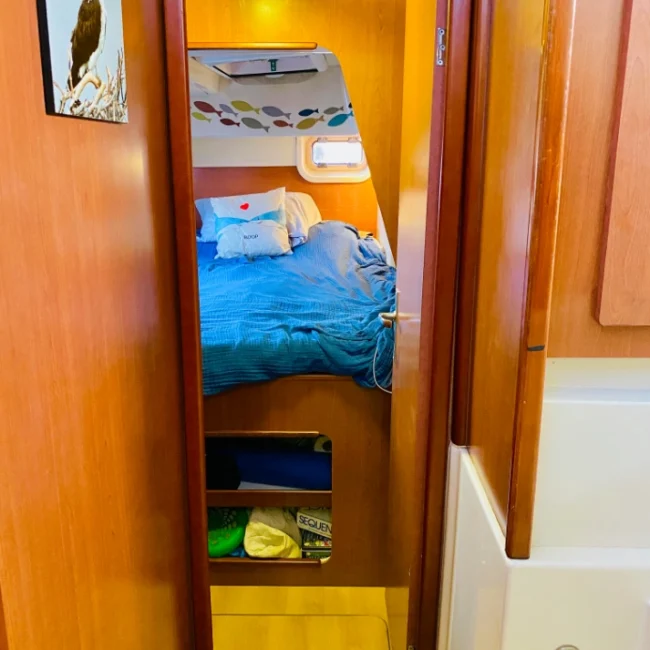

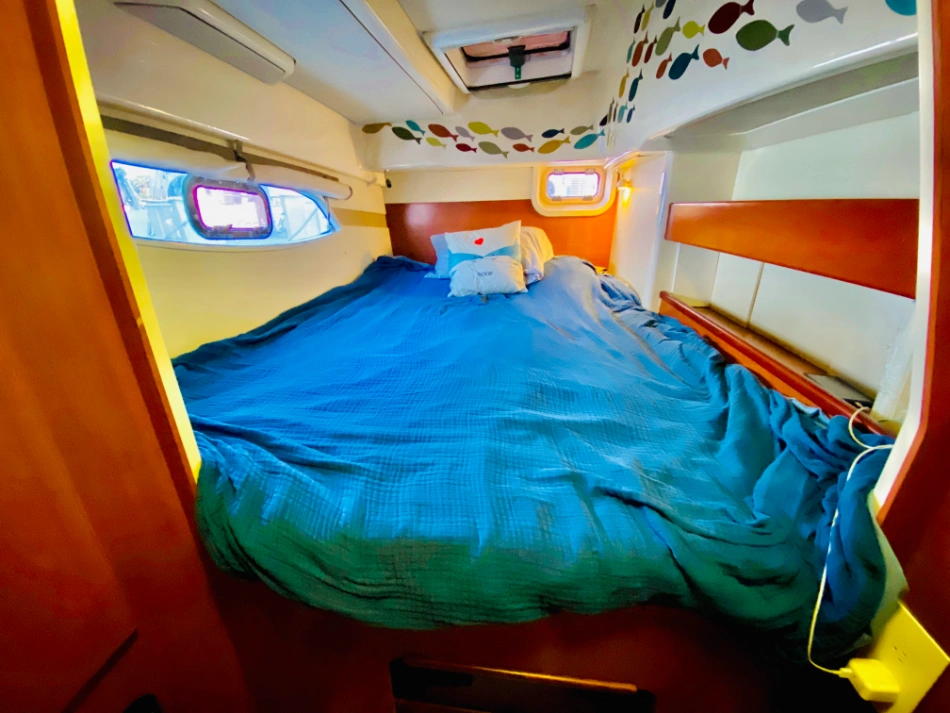

This Leopard 38 features a highly desirable four-cabin layout that provides exceptional flexibility for owners who enjoy cruising with family and friends. Each of the four private cabins is fitted with a comfortable double berth, storage lockers, and excellent natural ventilation, creating welcoming accommodations for overnight guests.

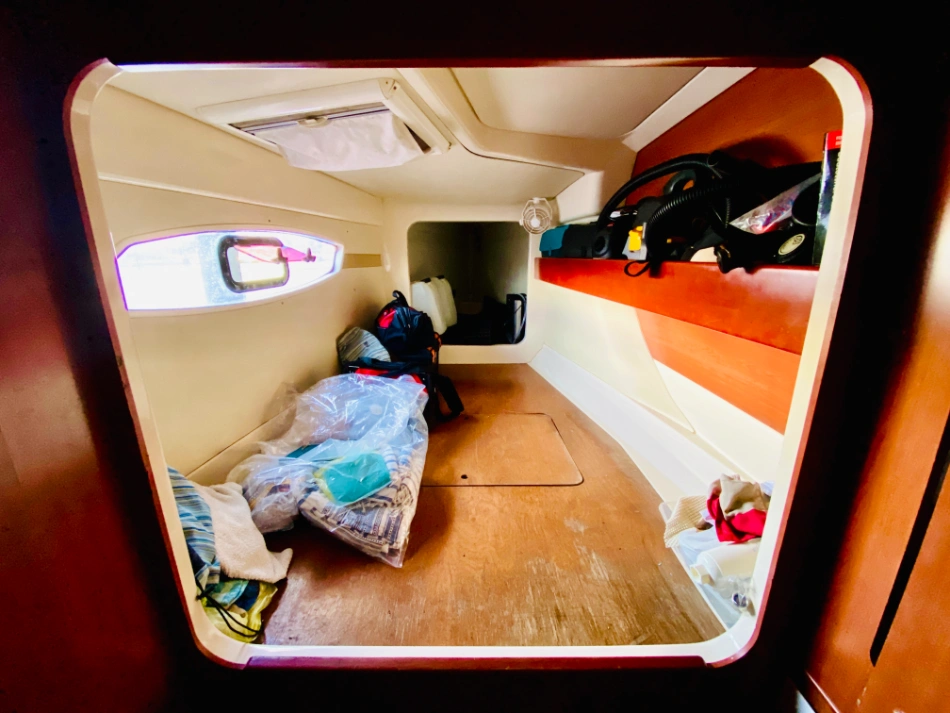

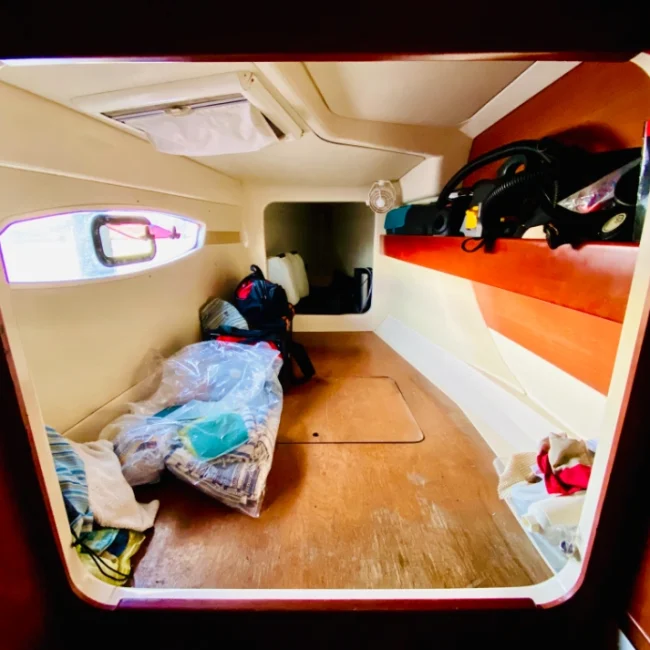

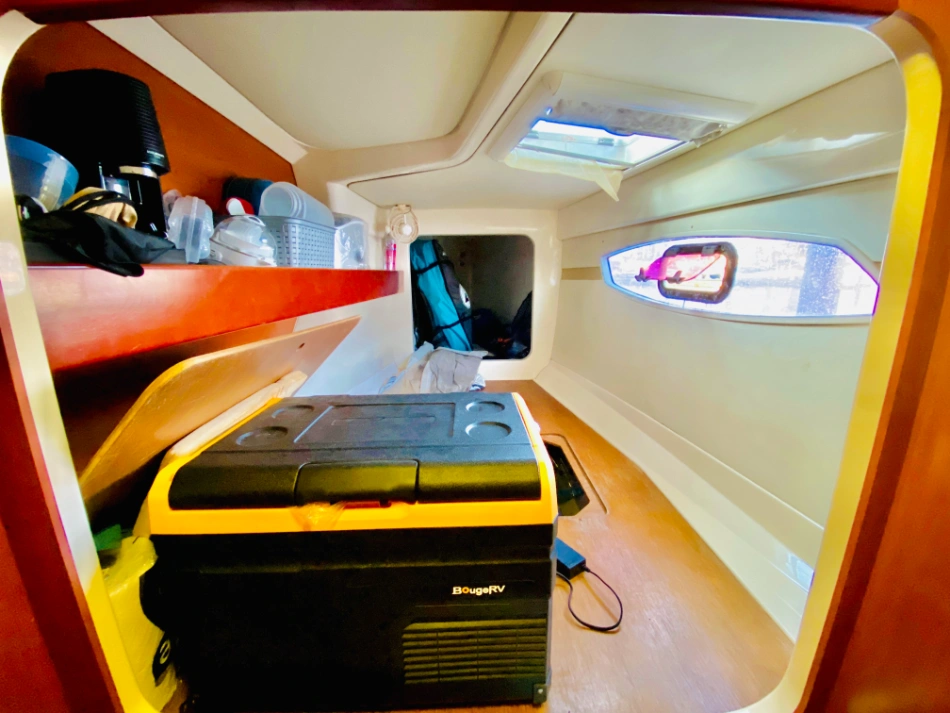

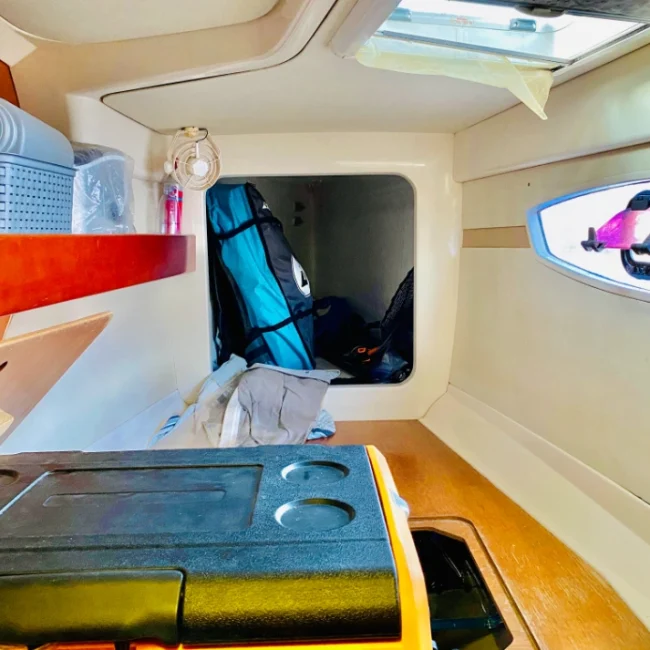

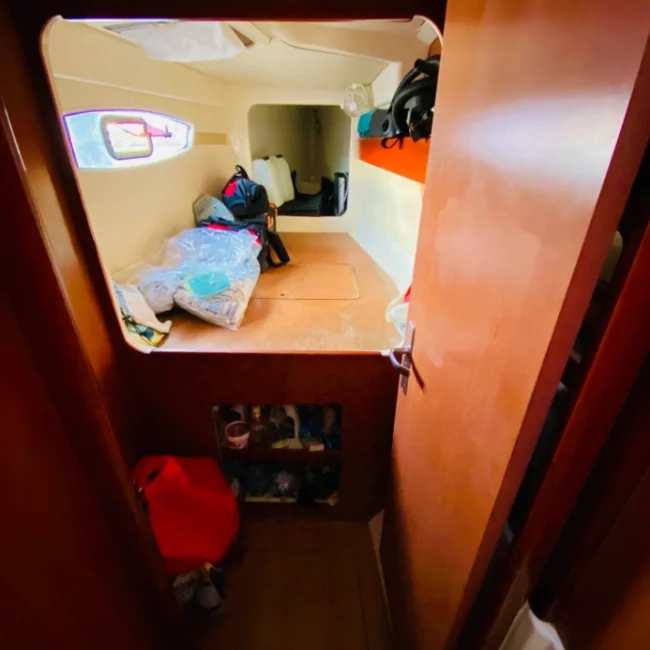

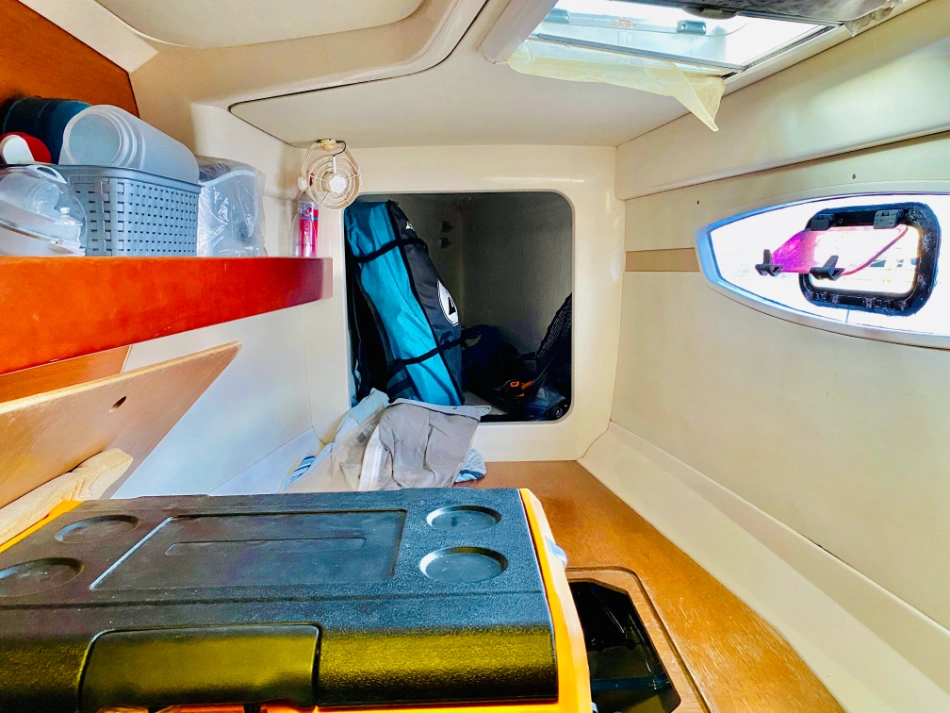

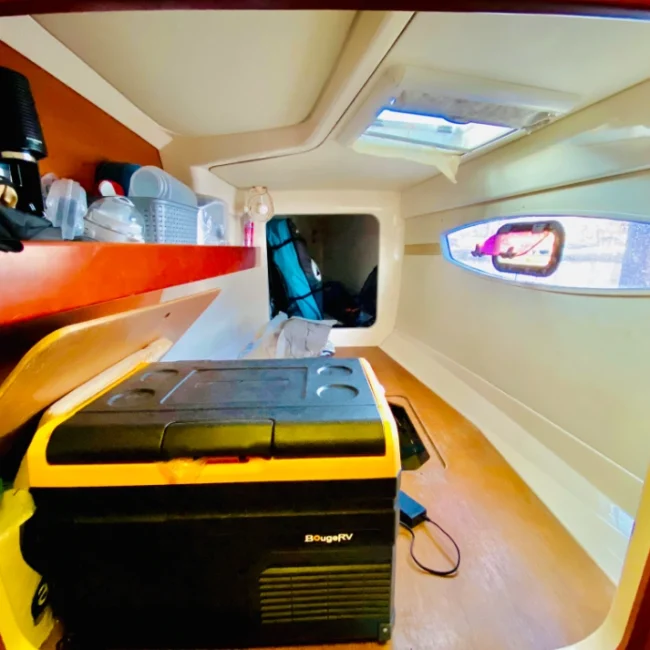

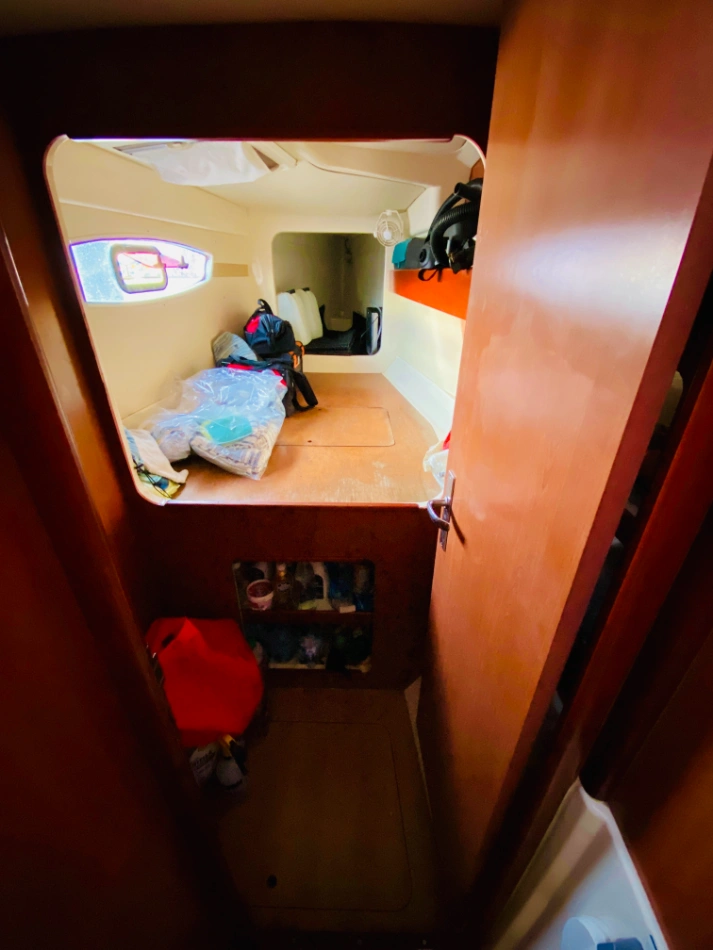

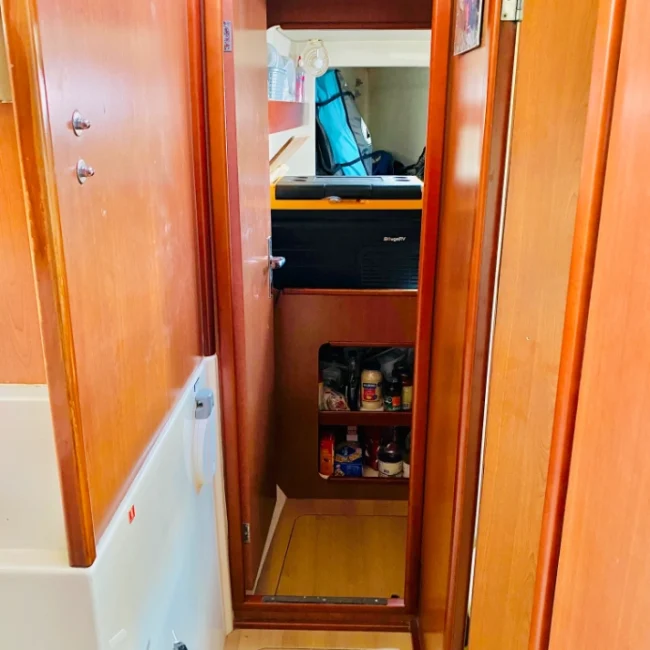

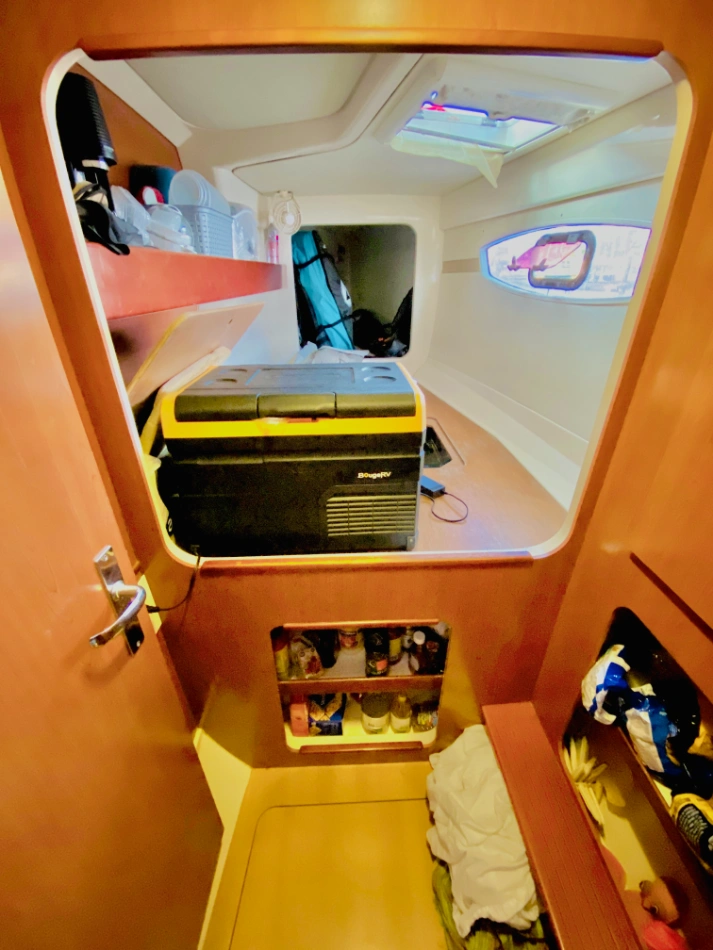

Additional single berths located in the forward bow compartments offer useful space for children, occasional guests, or extra storage, depending on the owner’s needs.
The thoughtful layout allows guests to enjoy privacy while still maintaining a comfortable and social atmosphere throughout the yacht.

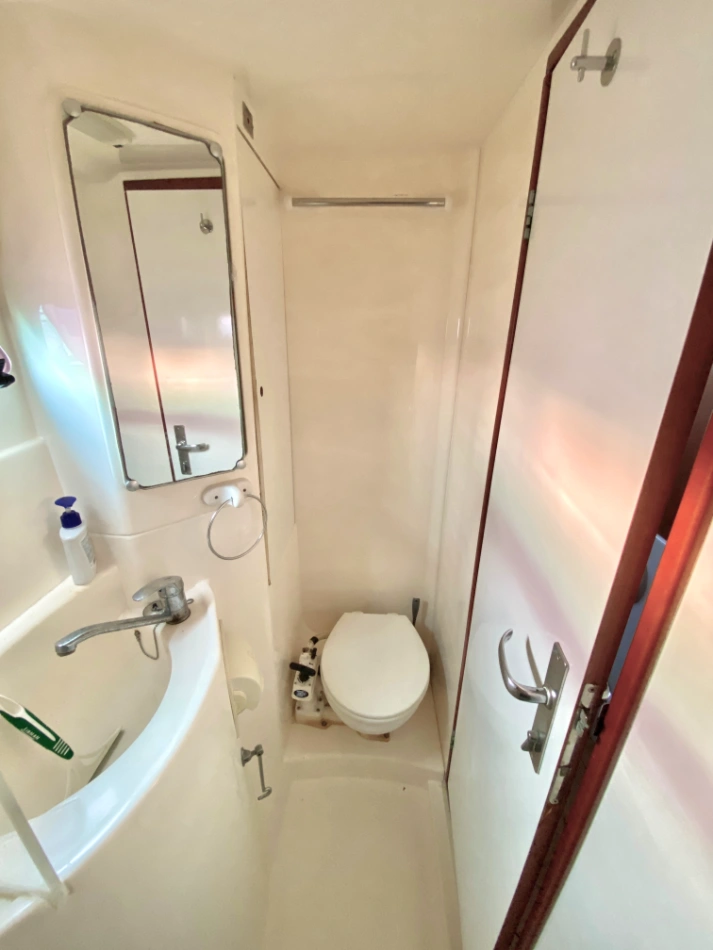

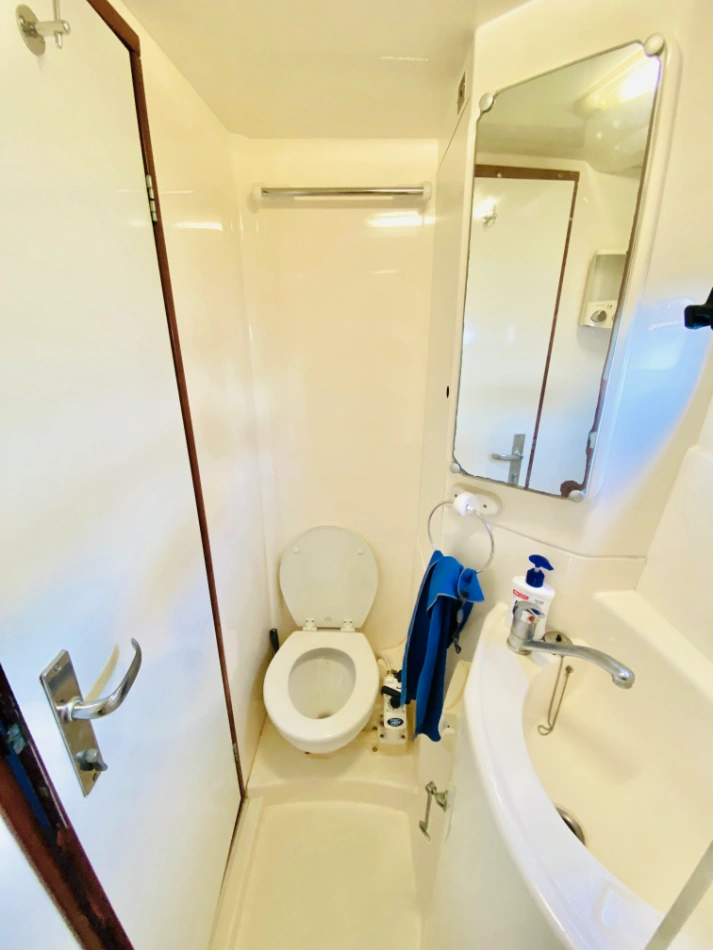

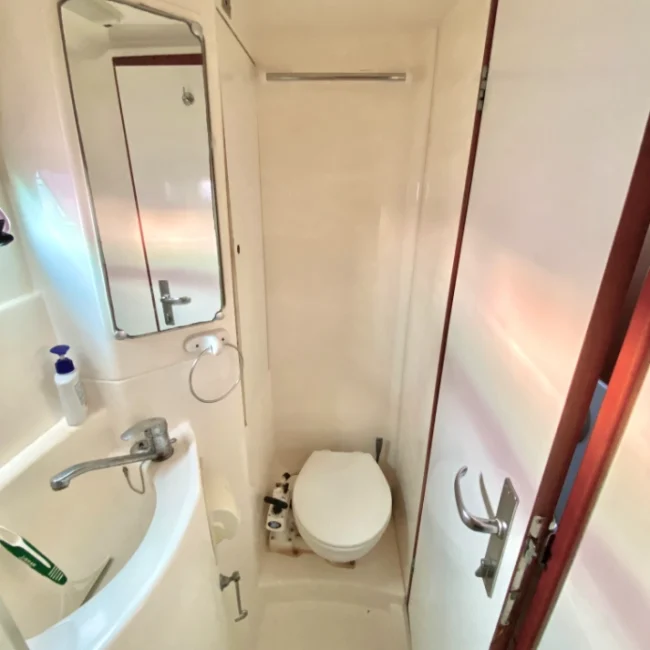

Heads & Comfort

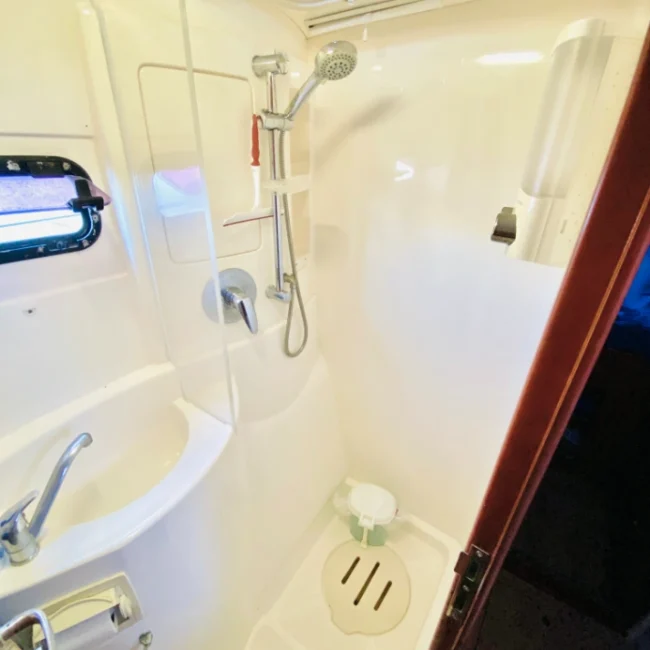

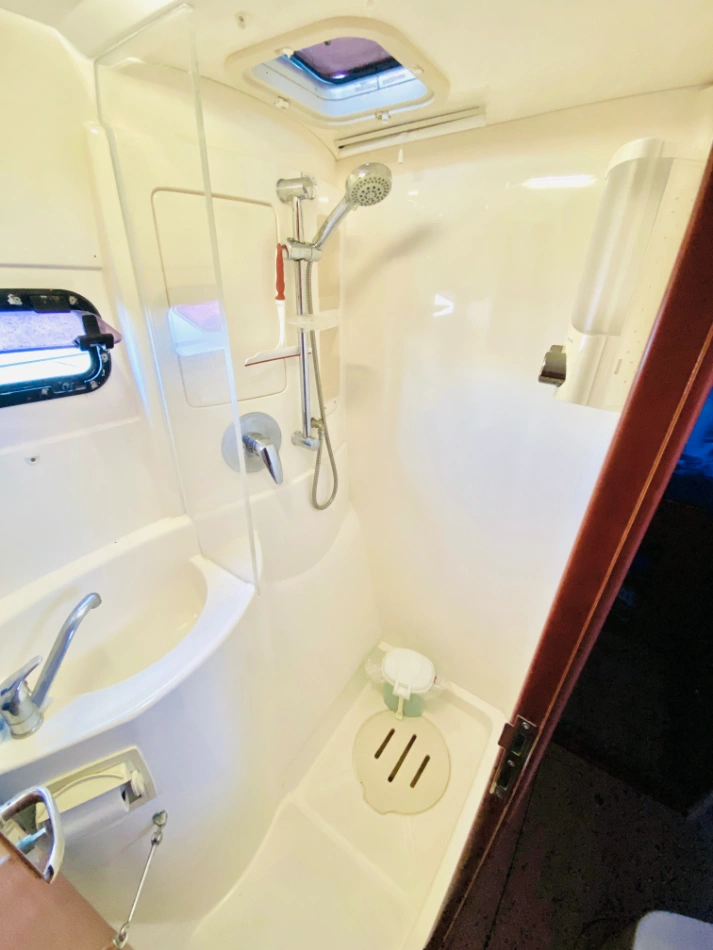

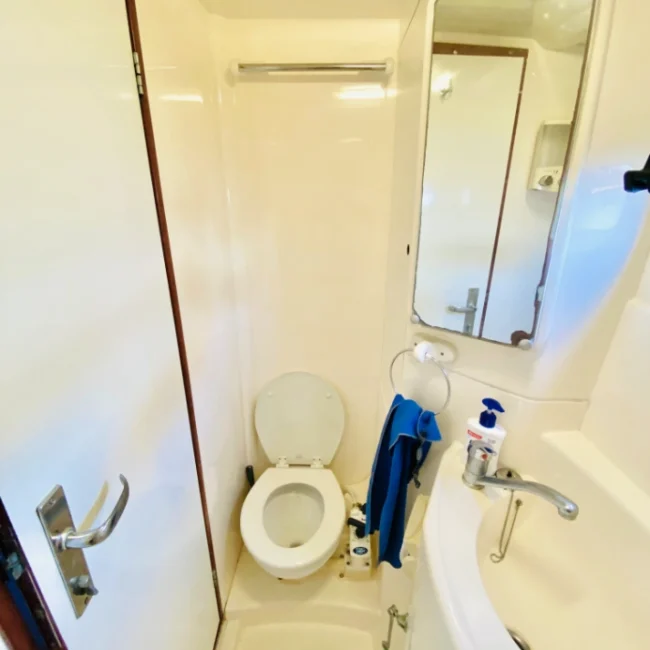

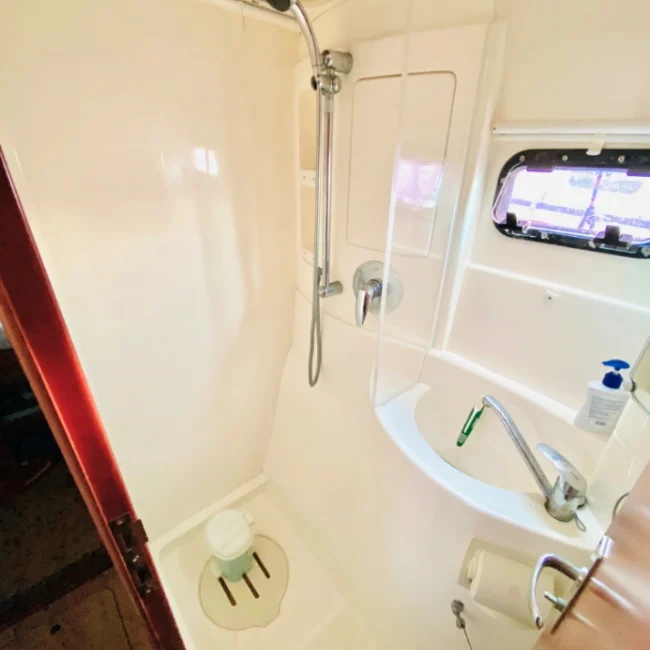

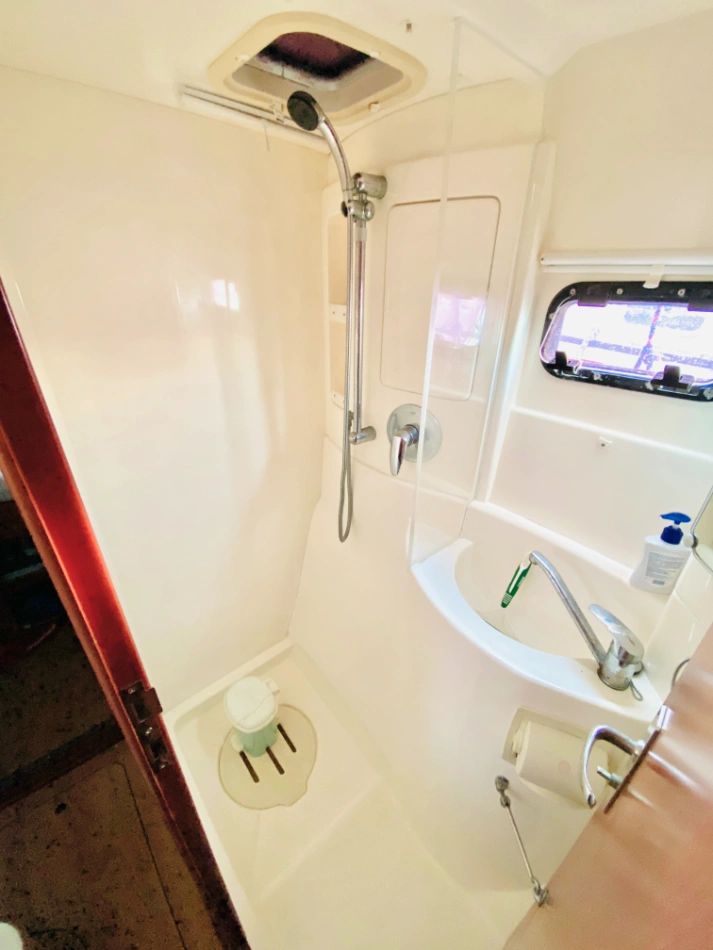

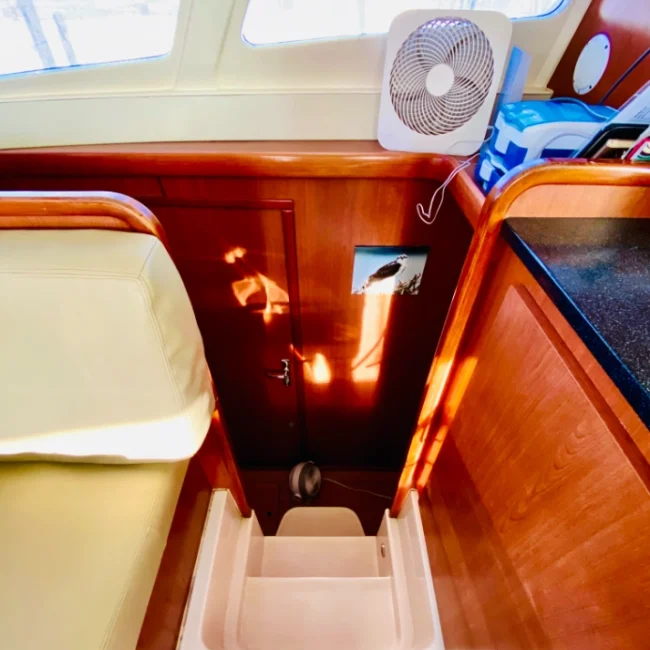

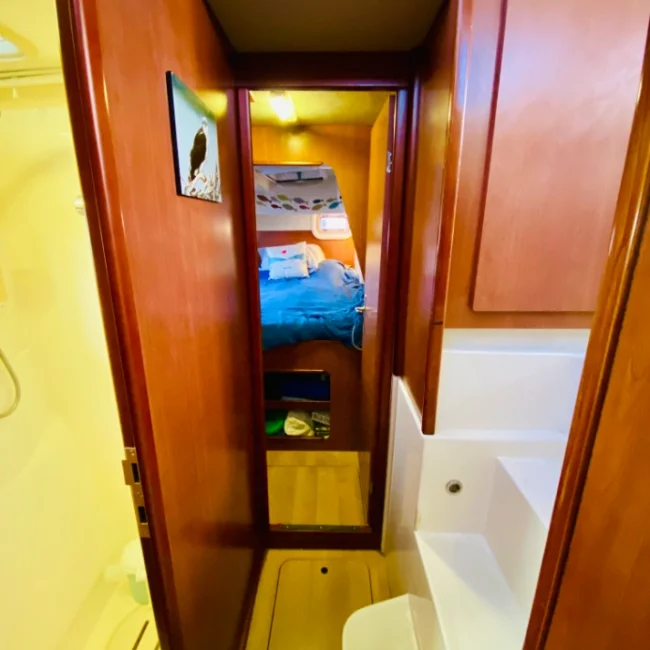

Each hull is equipped with its own dedicated “wet” head compartment, complete with marine toilet, vanity, sink, and shower. This arrangement provides convenient facilities for owners and guests while making efficient use of the available interior volume.
Storage is a standout feature throughout the vessel, and owners will appreciate the abundance of practical storage space. Lockers, cabinets, and dedicated stowage areas are integrated throughout the cabins, saloon, and galley, providing ample room for provisions, cruising gear, personal belongings, and water toys.
| # Cabins |
4 |
| # Heads |
2 |
| Types of Heads |
Wet with saltwater manual flush toilets |
| # Berths |
4 |
| Types of Berths Available |
Double Berths |
| # People Accommodated (Sleeping) |
8-10 |

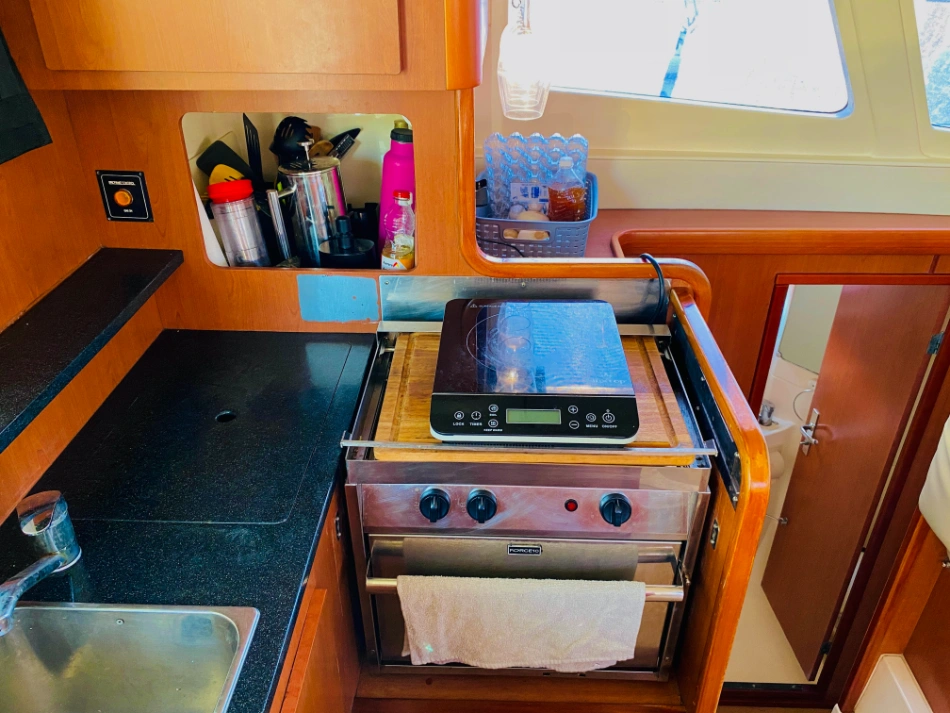

Galley
| Fridge / Freezer |

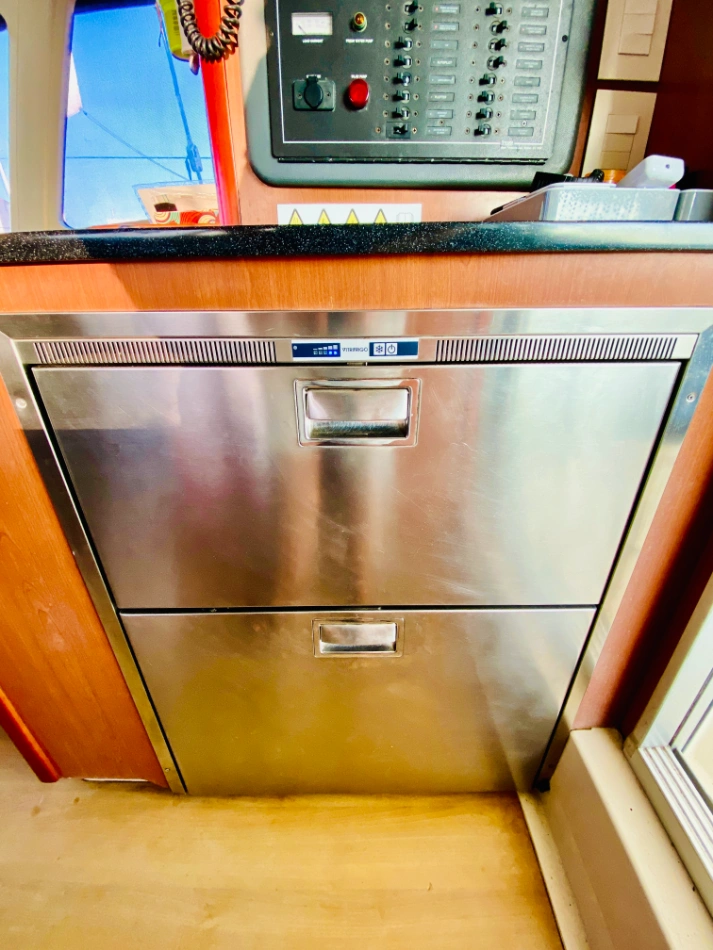

Vitrifrigo DW 210 refrigerator / freezer combo (Replaced 2012/2017) |

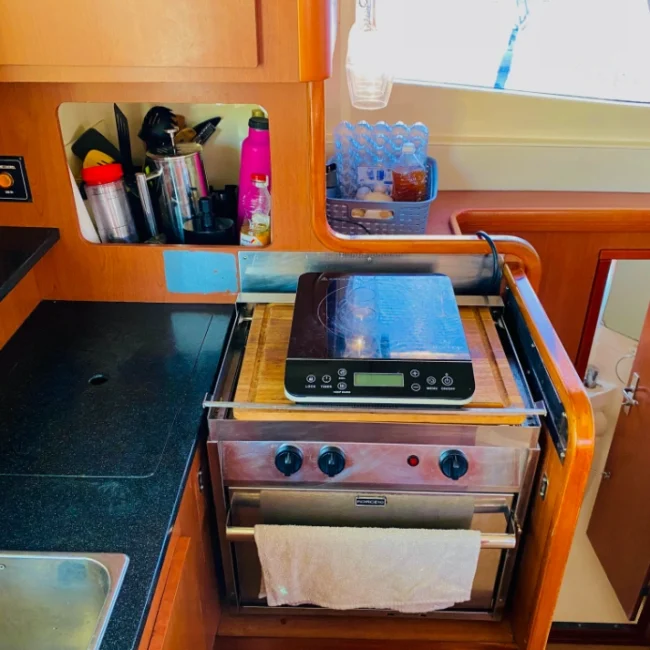

| Stove |
Force 10 2-burner LPG Range |
| Microwave |
N/A |

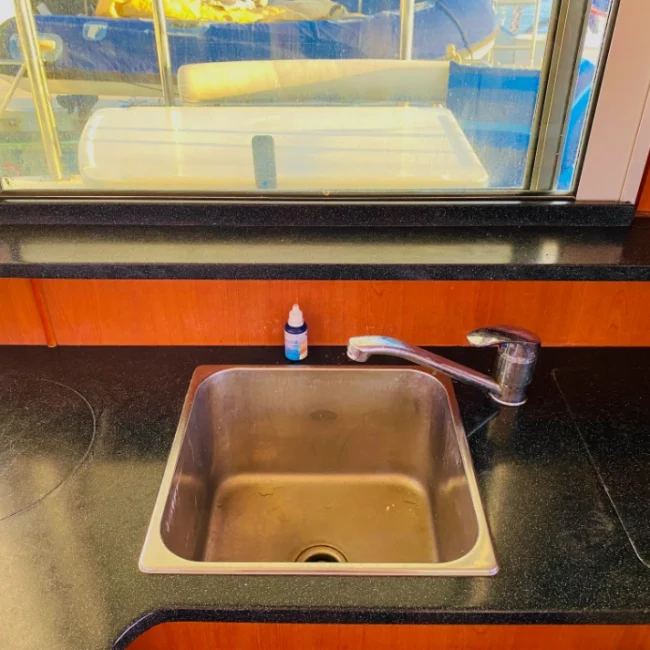

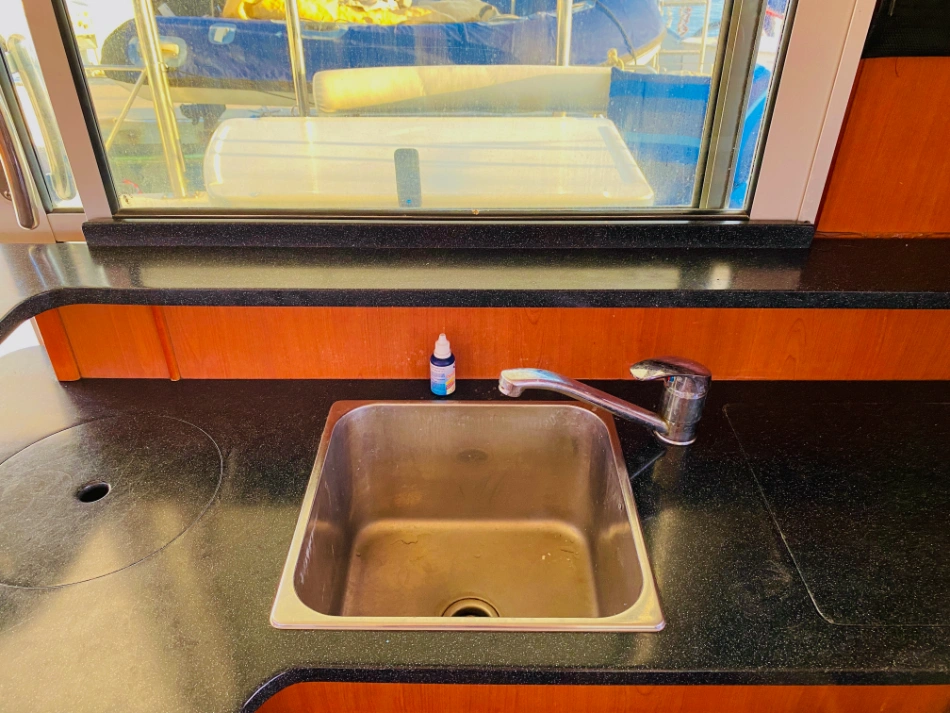

| Sink |
Single Basin, Fresh Cold Water, Fresh Hot Water, Pressurized System |
| Dishwasher |
N/A |
| Garbage Disposal |
N/A |
Electronics and Navigation Equipment
| AIS Receiver |
Raymarine AIS 700 B (New 2019) |
| AIS Transponder |
Raymarine AIS 700 B (New 2019) |
| Autopilot |
Raymarine SmartPilot X-Series Autopilot + GPS (New 2020) |
| Chartplotter |
Raymarine SmartTalk ST60+ Chartplotter with Navionics (Mexico, Caribbean & Brazil maps) |
| Compass |
Plastimo |
| Depth Sounder |
Raymarine ST60+ |
| GPS |
Raymarine SmartPilot (New 2020)
Raymarine RS150 (New 2020)
Raystar RS125 |
| Hailer |
N/A |
| Knot Meter / Log |
Raymarine ST60+ |
| Radar |
Raymarine Quantum 2 Q24D (New 2019) |
| Radar Alarm |
Yes |
| Rudder Angle |
Raymarine SmartPilot (New 2020) |
| Stereo |
Sony FM/Am compact disc player |
| VHF |
Raymarine Ray 55 |
| Wi-Fi / Starlink |
Starlink-ready wiring |
| Wind Speed and Direction |
Raymarine ST60+ and Windex |
| Comments |
WeBoost Drive 4G/x – w/ Marine Antenna (New 2019) |

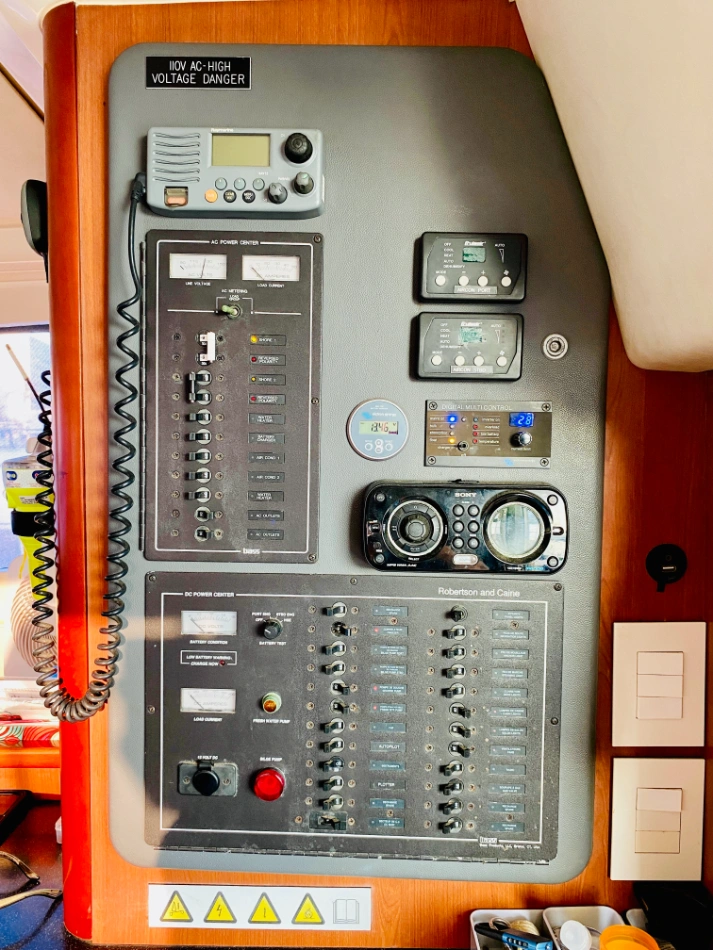

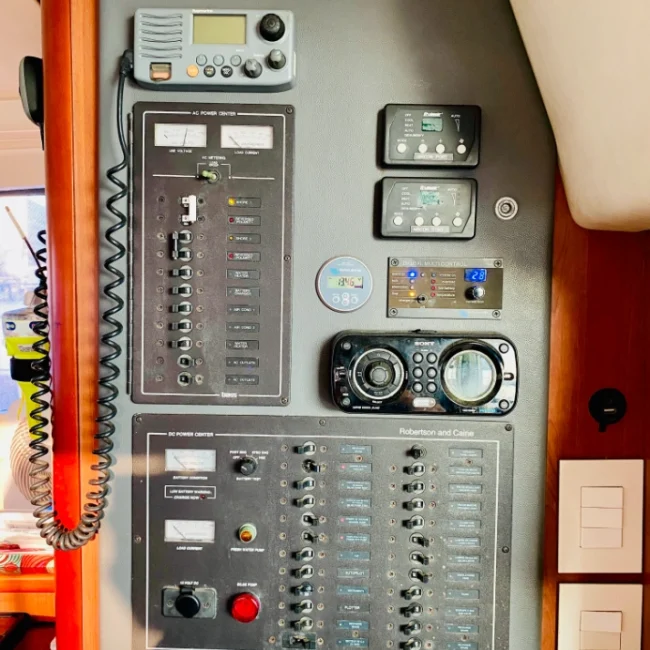

Electrical Systems
| Batteries |
House Bank: x3 Victron 300 LiPo4 lithium batteries, Total 900 amp-hours (New 2018)
Start Bank: x2 AGM 92 Amp-Hours each (NEW 2023 & 2024) |
| Battery Switch |
Victron V.E Bus BMS |
| Battery Monitor |
Victron BMV 700 |
| Electrical System |
110vAC / 12vDC |
| Inverter |
Victron Multiplus 3000 120 amp inverter/charger |
| Battery Charger |
Victron Centaur 2v-40 amp |
| Smart Regulator |
Victron Smart Solar Charger MPPT 50/100 TR (New 2019) |
| Solar Panels |
1200 watts of solar panels (New 2018) |
| Wind Generator |
N/A |
| Alternator |
Balmar 60 Series, 100A (New 2019) |
| Generator |
N/A |
Sails & Rigging
| Total Sail Area |
991 sq.ft. / 92 sq.m. (SailboatData) |
| Mainsail |
Ulman 613 ft. main (NEW 2024) |
| Jibs / Headsails |
Ulman 370 headsail (NEW 2024)
Ulman Code Zero (New 2020) |
| Roller Furling |
Selden roller furler for Code Zero (New 2020)
Z-Spark UK Genoa roller furler |

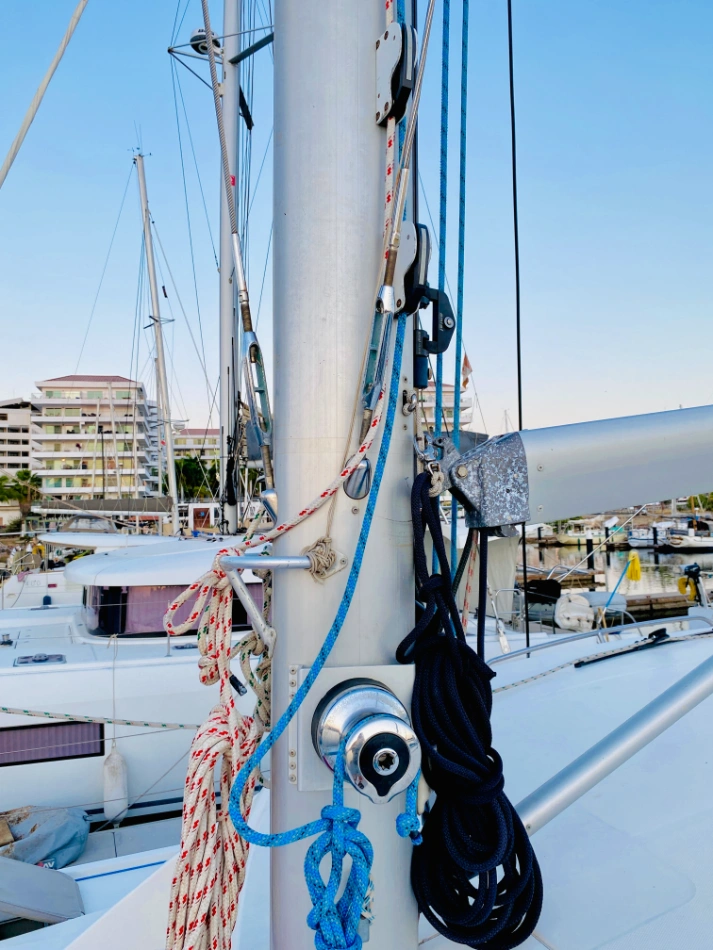

| Winches |
x2 Harken 46 2-speed self-tailing
x2 Harken 40 2-speed self-tailing |

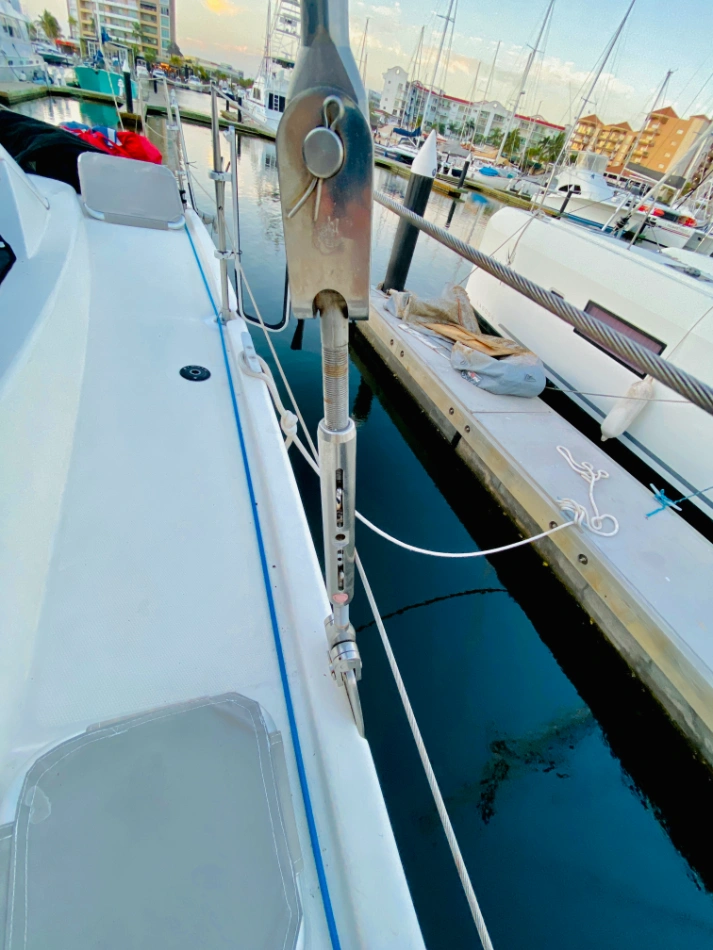

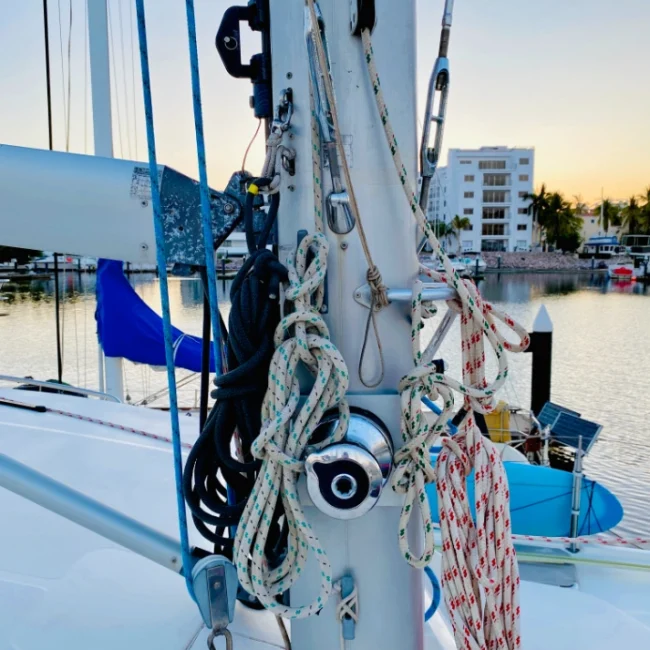

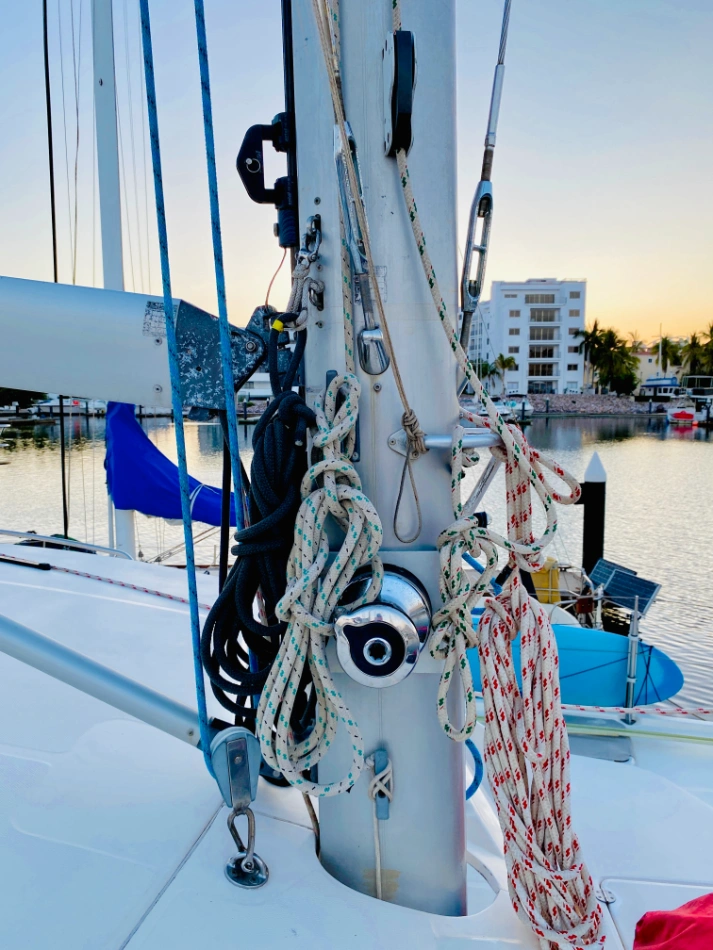

| Mast |
Aluminum |

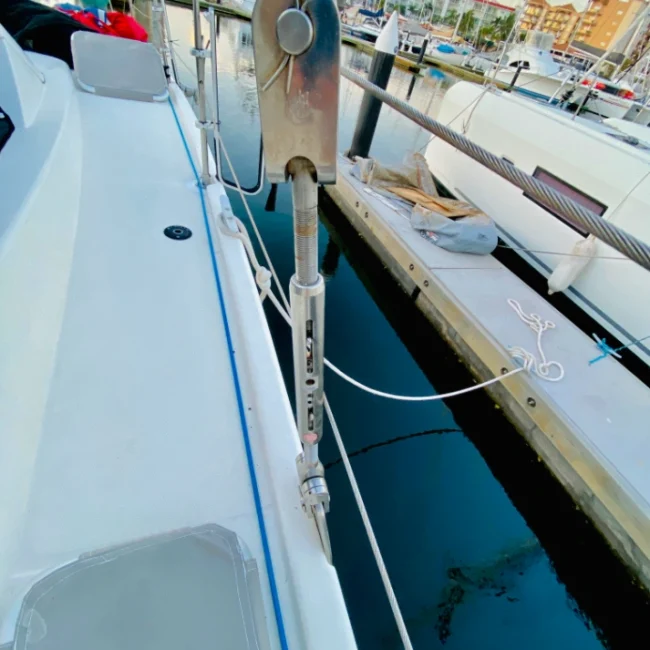

| Standing Rigging |
New standing rigging with SS wire, StaLok terminals, Chrome/bronze turnbuckles (2019) |
| Running Rigging |
Replaced 2024 |
| Boom Vang |
Spring Loaded |
| Lines Led Aft |
Yes, all to pilot bridge |
| Comments |
Harken fairleads & sheet blocks |

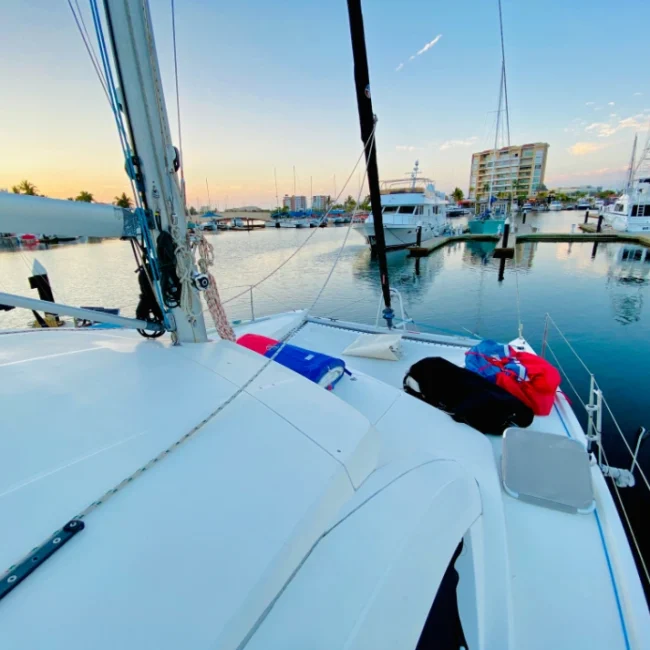

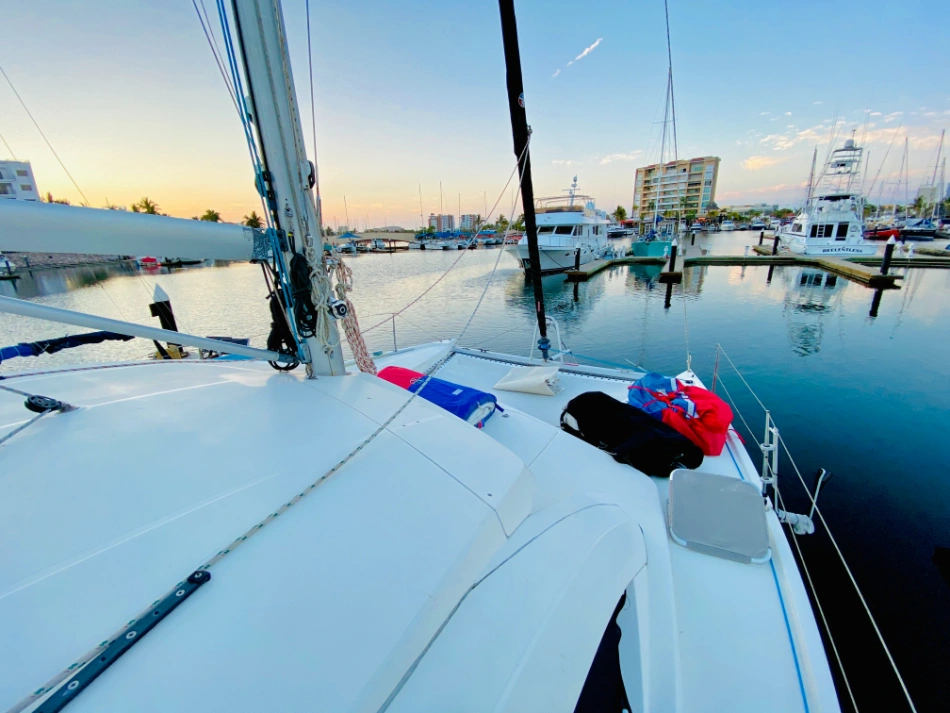

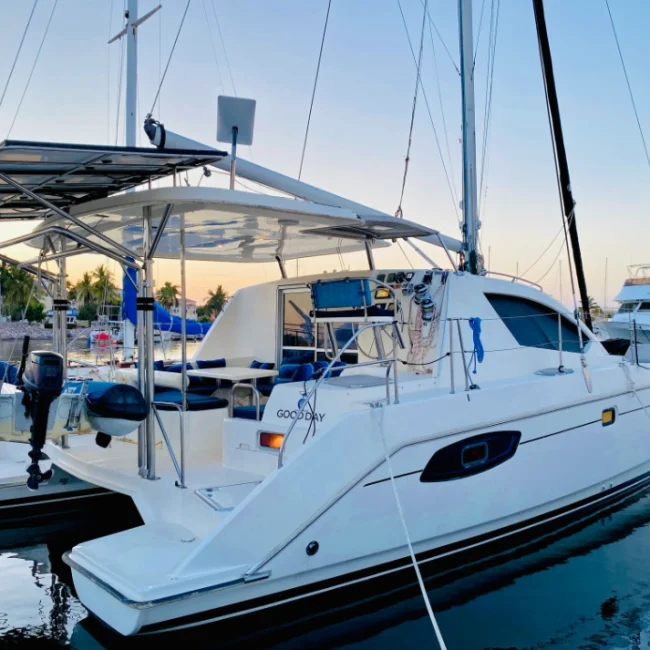

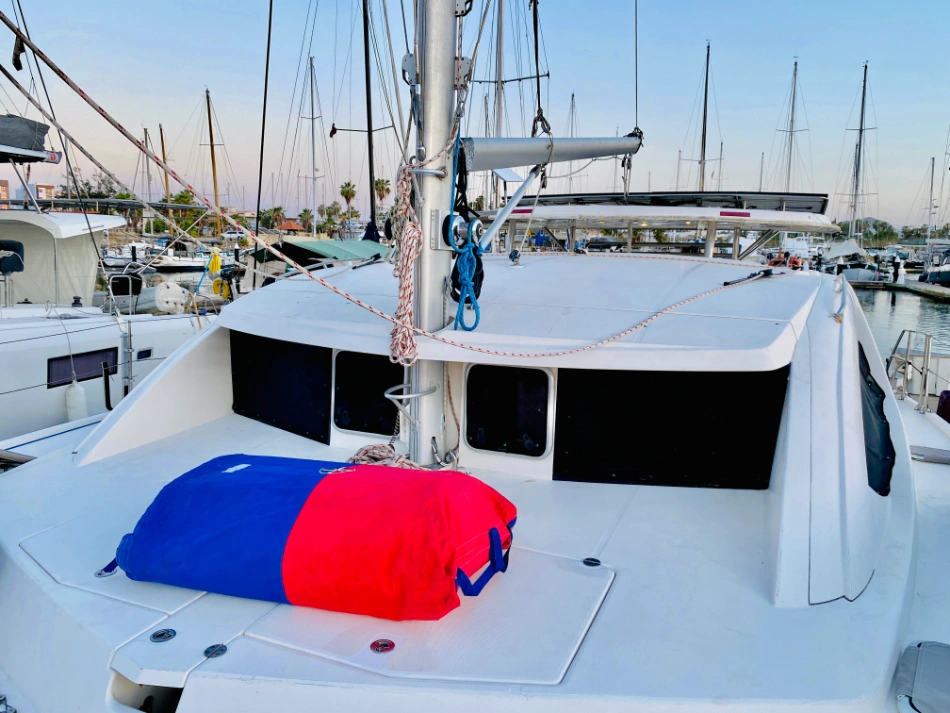

Deck

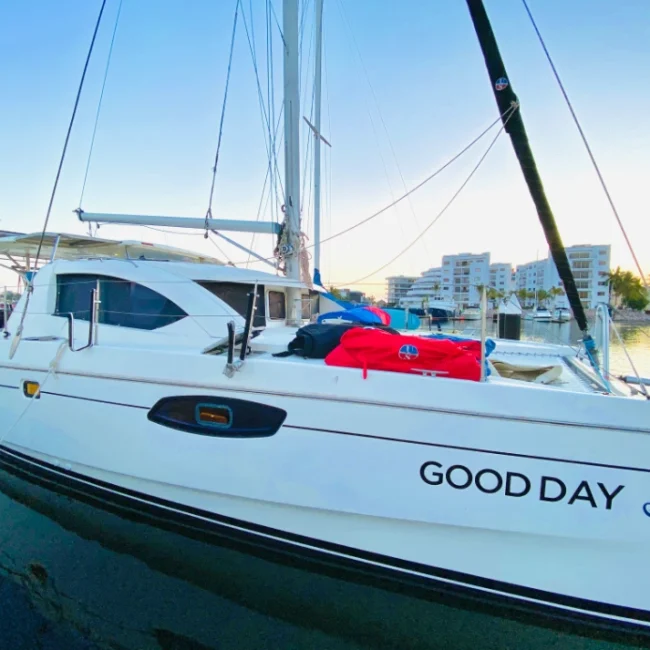

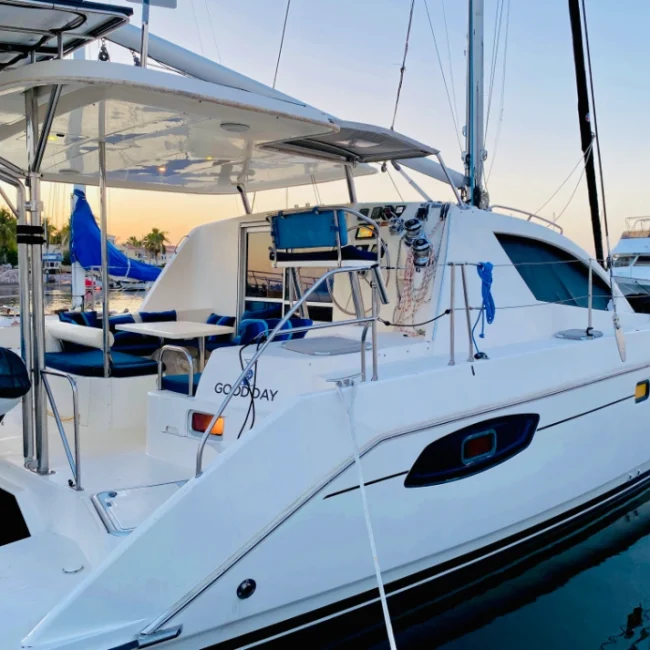

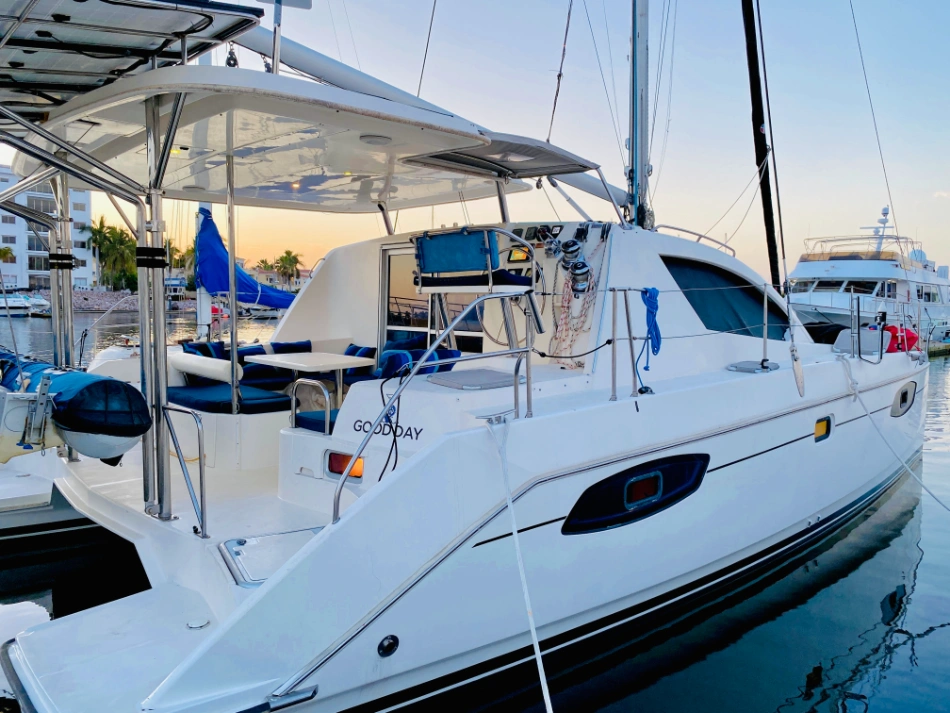

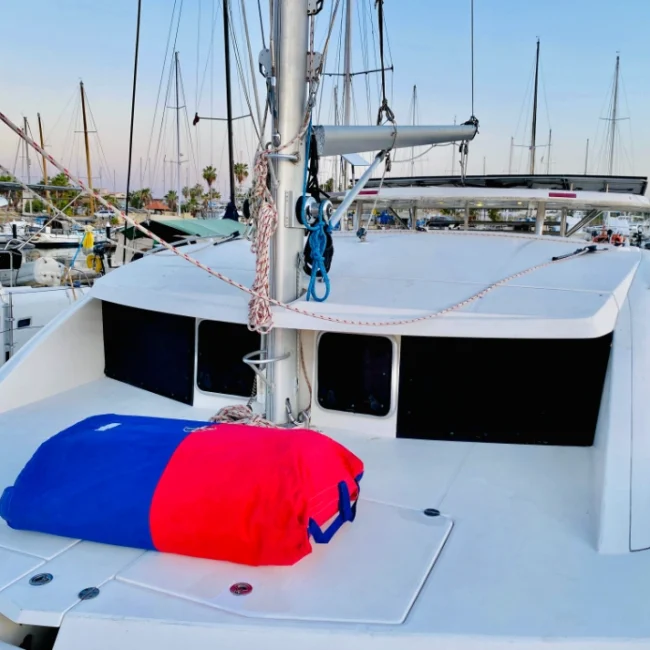

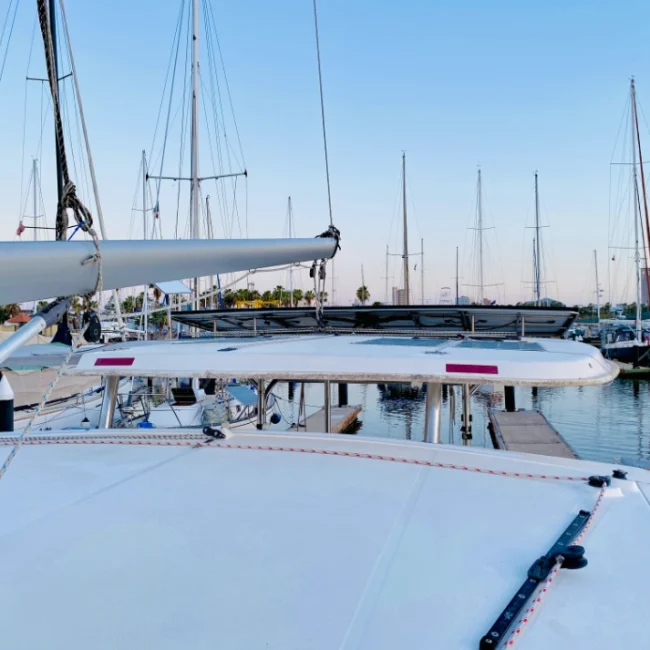

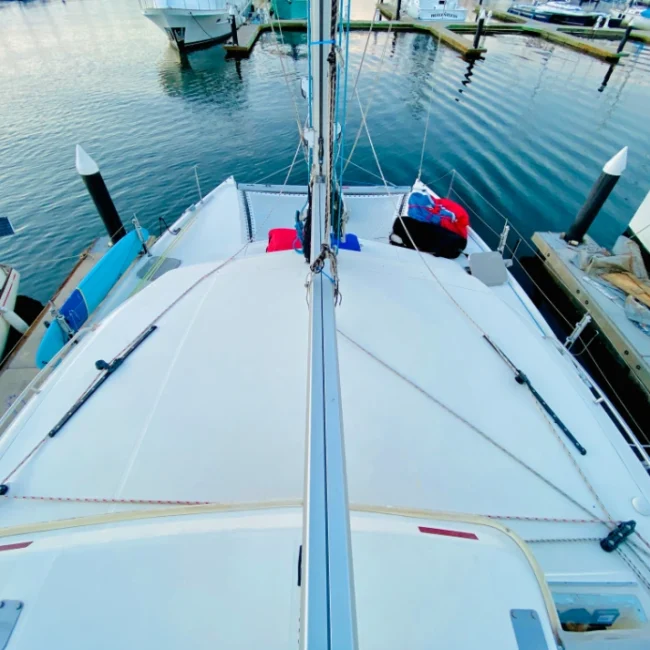

The Leopard 38 has earned a reputation as one of the most practical and capable cruising catamarans in its size range, combining efficient sailing performance with the comfort and livability that have made the Leopard brand a favorite among cruising sailors worldwide.
Built using vacuum-bagged, balsa-cored composite construction with solid fiberglass below the waterline, the Leopard 38 benefits from a strong yet lightweight structure that contributes to both performance and durability. Designed by renowned multihull architects Morrelli & Melvin, the hulls feature their distinctive stepped profile, creating narrow waterlines for improved efficiency and reduced drag while maximizing interior volume above the waterline.
Under sail, the Leopard 38 is known for its ability to maintain respectable cruising speeds with minimal effort, while the generous bridge deck clearance helps reduce the pounding and slamming often experienced aboard smaller catamarans when sailing into head seas. This translates into a smoother, more comfortable ride for crew and guests during extended passages.

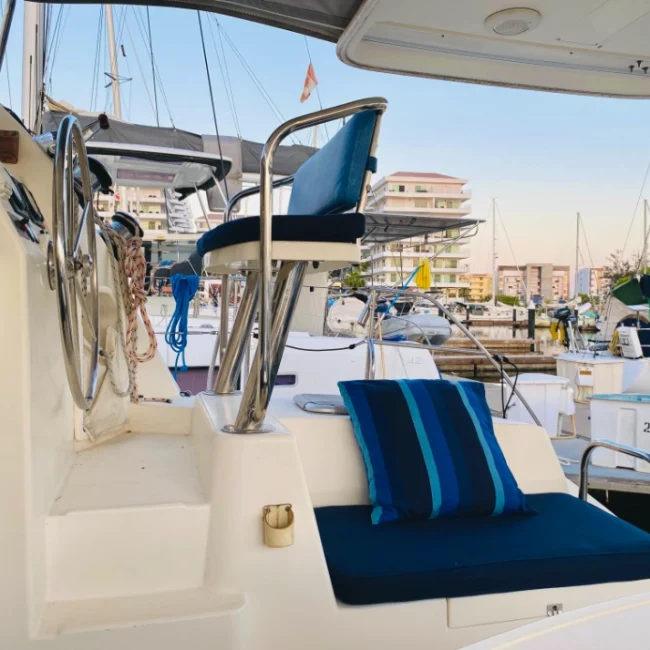

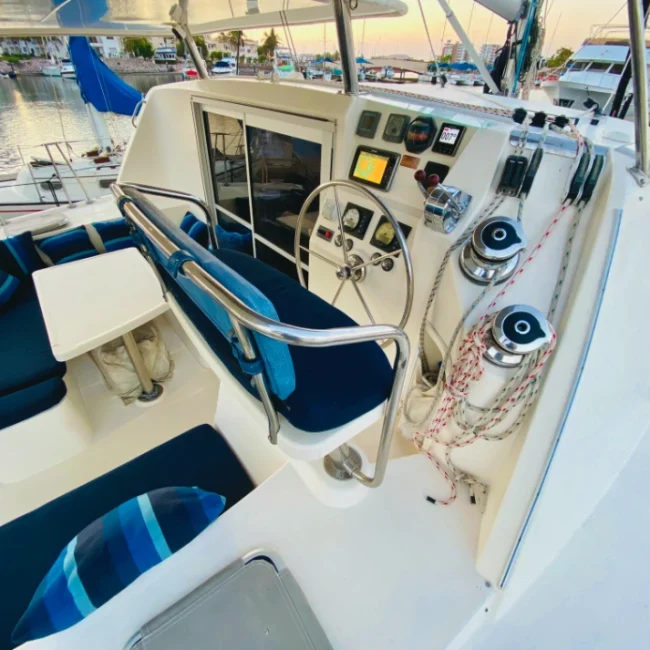

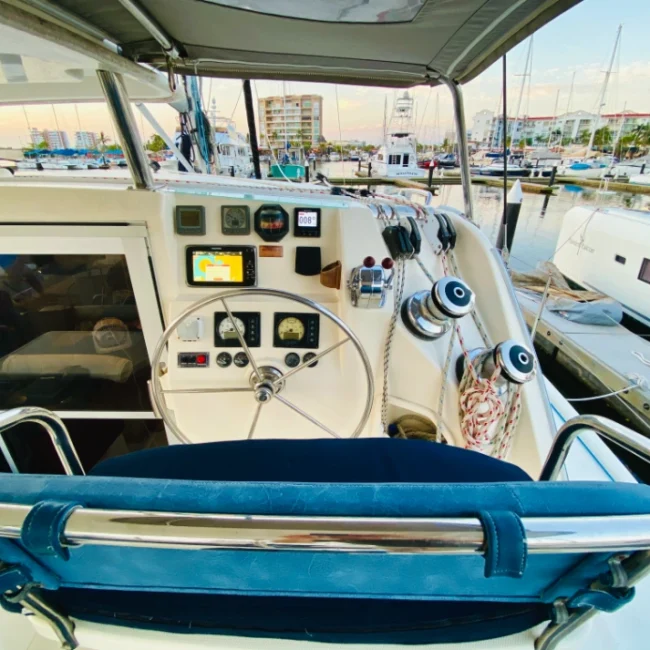

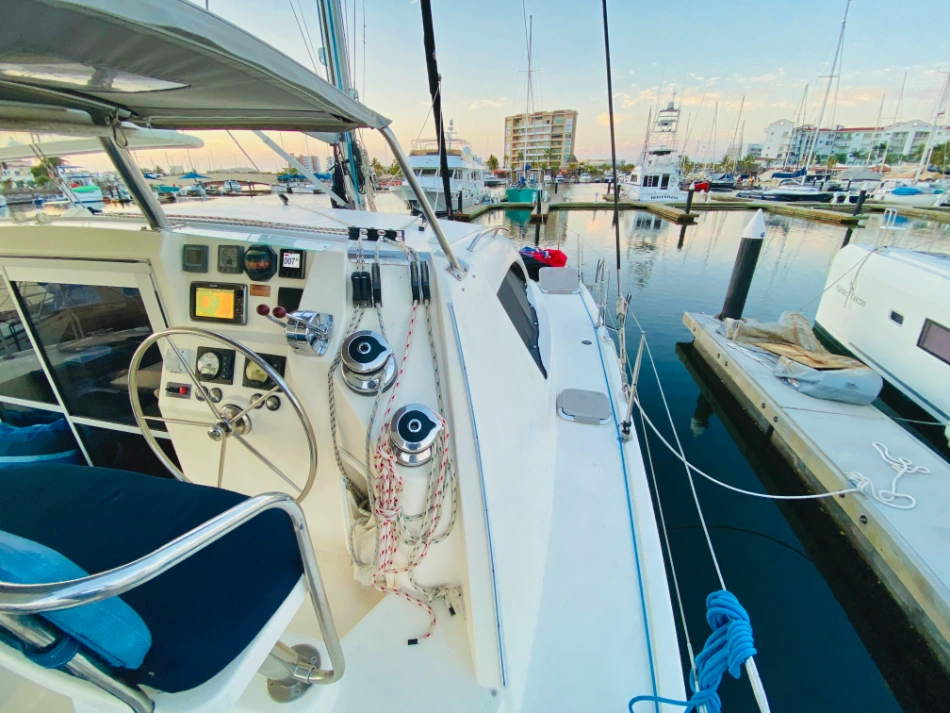

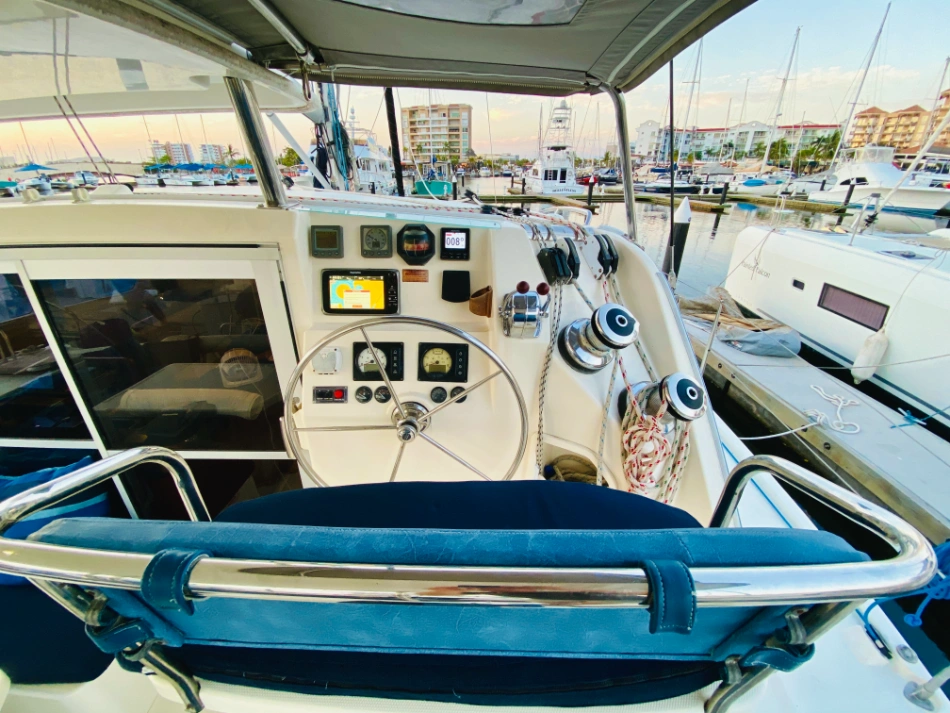

Helm & Sail Handling

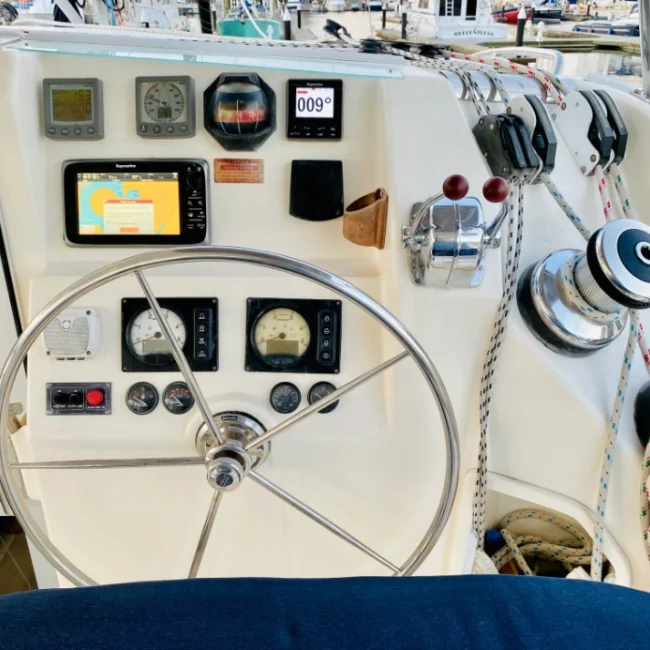

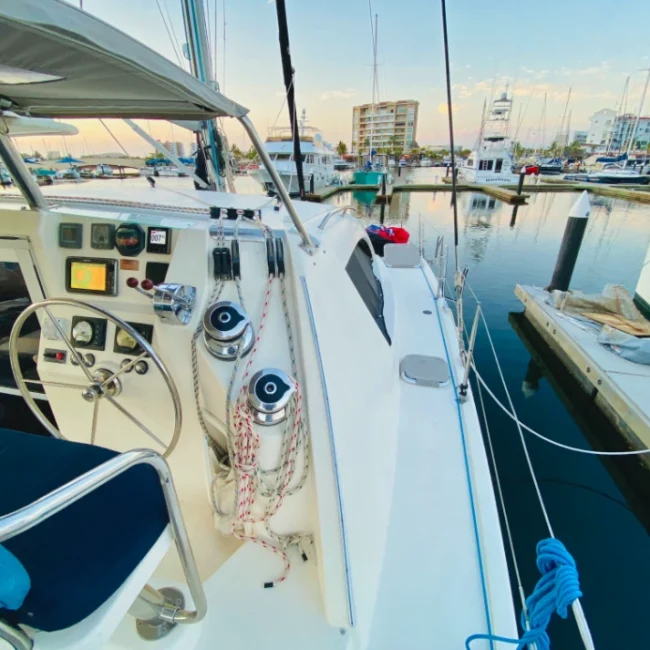

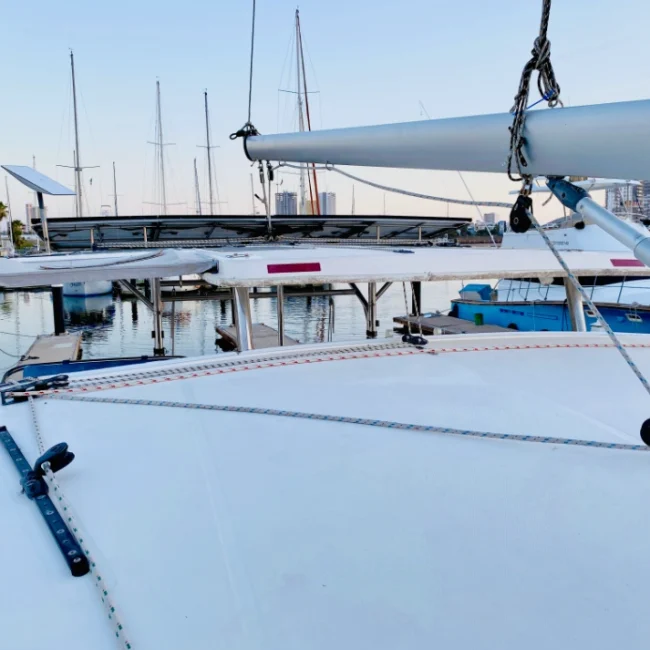

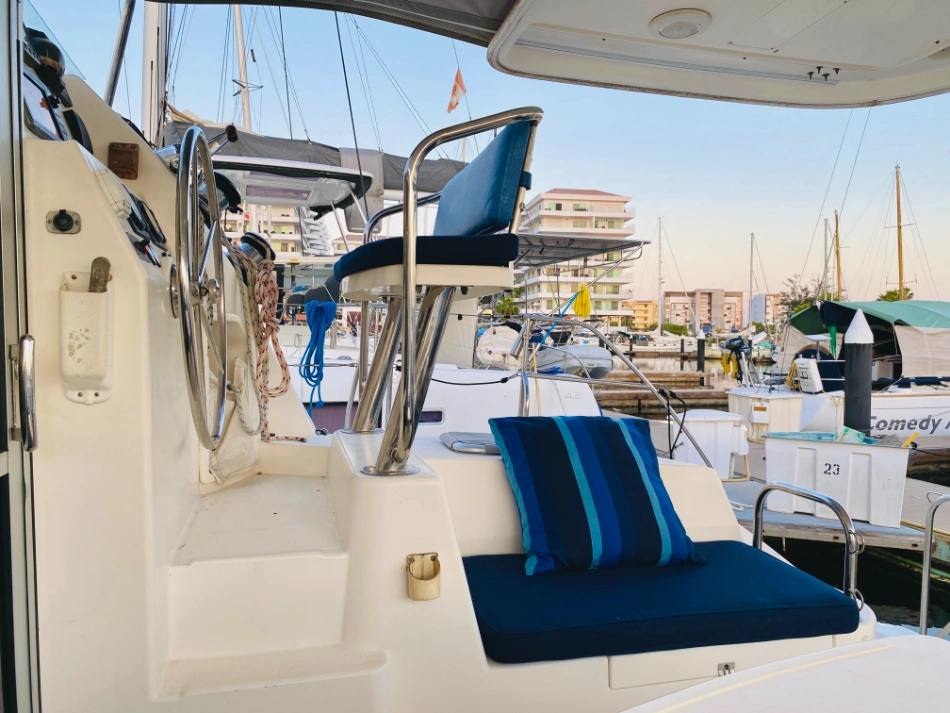

The raised starboard helm station provides excellent visibility in all directions, allowing the skipper to easily monitor sail trim, surrounding traffic, and the vessel’s course. All primary sail controls are conveniently led to the helm, making the yacht straightforward to operate whether sailing short-handed, as a couple, or even solo.
A powerful, fully-battened mainsail paired with an efficient overlapping genoa provides an excellent balance of performance and ease of handling. Fixed protective skegs offer additional peace of mind by helping shield both the sail drives and rudders during accidental groundings or encounters with shallow water.
The helm area itself is thoughtfully designed, featuring easy access from the cockpit and a comfortable two-person helm seat. Navigation instruments and sail controls are positioned within easy reach, allowing the helmsman to remain secure and in command while underway.

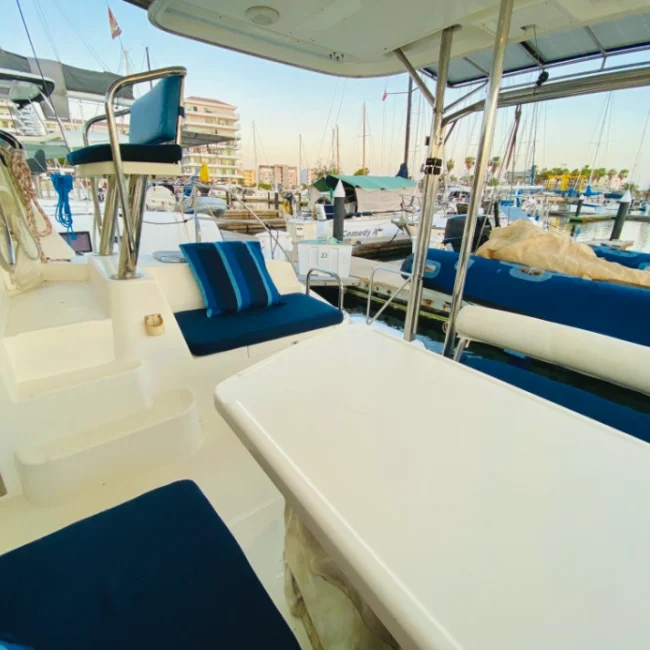

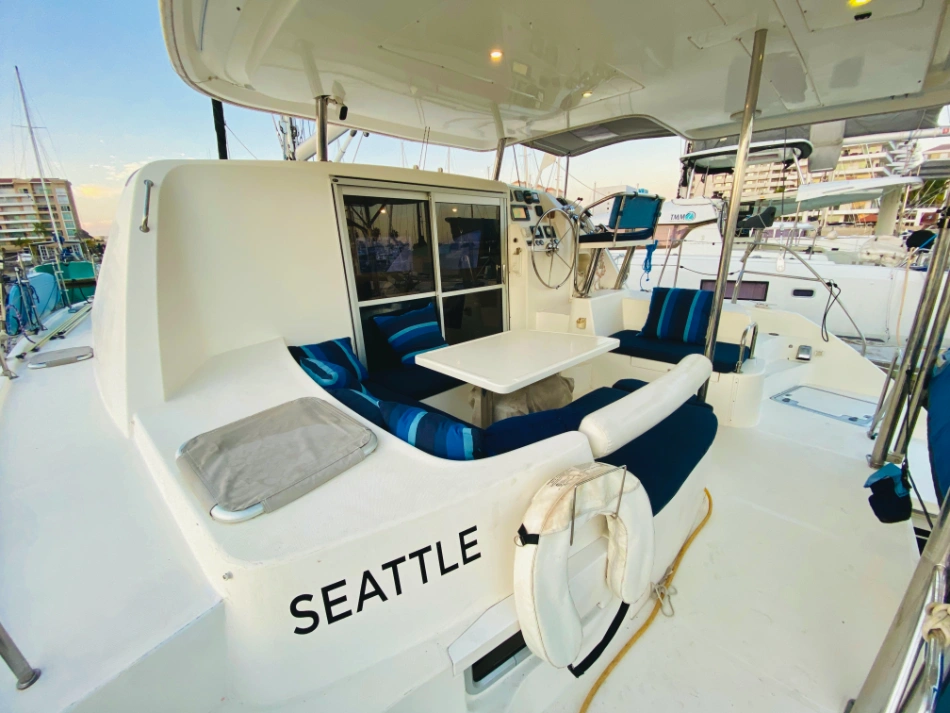

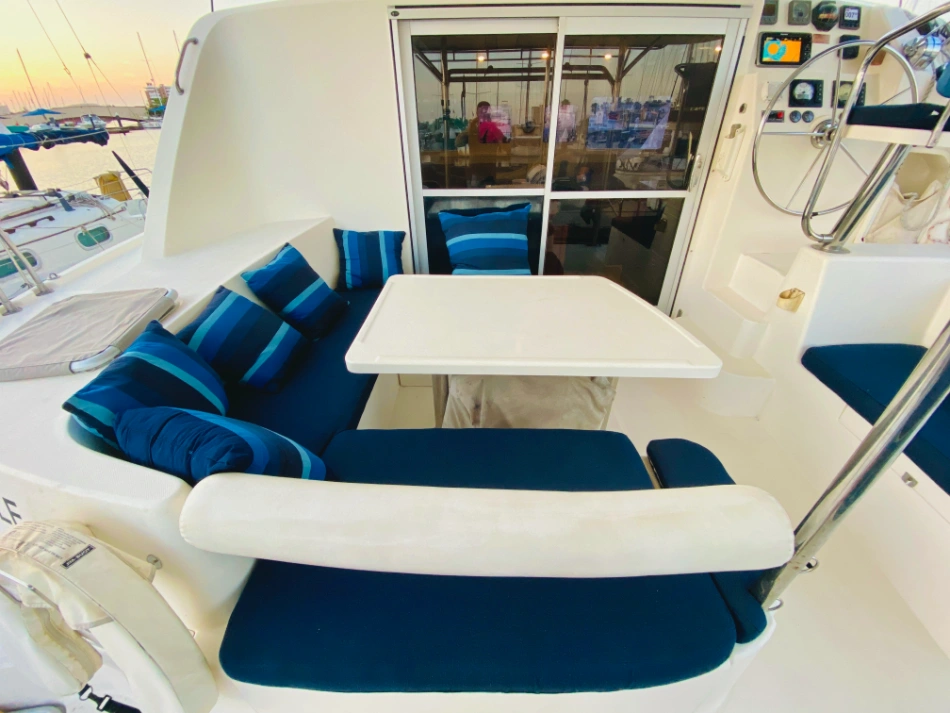

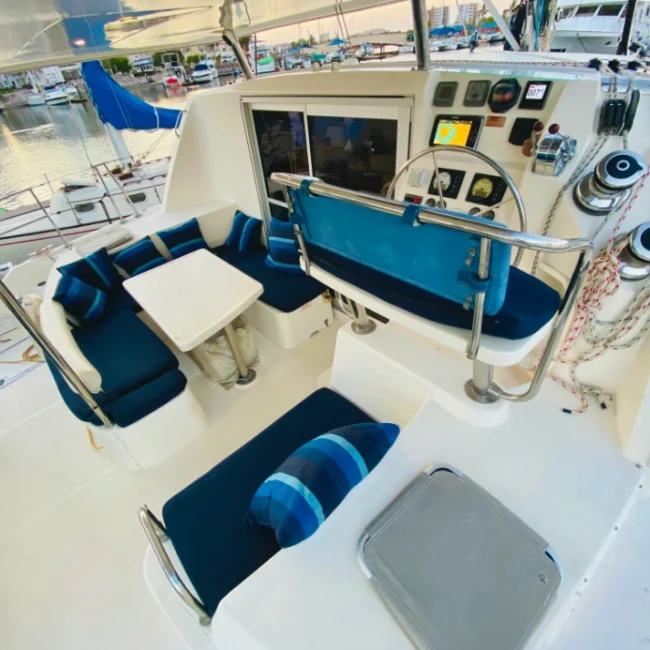

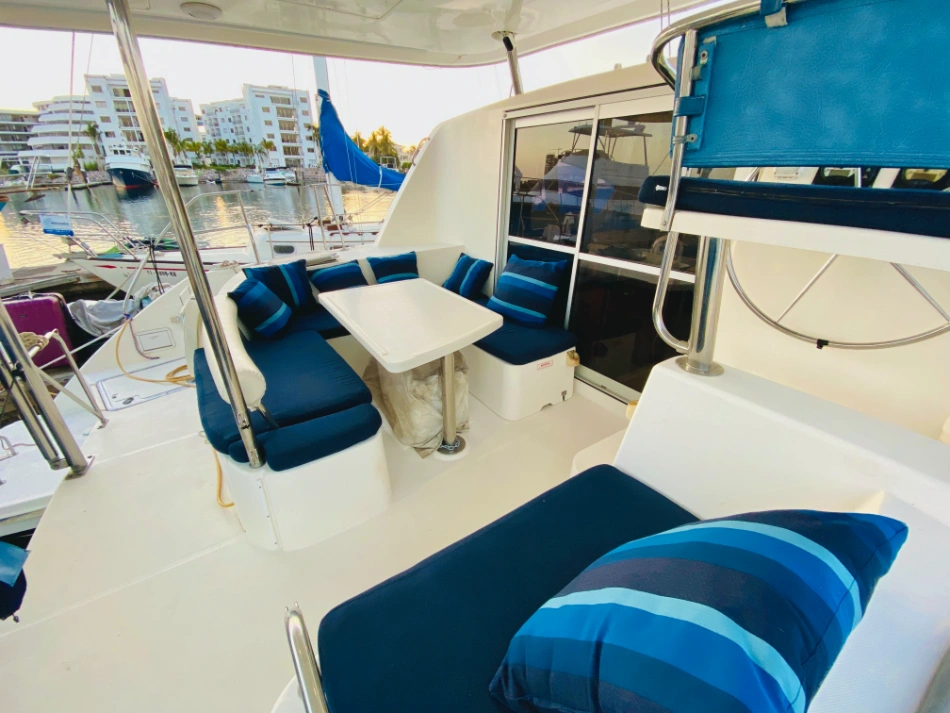

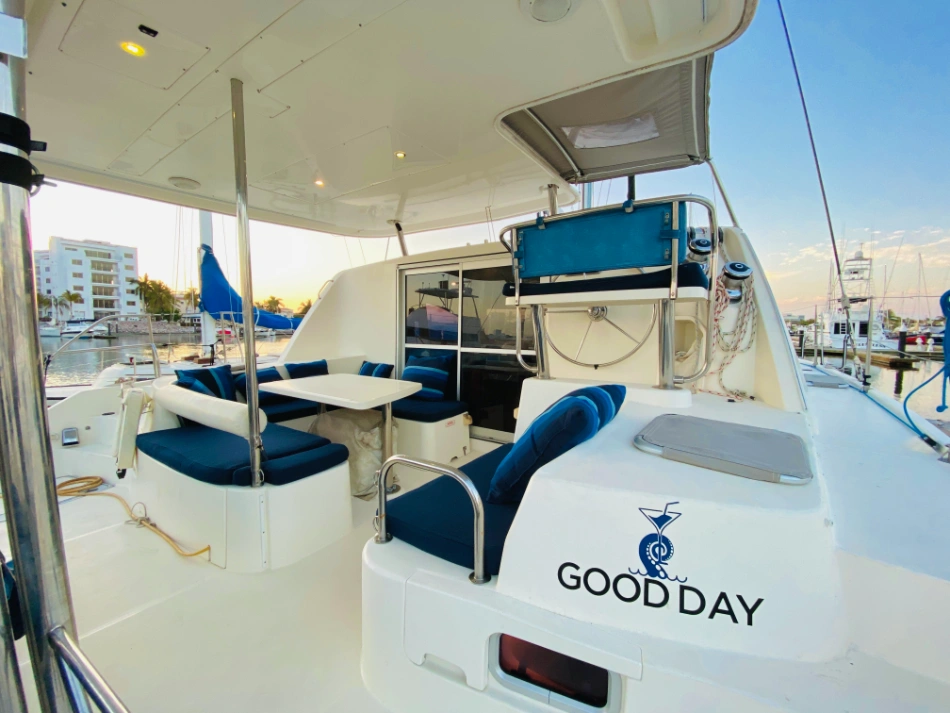

Cockpit & Outdoor Living

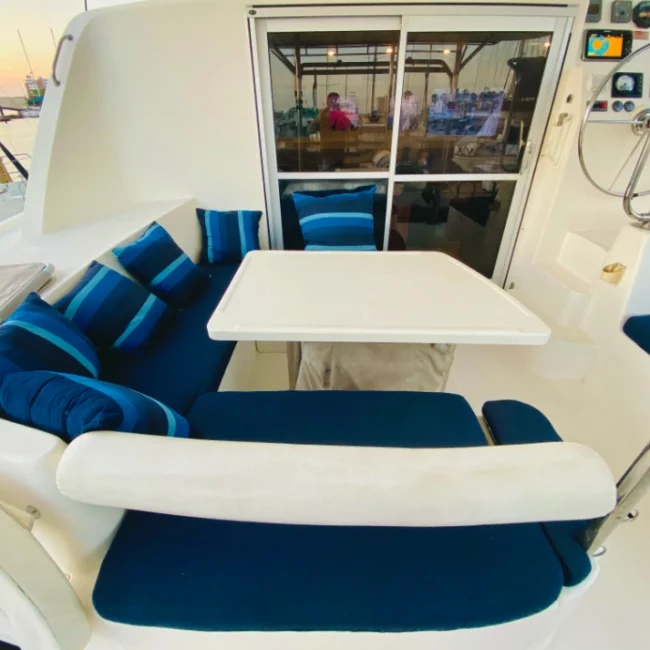

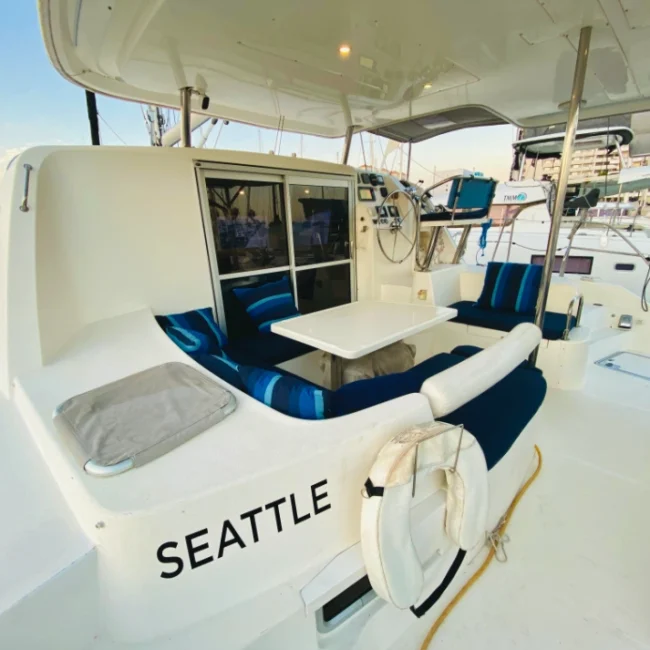

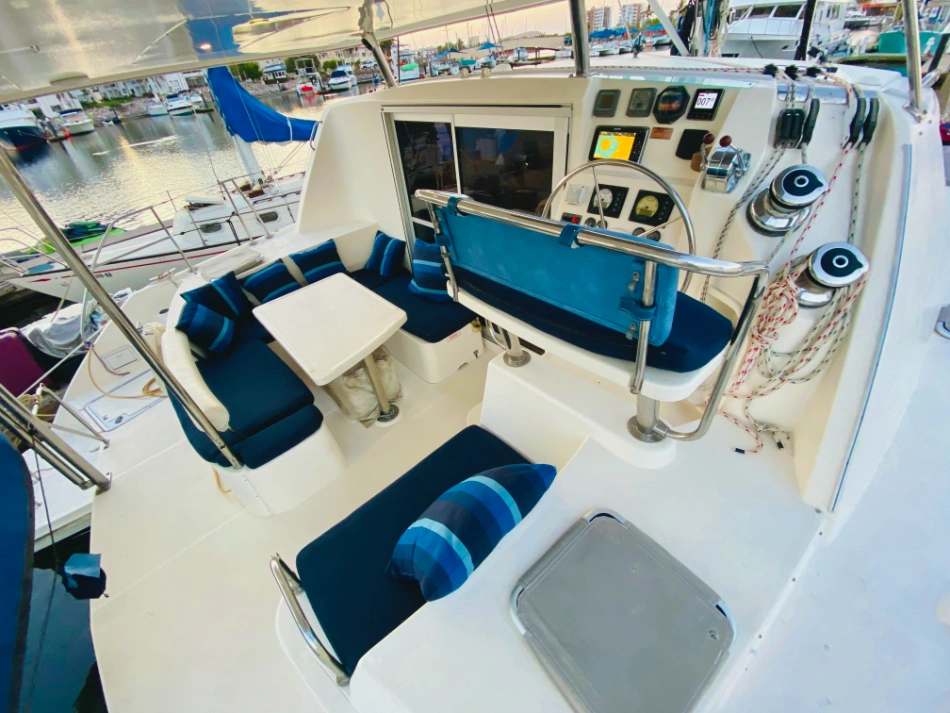

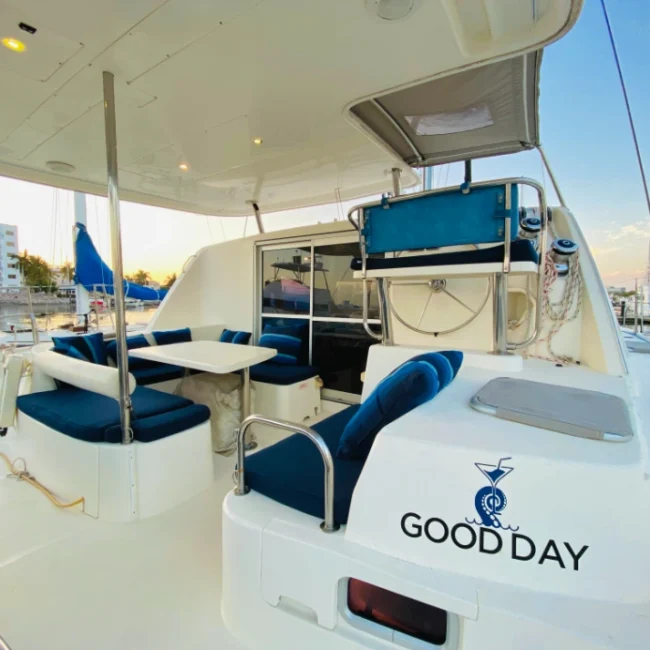

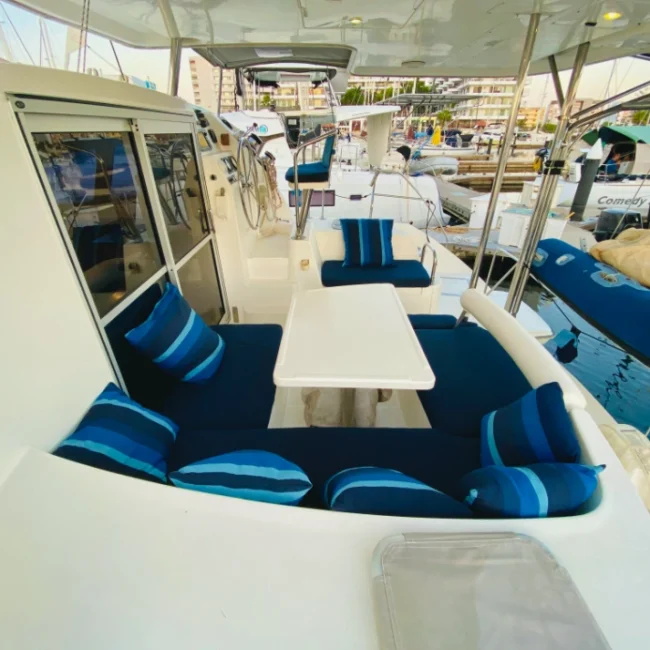

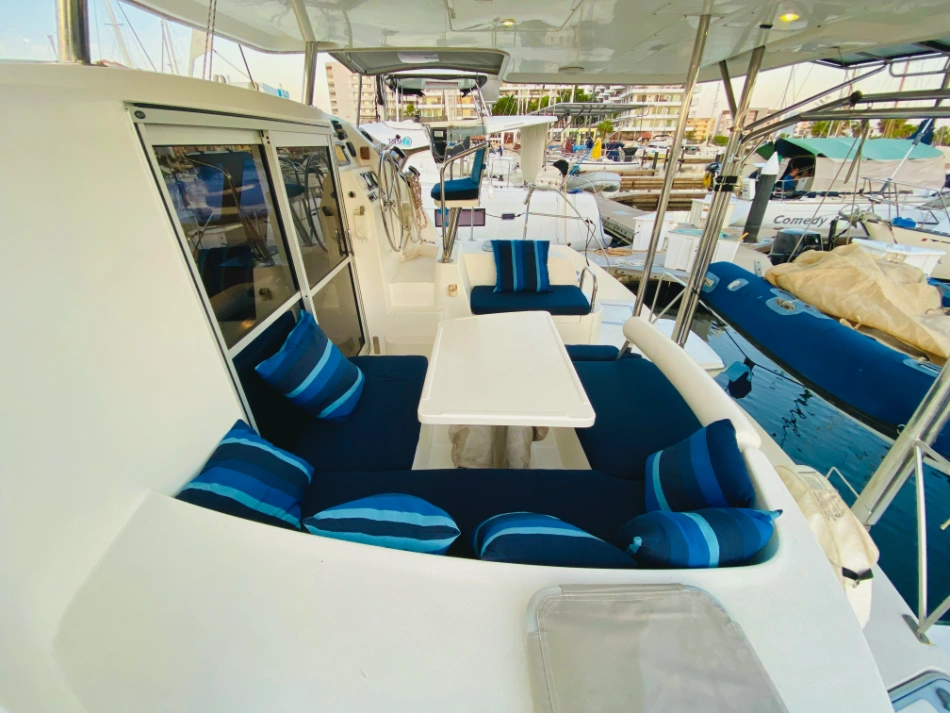

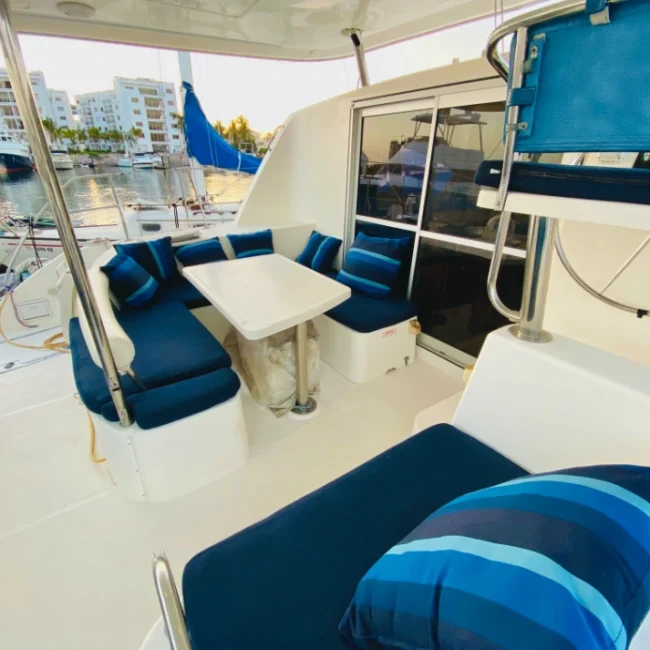

The spacious aft cockpit is designed as an extension of the interior living space and serves as the primary gathering area aboard. Comfortable seating surrounds a large dining table capable of accommodating up to eight guests, creating an ideal setting for alfresco meals, entertaining, or relaxing at anchor.
A large integrated cooler keeps refreshments close at hand, while the comfortable seating arrangement includes an adjustable backrest that can be positioned forward or aft, providing flexible seating configurations to suit any occasion.

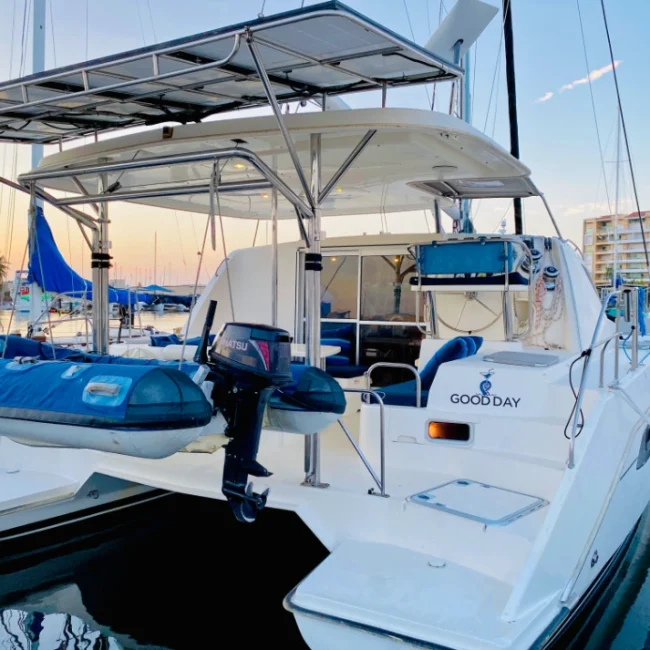

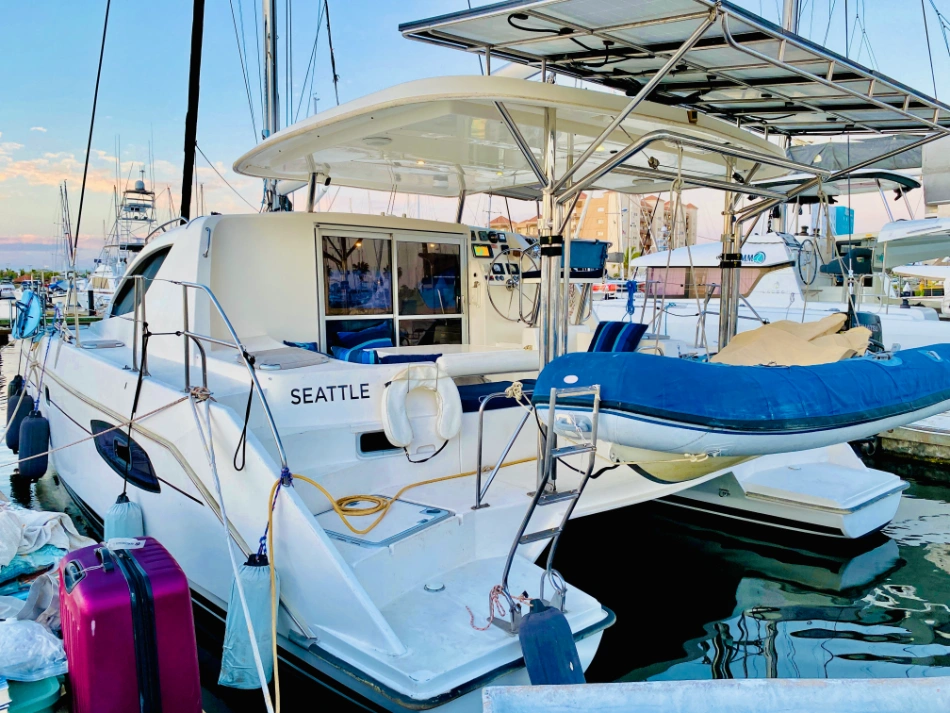

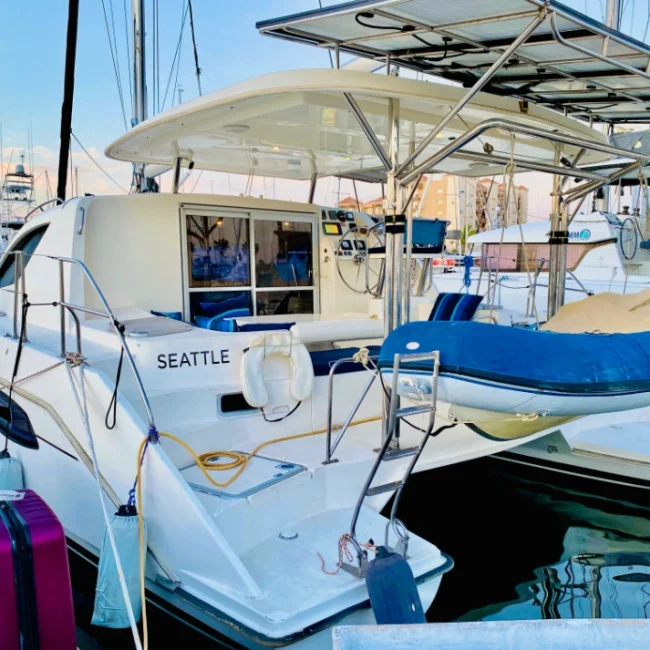

Solar Arch & Dinghy Handling

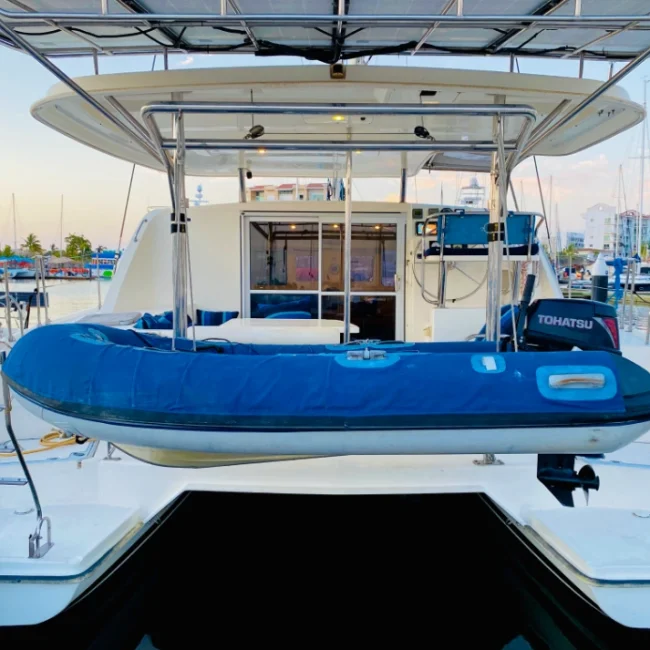

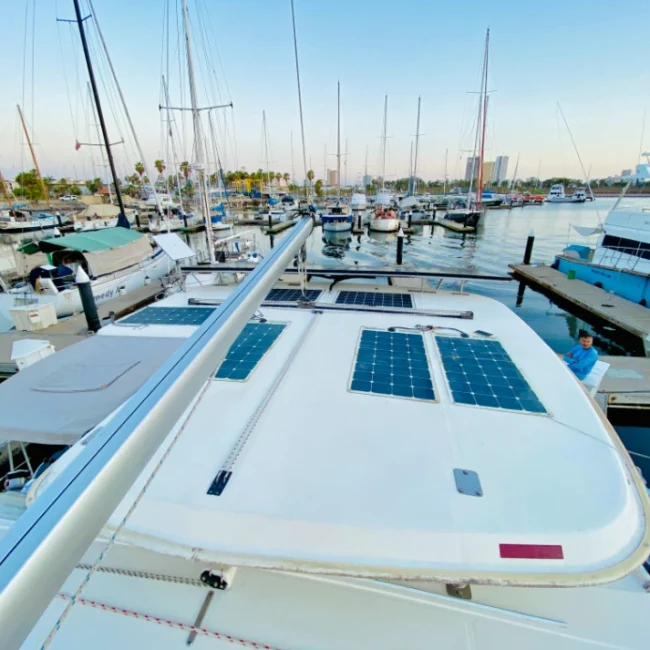

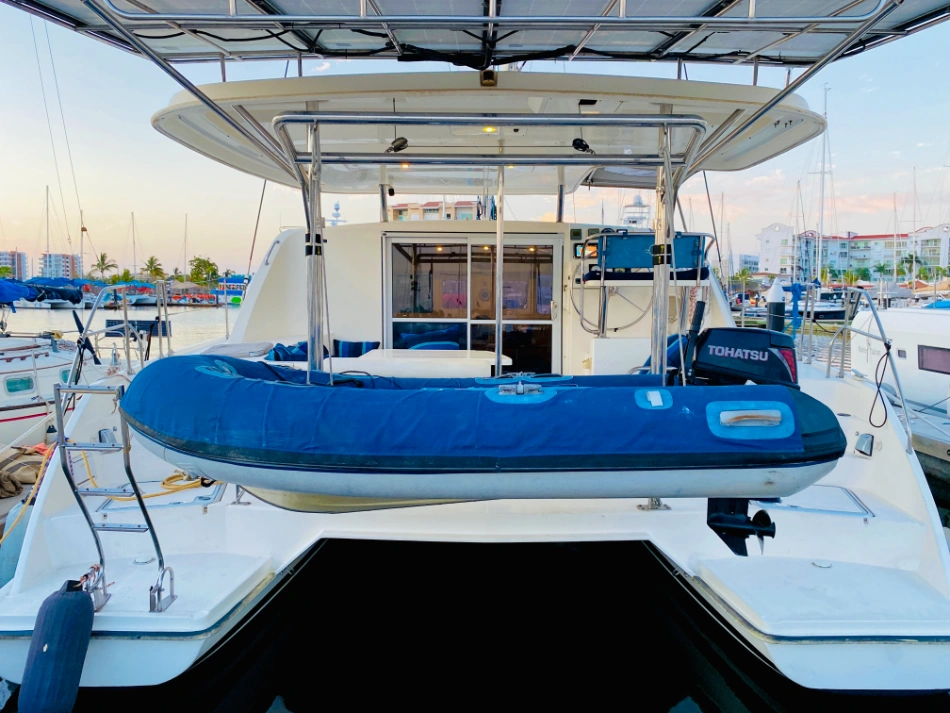

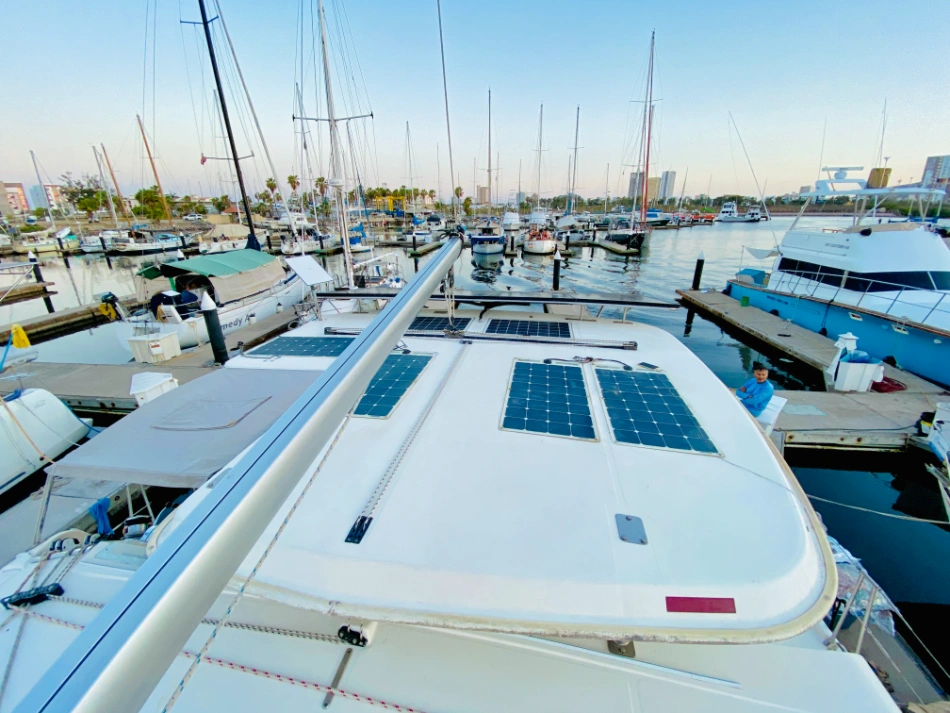

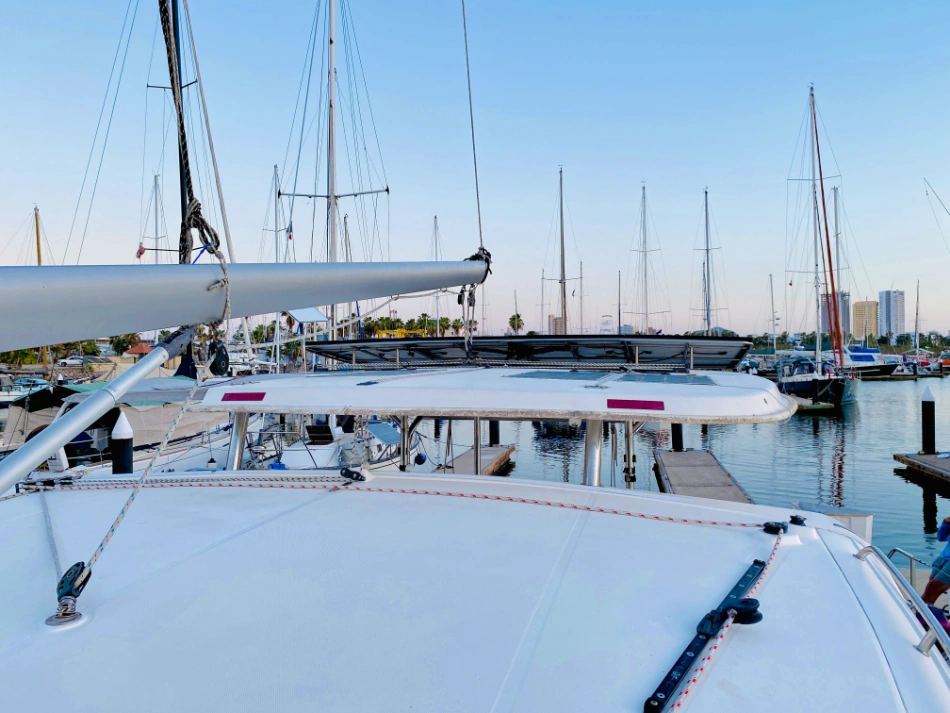

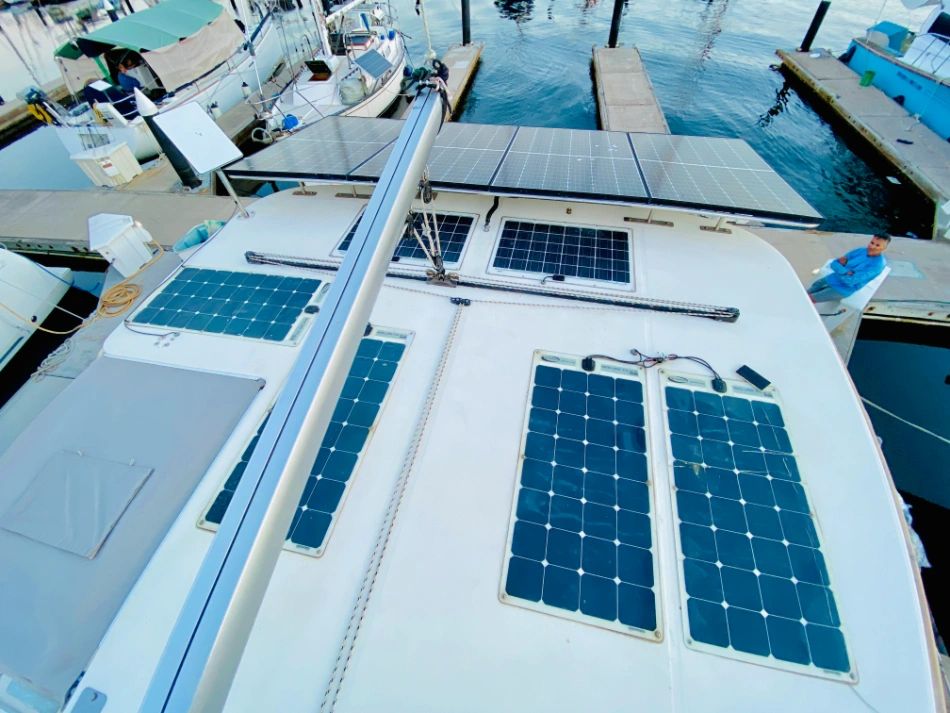

Aft, robust stainless steel dinghy davits make launching, retrieving, and storing the tender simple and secure. Above the davits, a custom stainless steel arch supports an impressive 1,200 watts of solar panels, providing substantial renewable energy generation for extended off-grid cruising.
Beyond supplying power to the vessel’s systems and battery bank, the solar arch also creates valuable shade over the aft deck, enhancing comfort for crew and guests while at anchor or underway in warmer climates.
With its efficient hull design, comfortable sailing characteristics, spacious cockpit, and substantial solar capacity, this Leopard 38 is exceptionally well-equipped for coastal cruising, island hopping, or extended liveaboard adventures.
| Anchors |
Mantus 65 lb/29 kg + 200 ft of chain (NEW 2023) |
| Windlass |
Quick Aleph 1012 10 mm electric windlass with Quick remote & Maxwell helm AutoAnchor 560 V2 (New 2020) |
| Deck Lights |
Yes |
| Deck Washdown |
Yes (at bow) |
| Dinghy |
Highfield CL 310 Aluminum/Hypalon (New 2017) + galvanized Mantus anchor |
| Dinghy Davits |
Yes, electric |
| Outboard |
Tohatsu 18 hp 2-stroke (New 2018) |
| Gates |
Yes (x2) |
| Lifelines |
Yes, stainless steel |
| Hatches |
x10 aluminum-framed acrylic |
| Navigation Lights |
Yes |
| Swim Ladder |
Yes |

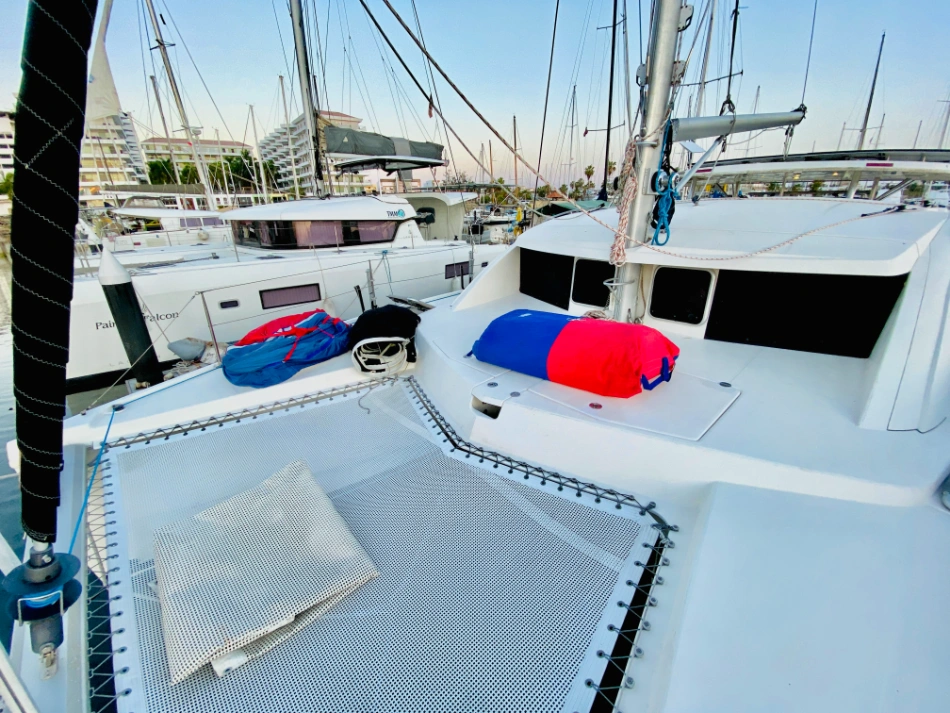

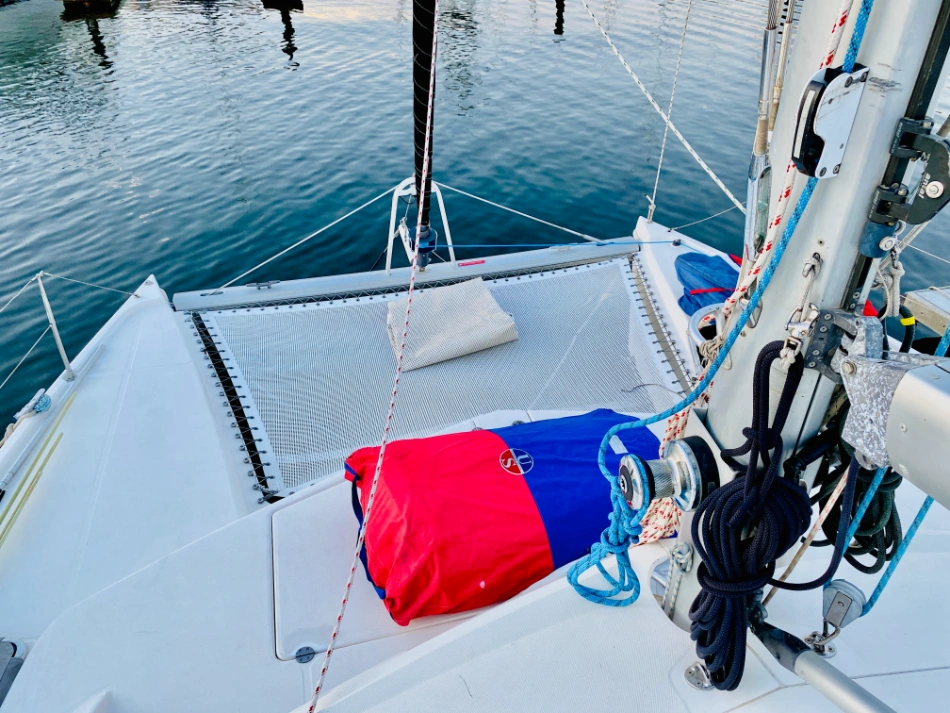

| Other |

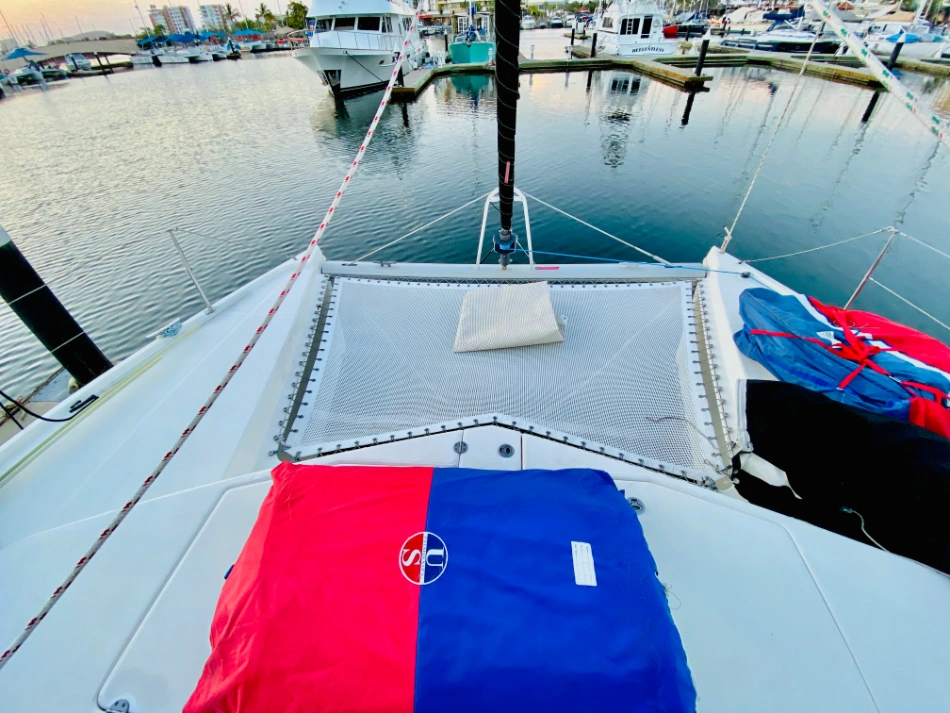

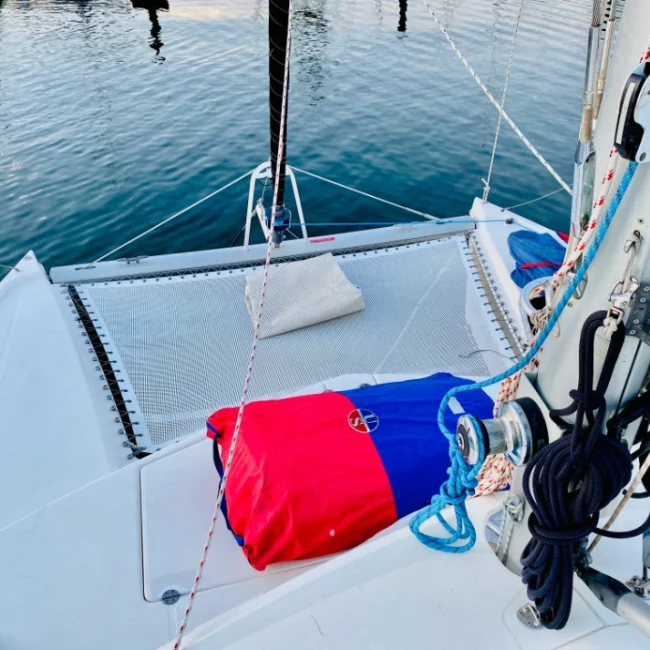

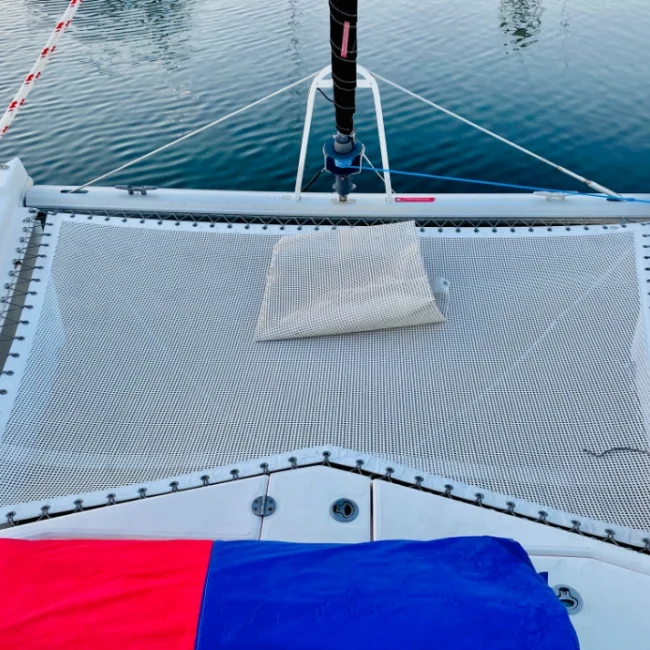

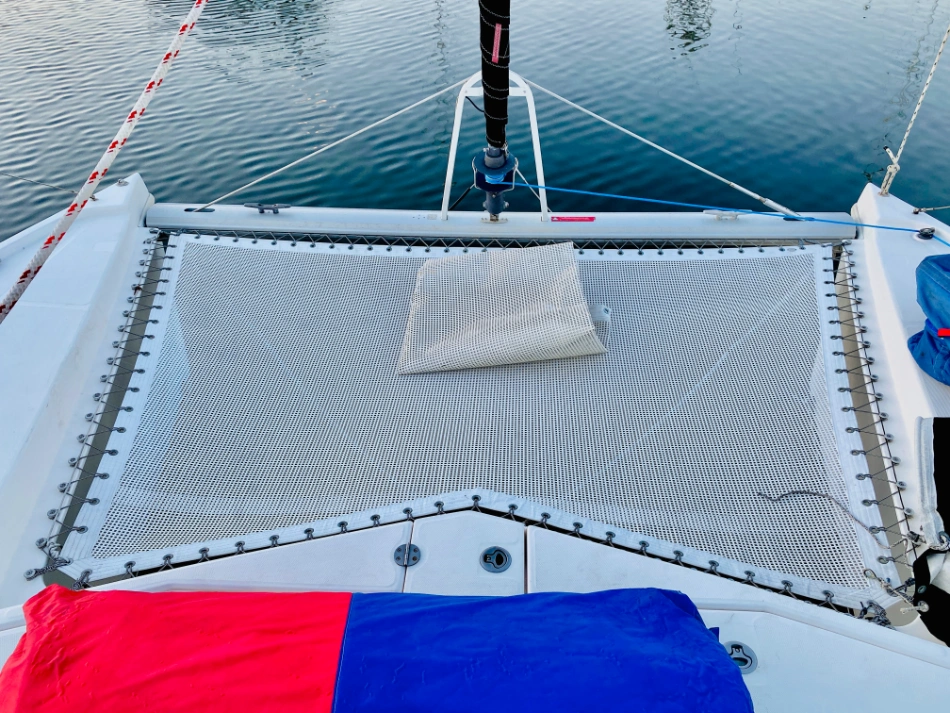

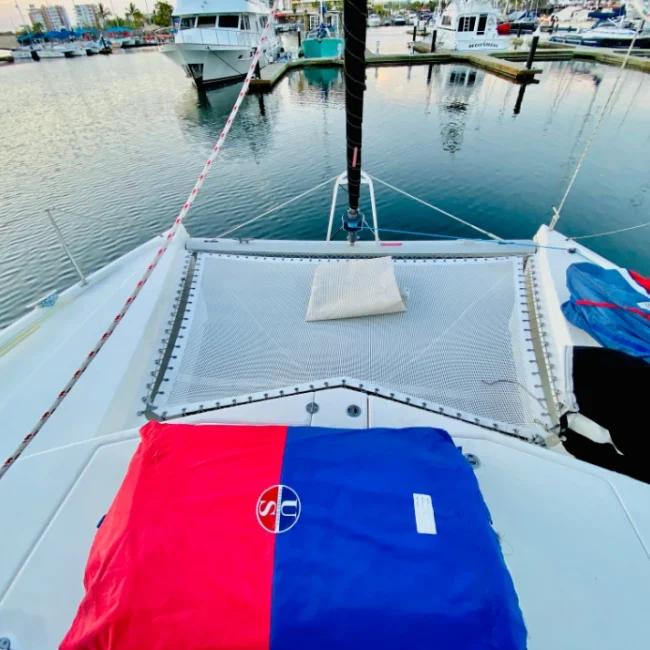

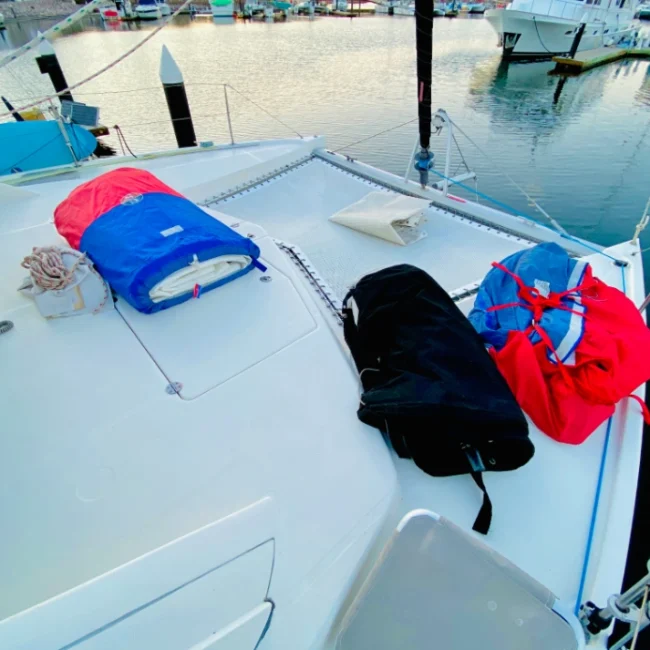

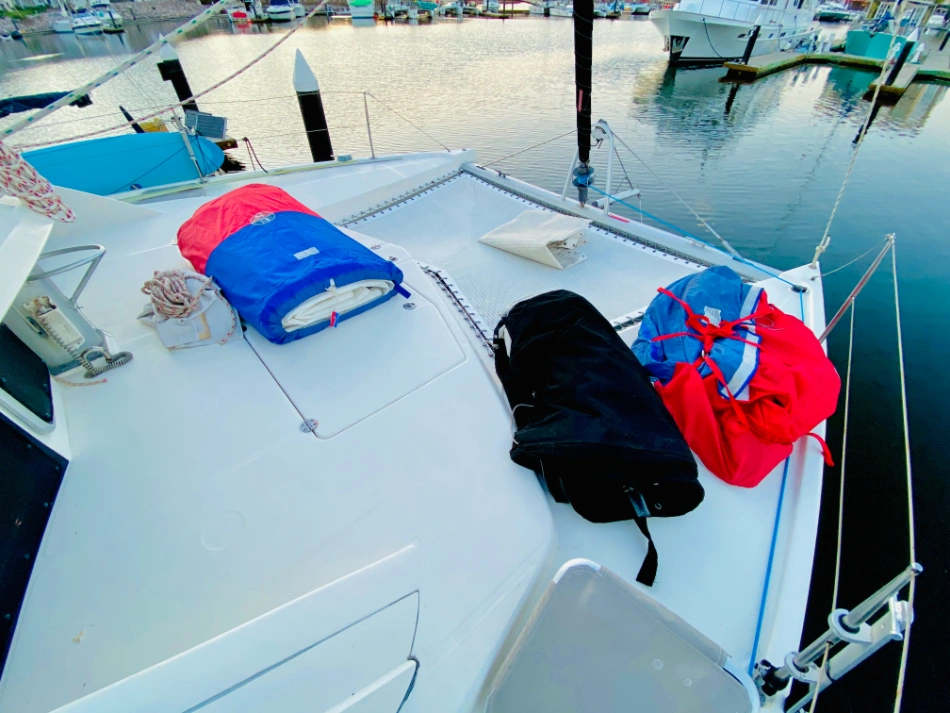

Trampoline (Replaced 2024) |
| Comments |
x4 Dock Lines
x2 Big Ball Fenders
x5 Docking Fenders
x2 Sup Racks |
Covers & Cushions
| Bimini |
Hard top – Fiberglass |
| Cockpit Covers |
Sunbrella Sun Shades (New 2019) |
| Cockpit Cushions |
Yes (NEW 2024) |
| Mainsail Cover |
Stack Pack – black (New 2019) |
| UV Strip on Headsail |
Yes |
| Other |
Window covers (New 2023) |
Mechanical Systems
| Air Conditioner |
x2 Cruisair 16000 BTU A/C units |
| Electric Bilge Pump |
x2 Rule 1100 Automatic – Engine
x2 Rule 2000 Automatic |
| Fire Extinguishing |
x3 |
| Fresh Water Cooling System |
Yes |
| Fuel Filters |
x2 Racor |
| Fuel Shut-off |
Yes |
| Hot Water Heater |
x7 6-Gal tanks |
| Lube Oil System |
Yes |
| Manual Bilge Pump |
x2 |
| Raw Water Sea Strainer |
x2 composite |
| Thru Hulls |
x2 Air Conditioning Out – Bronze – Groco
x1 Watermaker In – Bronze – Groco
x2 Toilet Out – S/S – NT
x2 Toilet In |
| Watermaker |
Spectra Ventura 200-T watermaker (New 2019) |
| Windvane |
Yes |
Safety Equipment
| Lifejackets |
x6 Plastimo Storm 2 150 N |
| Lifesling |
N/A |
| Life Rings |
x1 |
| Life Raft |
Viking 6 person liferaft (Re-certified 2024) |
| Strobe |
Yes |
| EPIRB |
ACR Global Fix V4 (New 2019) |
| Harnesses |
x4 |
| Flares |
Yes |
| Comments |
Medical Kit, Air Horns, Ditch Bag |
